Chevy Transfer Case: What to Know Before You Rebuild or Replace

Your Chevy truck starts, the engine idles smooth, and then you shift into four-wheel drive. Nothing happens. Or worse, you hear a grinding noise that sounds like rocks in a blender. That’s the transfer case talking, and it’s not saying anything good — see our related guide, How to Engage 4-Wheel Drive on a Chevy Blazer (Which Gen?).

This guide covers the Chevy transfer case in plain terms: what fails, why it fails, and what your options are. You’ll learn the difference between a rebuild and a replacement, what parts actually matter, and how to avoid buying the wrong thing. No fluff, just the stuff you need to know before you spend money.

If you drive a 2026-2026 Silverado or Sierra 2500HD/3500 with the Duramax or 8.1L gas engine and an Allison transmission, pay close attention. Your transfer case is a specific unit, and the parts are not interchangeable with the half-ton trucks.

Which Transfer Case Does Your Chevy Actually Have?

Chevy used a few different transfer cases over the years. The most common ones you’ll run into are the NP231, NP246, and the heavy-duty NP261XHD and NP263XHD. The NP261 and NP263 are the ones found behind the Allison 1000 transmission in the 2500HD and 3500 trucks.

The difference between the NP261 and NP263 is subtle. The 261 is an older style with a few internal differences, but both use the same case halves and basic architecture. If you’re looking at parts, many rebuild kits cover both. The key is matching the RPO code on your glovebox. You want either NP1 or NP2, and you need the transmission code to be ML6, MW7, or M74.

Here’s a common mistake: buying a transfer case from a 1500 Silverado. The half-ton trucks use a different input shaft and a different bolt pattern for the transmission. It won’t bolt up. You need the heavy-duty unit, and it’s worth verifying the casting numbers before you order anything.

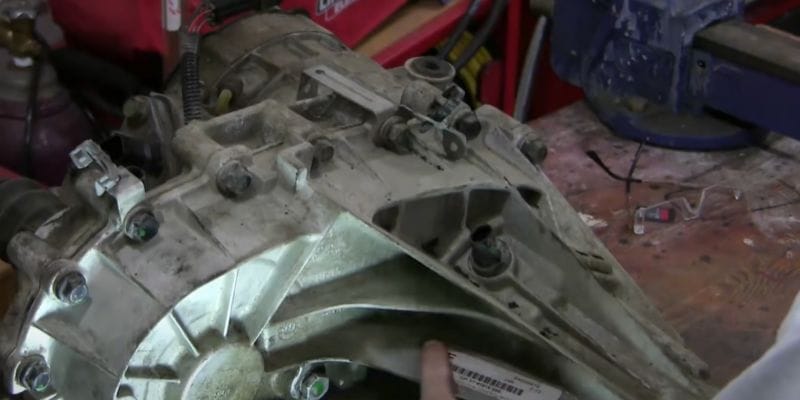

When you’re under the truck, look at the rear case half. The heavy-duty units have a noticeably thicker aluminum housing. The chain is wider, the pump is a 49-spline unit, and the front output shaft bearing is bigger. These are the parts that take abuse when you’re towing or hauling heavy loads.

What Actually Breaks Inside a Chevy Transfer Case

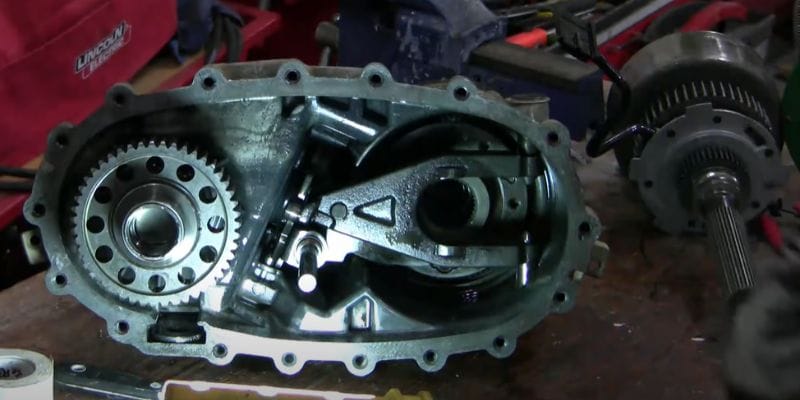

The pump is the most common failure point. The NP261/263 uses a gerotor-style pump that sits on the rear output shaft. It’s a small part, but when it wears, the case doesn’t get enough oil pressure. The chain then runs dry, stretches, and starts slapping the case. You’ll hear a whine at first, then a clunk, then metal shavings in the fluid.

The chain itself is the second thing to go. The factory uses a BorgWarner Morse TEC Hy-Vo chain. It’s a good chain, but it’s not immortal. If you’ve got 150,000 miles of hard use, the chain has stretched. A stretched chain skips teeth on the sprockets, and that’s when you get the jerky engagement in four-wheel drive.

The front output shaft bearing is another weak spot. It’s a ball bearing that takes the load from the front driveshaft. If it’s got play, you’ll feel a vibration at highway speeds. It’s not a hard part to replace, but it requires splitting the case.

One thing that surprises people: the case halves themselves. The aluminum housing can crack, especially around the mounting ears or where the rear case half meets the front. This usually happens from impact damage, not normal wear. If the case is cracked, a rebuild kit won’t help. You need a new or used case half.

So, what does a rebuild actually involve? If you’re doing it yourself, you’re looking at pulling the transfer case, splitting it, cleaning every part, and replacing the chain, pump, bearings, seals, and gaskets. It’s a full day of work. If you’ve never done one, budget for a weekend and a good service manual.

For the 2026-2026 heavy-duty trucks, there’s a complete rebuild package that covers both the NP261XHD and NP263XHD. It includes the heavy-duty aluminum rear case half with the pre-installed rear bushing and front output shaft bearing, the BorgWarner Hy-Vo chain, and the 49-spline pump assembly. That’s the core of what wears out, all in one box.

Rebuild vs. Replace: Which Way Should You Go?

This is the question that matters. A remanufactured transfer case from a parts store runs anywhere from $800 to $1,500, depending on the brand and core charge. A rebuild kit with the parts mentioned above is significantly less, but it assumes your case halves and internal sprockets are still in good shape.

Here’s the honest breakdown:

Factor	Rebuild (DIY Kit)	Remanufactured Unit
Cost	Lower (parts only)	Higher (parts + labor + core)
Time	8-12 hours your own labor	4-6 hours if you swap it yourself
Skill Needed	Mechanical experience, torque wrench, press	Basic hand tools, jack, patience
Risk	You might miss a worn part	Usually tested, but core condition matters
Best For	Known failure (pump/chain) on good case	Case damage, unknown internal wear, no time

My opinion? If the case is original and you know the failure was a pump or chain, rebuild it. You’ll save money and you know exactly what’s going back in. If the case is leaking from a crack, or if you’ve already run it dry and overheated everything, replace it. You don’t want to rebuild a case with a warped housing.

One thing to check before you order anything: the input spline count. The Allison transmission uses a 32-spline input, but the transfer case side is different. The NP261/263 uses a specific input gear. The rebuild kit I mentioned includes the 49-spline pump, which is the correct one for these units. Double-check that before you buy a used transfer case from a junkyard, because the 1500-series units use a different pump.

Fluid, Maintenance, and the Little Things That Matter

Transfer case fluid is not engine oil. You can’t just dump in whatever is on sale. The NP261/263 calls for a specific fluid, usually GM Auto-Trak II or a comparable fluid that meets the spec. Using the wrong fluid, like standard ATF, can cause the clutch plates to chatter and wear out the pump faster.

How often should you change it? GM says every 50,000 miles for normal use. If you tow, plow, or run in four-wheel drive often, cut that in half. It’s a cheap job: drain the old fluid, refill through the fill plug. The capacity is usually around 2 quarts, but check your manual. Overfilling is just as bad as underfilling because it creates pressure that blows out the seals.

Another overlooked item: the shift motor or encoder motor. On the electronic shift units, the motor can fail or get corroded. If you turn the dial and nothing happens, it might not be the transfer case internals. It could be a $50 motor or a wiring issue. Test the motor before you tear the whole case apart. A simple voltage check at the connector can save you hours.

Also, check the breather tube. It’s a small rubber hose that vents the case. If it’s clogged or pinched, pressure builds up and pushes fluid out the seals. That’s a common cause of a mysterious leak that only happens on the highway. Clear it out, and the leak often goes away.

If you’re dealing with electrical codes like P0700 or P0327 on the Silverado, those are often related to the transmission or engine sensors, not the transfer case directly. But a failing transfer case motor can throw a code that confuses the TCM. Worth checking the P0700 Chevy Silverado guide if you’re chasing a shifting issue that feels like it’s in the drivetrain.

Frequently Asked Questions

How long does a Chevy transfer case last?

With regular fluid changes, 200,000 miles is realistic. The pump is the limiting factor. If you ignore the fluid, you’ll be lucky to see 100,000. The heavy-duty units in the Duramax trucks are generally tougher than the half-ton cases, but they still need maintenance.

Can I drive with a bad transfer case?

Short answer: no. If it’s making noise, the chain or bearings are failing. Driving it will send metal shavings through the pump and into the case, which ruins everything. You’ll also risk binding up the driveline if the case locks up. Tow it or fix it on the spot.

What is the difference between 4HI and Auto on a Chevy transfer case?

4HI locks the front and rear driveshafts together mechanically. Auto mode uses a clutch pack to vary the torque split. It’s fine for slick roads but not for hard off-road use. Running Auto on dry pavement can overheat the clutch. Use 4HI for actual traction, and Auto only for mixed conditions.

Why does my transfer case grind when shifting into 4LO?

Usually, it’s because the truck isn’t fully stopped, or the transmission is still in gear. You need to be in neutral with your foot on the brake. If it grinds even in neutral, the shift fork or the synchronizer is worn. That’s an internal problem requiring a tear-down.

Do I need a special tool to rebuild a Chevy transfer case?

You’ll need a bearing puller, a press for the output shaft bearings, and a torque wrench. The snap rings are heavy-duty and can be stubborn. A set of case-splitting wedges helps, but you can sometimes use a rubber mallet. It’s not a job for a basic socket set, but it’s not a machine shop job either.

What To Do Next (And What To Avoid)

You’ve got the basics. Here’s the short list of actions that will keep you out of trouble:

• Verify your RPO codes (NP1/NP2) and transmission code before ordering any parts. The 2500HD/3500 parts are not the same as the 1500.
• Change the transfer case fluid every 30,000-50,000 miles. Use the correct spec fluid, not ATF.
• Listen for whine or clunking. That’s the pump or chain failing. Fix it early before it takes out the case.
• If the case is cracked or overheated, skip the rebuild kit and buy a reman unit. Rebuilding a bad case is wasted money.
• Check the breather hose and shift motor before you split the case. They cause symptoms that mimic internal failure.
• Use a complete rebuild kit that includes the case half, chain, and pump. Buying pieces separately often means missing a critical seal or bearing.
• If you’re not confident in your mechanical skills, pay a shop. A botched rebuild costs more than a professional install.

One last tip: when you pull the transfer case, take photos of every step. You’ll thank yourself when you’re putting it back together. And if you’re dealing with other drivetrain codes on the Duramax, the P0016 Chevy guide covers a common timing code that often gets confused with transmission issues. The transfer case is a mechanical unit, but the electronics around it can be just as tricky.

The best fluid for your transfer case is worth reading if you’re still unsure about the spec. It’s a short read that covers the differences between the common fluids on the shelf.
