2026 Ford Fusion Serpentine Belt Diagram and Replacement Guide
A factory 2026 Ford Fusion does not appear to be a standard model, so the correct serpentine belt diagram depends on the actual Fusion year, engine, and accessory layout; match the belt to the underhood routing sticker or VIN-specific parts listing before ordering. A wrong route can shred the belt, overload the tensioner, or leave the engine without charging and cooling. This guide shows how to identify the right routing, replace the belt, and check the tensioner and idler before you start the engine.

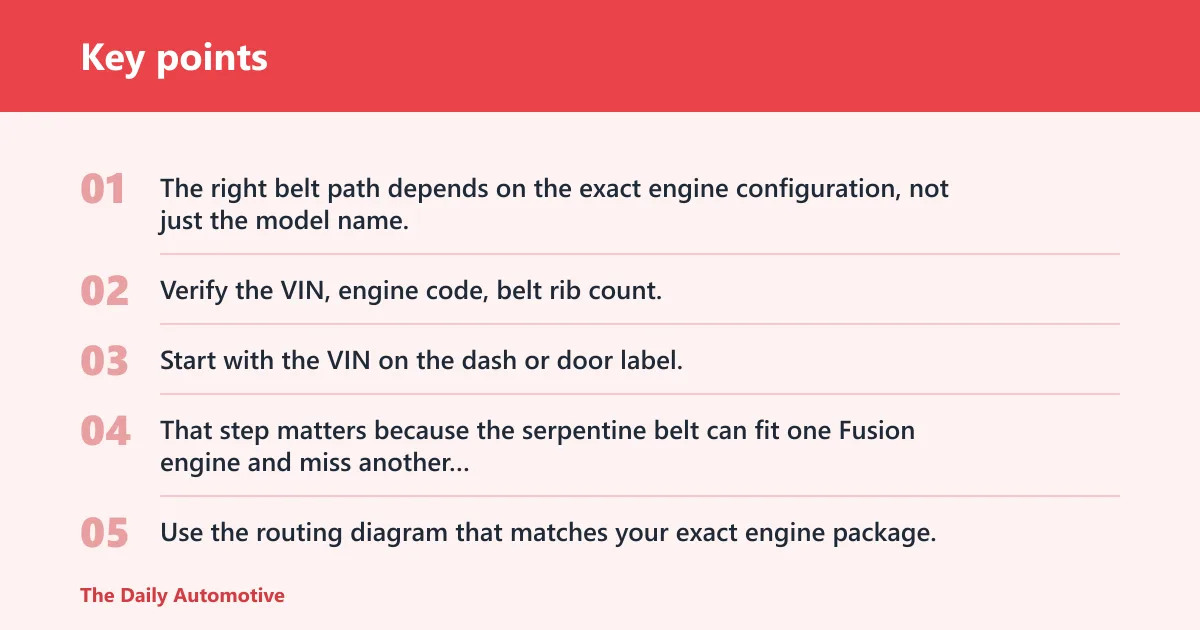

Which belt path fits your Fusion?
The right belt path depends on the exact engine configuration, not just the model name. Verify the VIN, engine code, belt rib count, and belt length before buying a replacement belt, because Ford Fusion accessory drive systems can route the belt differently from one engine option to another.
Verify the engine code and VIN before you order a belt
Start with the VIN on the dash or door label, then match it to the engine code and underhood emissions label if available. That step matters because the serpentine belt can fit one Fusion engine and miss another with a different accessory drive layout.
Use the routing diagram that matches your exact engine package, not a similar trim or neighboring model year. The belt may drive the alternator, power steering, A/C compressor, and, on some layouts, the water pump. That routing must match the pulley count and the side of the pulley the belt contacts. (Wikipedia)
Match rib count and length to the exact engine configuration
Count the ribs on the old belt and compare that count with the replacement listing. Then confirm the belt length. An OEM or equivalent-quality replacement belt should match the VIN and engine application, or it may ride too high, slip, or sit off-center on a pulley.
A common first-timer mistake is ordering the wrong serpentine belt because the trim level and engine size were never checked against the underhood routing diagram. Suppose the old belt is a little glazed and the label is missing; a parts counter still needs VIN, engine code, rib count, and length to avoid a mismatch that can cause repeated belt shedding.
Use the routing diagram for your accessory drive layout
The routing diagram is the belt path around every pulley, including the tensioner and idler positions. The ribbed side of the belt belongs on grooved pulleys, and the smooth back side belongs on smooth pulleys. If that contact pattern is wrong, the belt can chirp, wander, or fray at the edge.
What the serpentine belt does
The serpentine belt is the engine accessory drive belt that powers multiple front-engine accessories from one loop. On a Ford Fusion accessory drive system, it typically turns the alternator and may also drive the power steering pump, A/C compressor, and water pump where applicable. If it fails, accessory output drops fast.
Common wear signs that point to replacement
Look for cracking across the ribs, a shiny rib face, fraying at the edges, and cord exposure. Edge wear matters because it often points to misalignment, a weak tensioner, or a rough idler pulley rather than simple age alone.
Repeated chirping, squeal, or belt dust is another warning sign. If the belt has to be tightened by force, or if it keeps shedding material, the problem may be the tensioner, an idler, or pulley alignment, not only the belt itself.
What belt noise often means
A brief squeal on cold start can mean slip, but repeated noise under load is more concerning. Chirping at idle often points to tracking trouble, while squeal during steering, A/C engagement, or electrical load can point to reduced tension or a pulley that does not spin freely.

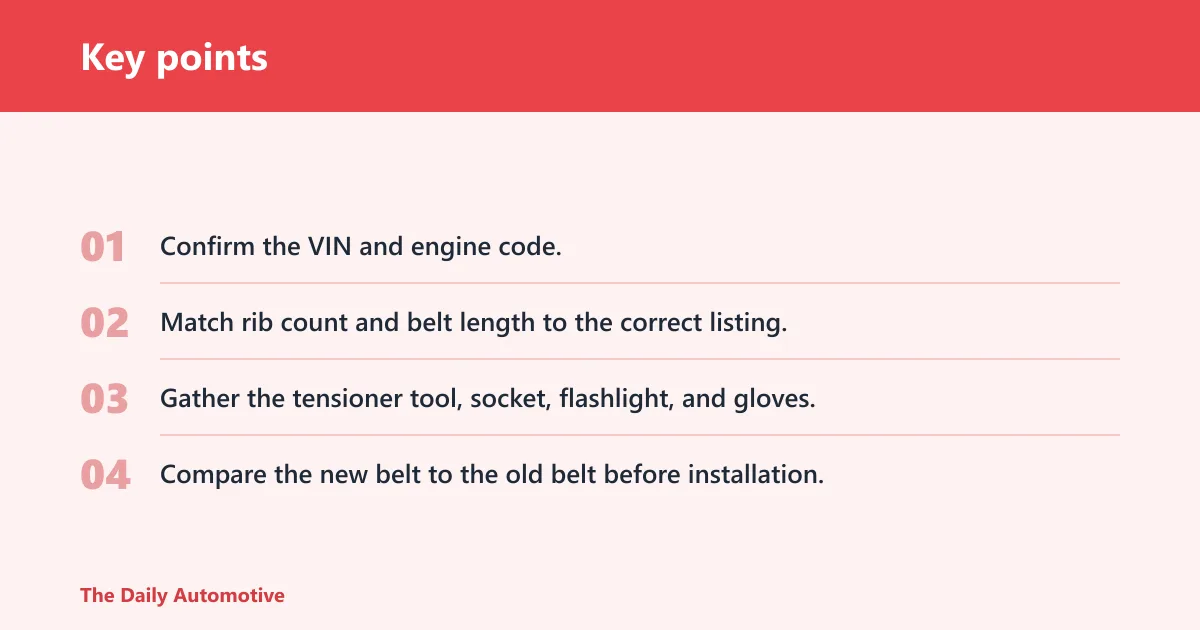

2026 ford fusion serpentine checklist
You do not need a large tool list, but you do need the right parts for the exact engine. A long-handled ratchet or dedicated serpentine belt tool, the correct socket for the tensioner arm, mechanic’s gloves, and a flashlight are the basics for safe removal and routing checks.
Long ratchet or belt tool
A long-handled ratchet or dedicated serpentine belt tool gives enough reach to move a spring-loaded automatic tensioner. The longer handle helps keep steady pressure on the arm instead of forcing the belt over a pulley.
Correct socket for the tensioner arm
The socket size for the tensioner arm varies by engine. Check the tensioner head before you begin so you do not strip it or round it off. A loose-fitting socket can make controlled release difficult and can damage the fastener surface.
Flashlight, gloves, and the right replacement belt
A flashlight helps you trace the routing path and inspect pulley grooves. Gloves protect your hands from sharp edges and hot components. The replacement belt should match rib count and length for the VIN and engine configuration, and OEM or equivalent quality is commonly recommended.
- Confirm the VIN and engine code.
- Match rib count and belt length to the correct listing.
- Gather the tensioner tool, socket, flashlight, and gloves.
- Compare the new belt to the old belt before installation.
How do you release belt tension?
Release belt tension by rotating the spring-loaded tensioner in the correct direction, then slip the belt off a smooth-access pulley. Do not pry on the belt or force it across pulley edges. If the tensioner binds, feels rough, or does not return smoothly, it needs inspection before reassembly.
Locate the spring-loaded tensioner
Find the automatic tensioner first and identify the square drive, hex, or bolt head used to move it. The arm is spring-loaded, so it resists movement and returns with force. Keep fingers clear of the pinch points.
Move the tensioner in the correct direction
Use steady pressure to rotate the arm just enough to unload the belt. The release direction varies by engine configuration, so follow the underhood routing sticker or service information for that specific layout. Watch the belt path while you move the arm.
Remove the belt without forcing any pulley
Slip the belt off one accessible pulley, then unwind it from the others in order. Do not force the belt over a pulley lip. If the belt resists, the tensioner may not be fully relieved or the routing may be wrong.

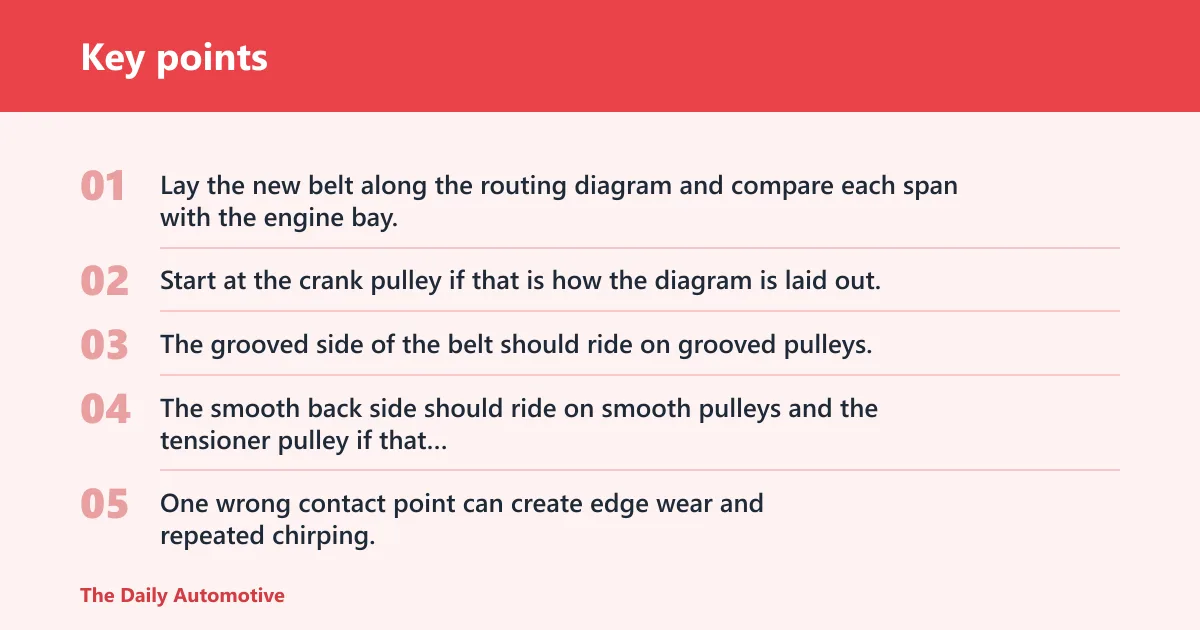

Belt routing checklist
Before the new belt goes on, trace the full path pulley by pulley. Confirm which pulleys are grooved and which are smooth. The belt must sit flat on every contact surface, with no twist and no crossed section.
Follow the path around every pulley in order
Lay the new belt along the routing diagram and compare each span with the engine bay. Start at the crank pulley if that is how the diagram is laid out, then work around the alternator, A/C compressor, idler, tensioner, and any water pump pulley used in that engine.
Confirm grooved side and smooth side contact
The grooved side of the belt should ride on grooved pulleys. The smooth back side should ride on smooth pulleys and the tensioner pulley if that design uses a smooth surface. One wrong contact point can create edge wear and repeated chirping.
Check pulley alignment before reinstalling
Look straight across the pulley faces. A pulley that sits forward, rearward, or at an angle can make the belt walk off-center. If the belt path shows edge wear or the belt keeps shedding, inspect alignment before blaming the belt.
Picture a belt that looks fine at idle but squeals every time the A/C compressor cycles on. If the routing is correct and the belt still chirps, the tensioner spring may be weak or the idler pulley may have drag. That is a clue, not a nuisance.
Should you replace the tensioner too?
Replace the tensioner or idler pulley when either part feels rough, noisy, loose, or seized. A worn belt can be the symptom, but a weak spring or a pulley bearing that drags will shorten the life of the new belt and can cause repeated shedding.
Spin test the idler and tensioner pulleys
With the belt removed, spin the idler pulley and the tensioner pulley by hand. They should turn smoothly with no grinding, clicking, or side-to-side wobble. A pulley that feels gritty or wobbly should be replaced, not reused.
Replace parts that feel rough, noisy, or loose
The tensioner is a spring-loaded automatic unit, so check both spring force and pulley condition. If the arm moves unevenly, sticks, or returns weakly, replace it. If the idler pulley is noisy or has visible play, replace it at the same time.
Use repeated squeal or edge wear as a warning sign
Repeated squeal, chirping, or edge wear often points to misalignment, weak tension, or a pulley bearing issue. A new belt alone may quiet the noise briefly, but the same problem usually comes back if the tensioner or idler is not addressed.
Replacement belt checklist
This checklist helps you confirm the right parts and the right installation before the engine starts. Use it as a final pass so the replacement belt, tensioner, and routing match the exact engine configuration.
| Engine verification | Belt rib count | Routing confirmation | Tensioner release direction | Pulley spin test | Post-start noise check |
|---|---|---|---|---|---|
| VIN, engine code, and underhood label match the vehicle | Count the ribs on the old belt and match the new belt listing | Trace every pulley and confirm smooth-side versus grooved-side contact | Use the service-correct direction for that engine’s tensioner arm | Idler and tensioner spin smoothly with no noise or wobble | Start briefly and confirm tracking, no squeal, and no belt walk |
| Do not buy by model name alone | Verify belt length with the exact engine application | Include tensioner and idler positions in the path check | Relieve spring pressure slowly and keep hands clear | Replace any pulley that feels rough, loose, or seized | Shut down if the belt tracks off-center or makes noise |
How do you replace the serpentine belt on a Ford Fusion?
Replacement follows a simple order: verify the exact engine, release tension, remove the old belt, inspect the pulleys, route the new belt, then start the engine briefly for a final check. The important part is accuracy. A correct-looking belt is not enough if the routing or part number is wrong.
Step-by-step replacement
- Confirm VIN, engine code, rib count, and belt length.
- Photograph or trace the routing diagram before removal.
- Rotate the tensioner in the correct direction and remove the old belt.
- Spin the idler and tensioner pulleys by hand and replace any rough parts.
- Route the new belt around every pulley in the correct order.
- Release the tensioner slowly and confirm the belt seats fully in each groove.
- Start the engine briefly and check for tracking, noise, and movement.
Say your Fusion has a belt that is cracked at 90,000 miles and the idle pulley feels smooth, but the tensioner arm snaps back weakly. A belt-only repair may not last. Replacing the tensioner at the same time can prevent another teardown.
How much does a serpentine belt replacement cost?
Cost depends on parts and labor, but the spread usually falls into three buckets: belt only, belt plus tensioner or idler, and shop labor. Belt-only repairs are the cheapest, while adding a tensioner or idler raises the parts total and labor time.
Cost breakdown
| Repair type | Typical parts cost | Typical labor cost | Notes |
|---|---|---|---|
| Belt only | About $25 to $60 | About $80 to $180 | Best when pulleys and tensioner test clean |
| Belt plus idler or tensioner | About $90 to $250 | About $80 to $180 | Common when noise, rough spin, or wobble shows up |
| Belt plus tensioner and idler | About $140 to $350 | About $100 to $220 | Best when wear, chirping, or edge damage suggests a system issue |
Those figures are common parts-and-labor ranges, not fixed quotes. Dealer pricing, engine layout, and access time can move the total up or down. The key is to price the correct belt by VIN before you compare repair options.
What happens if the serpentine belt breaks while driving?
If the serpentine belt breaks while driving, the engine loses the accessories that depend on it. Charging stops, steering effort can rise on hydraulic systems, and cooling can suffer where the water pump is belt-driven. Shut the engine down quickly to avoid overheating or a dead battery.
Why the failure is urgent
A broken belt can strand the vehicle fast. Warning lights may appear, steering can get heavy, and temperature can rise if the water pump stops moving coolant. If the belt has already shredded or walked off a pulley, do not keep driving to “see what happens.”
Frequently asked questions
What is the serpentine belt diagram for a 2026 Ford Fusion?
A factory 2026 Ford Fusion does not appear to be a standard model, so there is no universal 2026 diagram to follow. The correct belt path depends on the actual Fusion year, engine code, and accessory drive layout, so you need the VIN-specific routing sticker or parts catalog entry for the exact vehicle.
How do I release the belt tensioner on a Ford Fusion?
Fit the correct socket or belt tool to the tensioner arm and rotate it in the service-correct direction to unload the belt. Move it slowly and only far enough to slip the belt off a pulley. If the arm binds, the tensioner may need replacement.
What symptoms mean the serpentine belt is worn or slipping?
Cracking, glazing, fraying, edge wear, squeal, and chirping all point toward wear or slip. Repeated belt shedding can also point to misalignment, a weak tensioner, or a rough idler pulley. Noise that returns after replacement usually means another part needs attention.
How can I tell if the belt routing is correct before starting the engine?
Trace the belt against the routing diagram, then confirm that each grooved pulley contacts the grooved side of the belt and each smooth pulley contacts the smooth side. Check that the belt sits fully in every groove, the path is not crossed, and the tensioner is seated properly.
Should I replace the tensioner and idler pulley at the same time?
Replace them when the pulley feels rough, noisy, loose, or wobbly, or when the tensioner spring is weak. A new belt cannot correct a dragging bearing or poor spring pressure. If wear or noise is present, replacing the belt alone is usually a short-term fix.
