Can Car Ac Compressor Be Repaired

Can Car Ac Compressor Be Repaired: Expert Tips & Solutions

Yes, a car A/C compressor can sometimes be repaired, but only when the fault is external or serviceable. Seized internals, metal contamination, or repeated bearing failure usually point to replacement. Miss that call, and you can waste money, contaminate the whole system, or ruin a new compressor. This guide shows which compressor failures are repairable, which need replacement, and which checks prevent a costly misdiagnosis.

When to repair versus replace the compressor

Key points: Can a car AC compressor be repaired?
Recommended gear
Also greatOMT 4 Way Automotive AC Diagnostic Manifold Gauge Set For R134a R410a R22 | Includes R134a Couplers Self-Sealing Piercin
As an Amazon Associate we earn from qualifying purchases. Prices and availability are accurate as of the date shown and are subject to change.

A compressor can be repaired when the fault sits outside the sealed pumping section: a bad clutch, a loose connector, a failed coil, or a leaking shaft seal on a unit that still turns freely. Once the internals seize, score, or shed metal, replacement is usually the right move.

What can be fixed separately?

The compressor clutch can often be serviced on its own if the pulley still spins, the coil has the right resistance, and the clutch gap is out of spec or the coil feed is missing voltage. A shaft seal leak may also be repairable on some models, but only if the compressor body is otherwise healthy and the design allows it.

Many passenger vehicles still get a complete compressor assembly instead of a piecemeal rebuild. That is not a sales trick; it is often faster and safer once labor overlap, contamination risk, and parts availability are counted together.

When replacement is the better call

If the compressor is seized, noisy from internal wear, or full of glitter-like debris, replacement is the safer repair path. Internal damage can send contamination through the condenser, expansion device, and lines, which can turn a “cheap repair” into a repeat failure.

Variable displacement compressors add another wrinkle. On some vehicles, the control valve or electronic control strategy can mimic compressor loss, so the diagnosis has to separate control failure from hard mechanical failure before the compressor is condemned.

Why diagnosis comes first

Low refrigerant charge, a restriction, or an electrical fault can make a good compressor look bad. That is why system pressures, clutch command, and oil condition should be checked before parts are ordered. A wrong diagnosis can create a second repair bill and leave the root cause untouched.

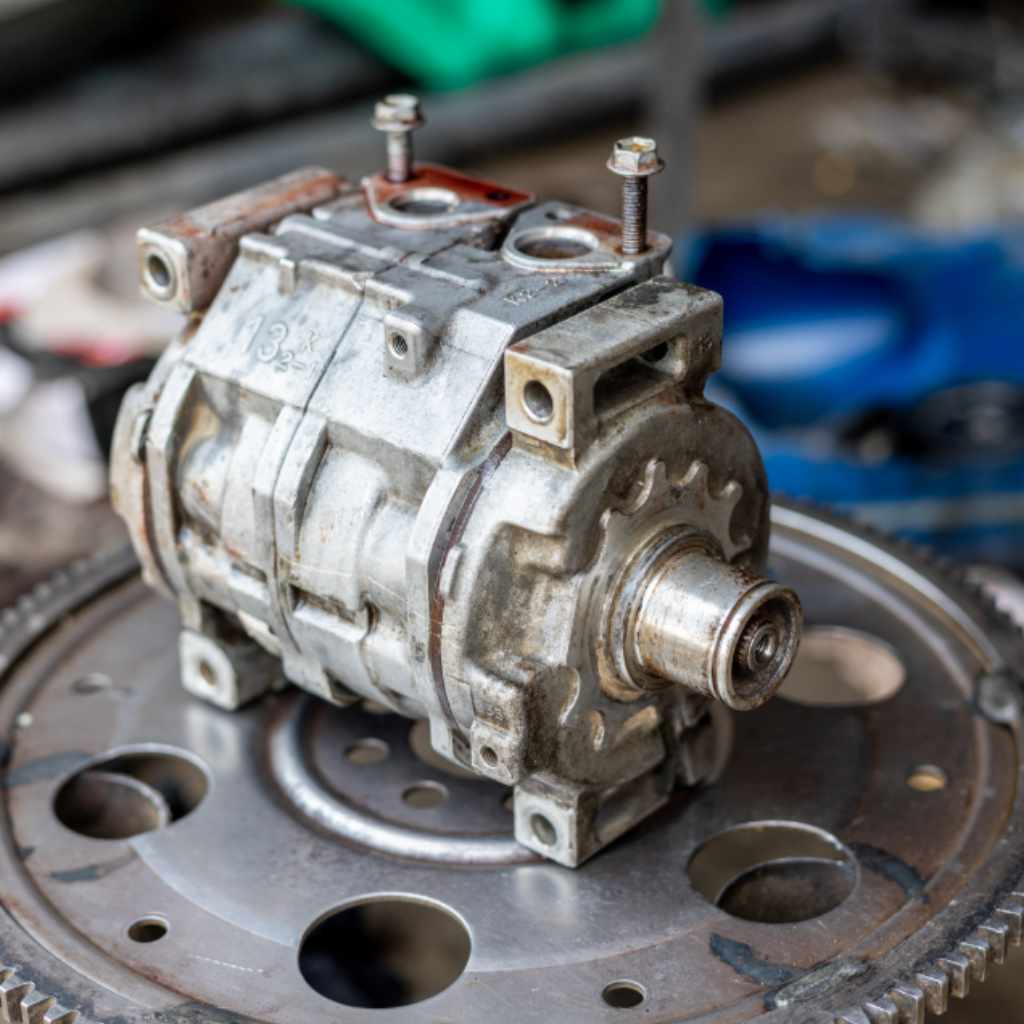

What are the signs of a bad AC compressor in a car?

The common signs are weak or no cooling, odd noises from the compressor area, rapid cycling, or a clutch that will not engage. Those symptoms are useful only when you separate them by failure type, because the same complaint can come from low charge, a restriction, or electrical trouble.

No cooling or weak cooling

Weak cooling does not prove compressor failure. A low refrigerant charge can reduce cooling and also reduce oil return, which raises wear risk. A stuck expansion valve or clogged orifice tube can create the same warm-air complaint while the compressor itself still works.

Noise, cycling, or belt load changes

Grinding, squealing, or a heavy belt load that comes and goes points toward bearing wear, clutch drag, or an internal bind. If the noise changes when the A/C button is switched off, the clutch and pulley assembly deserve attention before the compressor body is blamed.

Clutch engagement problems

If the compressor does not engage, the first question is whether the clutch is being commanded on. Check for battery voltage at the coil, ground integrity, relay operation, and clutch air gap. A clutch with too much gap may look dead even though the compressor internals are still fine.

Picture a compact sedan that blows warm air at idle and only cools a little on the highway. If the low-side pressure is low and the compressor cycles fast, the problem may be charge-related rather than mechanical. Replacing the compressor first would miss the real fault.

What should be checked first?

Start with refrigerant charge. Then read system pressures, then inspect clutch operation and any restriction points. That order matters because charge errors, oil problems, and restrictions can imitate a failed compressor. A pressure reading is far more useful than a guess from the vent temperature alone.

Key points: What should be checked first?

Refrigerant charge and oil condition

Low refrigerant can damage a compressor because the oil moves with the refrigerant. If the charge is low or the wrong refrigerant amount was installed, lubrication drops and the compressor can overheat. Contaminated or dark oil is a warning sign that the failure may already be internal.

High-side and low-side pressure readings

High-side and low-side A/C pressure readings help separate compressor faults from restrictions or charge issues. Manifold gauges or a scan tool can show whether the low side is too low, the high side is too high, or both sides point to a pumping problem. That is the check that keeps a restriction from being mistaken for a dead compressor.

Clutch gap and electrical checks

Inspect the clutch air gap, coil resistance, fuse, relay, and command signal. A compressor clutch can fail separately from the compressor body, so a no-engagement complaint is not automatic proof of internal damage. If the coil is open or the gap is excessive, the fix may be limited to the clutch circuit.

Restriction checks at the expansion valve or orifice tube

An expansion valve or orifice tube can create compressor-like symptoms by choking flow. That restriction changes pressures and cooling output, and it can make the compressor look weak even when the pump is still functional. If the restriction is found, replacing the compressor alone will not solve the issue.

Repair, replace, or diagnose first

Symptom Likely cause Test to confirm Repairability Expected next step
No clutch engagement Blown fuse, bad relay, open coil, excessive clutch gap Voltage at coil, ground check, gap inspection Often repairable separately Repair electrical fault or clutch, then retest
Warm air with low-side pressure too low Low refrigerant charge, leak, restriction Gauge readings plus leak test Sometimes repairable without compressor replacement Fix leak or restriction before condemning compressor
High noise from compressor area Bearing wear, clutch drag, internal wear Belt-off spin check and clutch inspection External faults may be repairable; internal wear usually is not Replace clutch or compressor based on wear source
Metal debris in oil or lines Internal compressor failure Inspect oil, receiver-drier, and debris in the circuit Usually not repairable Replace compressor and contaminated parts
Normal clutch action but poor cooling Expansion valve or orifice tube restriction High-side and low-side pressure readings Repairable at the restriction point Replace the restricted component and verify flow
Fast cycling with weak cooling Low charge, pressure switch issue, or control fault Charge check, switch data, leak test Often repairable Repair leak or control fault, then recharge correctly

What happens after internal failure?

When a compressor fails internally, contamination becomes the big issue. Metal, sludge, and damaged oil can move through the entire A/C loop. That is the point where repair is no longer just about the compressor; it becomes a system-cleanup job with parts that must be checked together.

Key points: What happens after internal failure?

Debris and contamination risk

Internal failure can scatter debris into the condenser, lines, expansion device, and accumulator path. If that debris stays in the system, it can destroy the replacement compressor. That is why a parts swap without cleanup often fails again.

Receiver-drier or accumulator replacement

The receiver-drier or accumulator is usually replaced after compressor failure, especially if there is metal contamination. These parts trap moisture and debris, so they are cheap insurance compared with a second compressor failure. Leaving an old drier in place after contamination is a common shortcut that backfires.

Flushing rules and limits

Flushing can remove debris from lines and, on some systems, the condenser. It is not right for every vehicle or every failure. Some condensers are not meant to be flushed effectively, and some amounts of debris mean replacement is the safer path than trying to clean a part that still holds contamination.

Oil and component compatibility

The refrigerant oil has to match the compressor and refrigerant specification. Too little oil, the wrong oil, or contaminated oil can shorten compressor life fast. After a failure, oil quantity and cleanliness matter as much as the new part number.

Suppose a crossover SUV loses cold air after the compressor locks up and the oil comes out dark with metallic specks. In that case, a new compressor alone is not enough. The drier, contaminated sections, and possibly the condenser need attention before the system can be charged again.

How much does a compressor repair cost?

Cost depends on what failed, how much labor overlaps, and whether contamination adds cleanup work. A clutch or electrical repair can be far cheaper than a full compressor replacement. Once the system has metal in it, the bill climbs because the drier, flushing, and extra diagnosis add time and parts.

Why the labor overlap matters

Labor overlap is the reason “repair” can cost almost as much as replacement. If the system must be evacuated, opened, inspected, cleaned, reassembled, and leak tested either way, the price gap narrows. That is especially true when the compressor sits in a crowded engine bay.

Why repair can cost nearly as much as replacement

A shaft seal repair may look small on paper, but access can be poor. Some compressors are buried under brackets or require belt removal and refrigerant recovery before any work begins. When the access time is the same, replacing the full assembly often makes more sense than rebuilding a questionable unit.

What adds cost after contamination

Contamination adds the cost of a receiver-drier or accumulator, possible condenser replacement, extra refrigerant oil, and more labor for flushing or cleanup. In fleet or facility work, cooling failures create downtime costs for businesses, and service windows may need to happen during late-night and weekend service windows to keep operations moving. Technicians may arrive within four hours for emergency commercial calls, test compressor amp draw against manufacturer specifications, measure superheat and subcool to verify refrigerant charge accuracy, and record amperage readings before putting the system back in service.

Is it safe to drive with a failing compressor?

Usually, yes for a short trip if the belt still tracks normally and the compressor is not locking up, but the A/C may need to stay off. If the compressor is noisy, dragging the belt, or shedding debris, continued operation can cause more damage. The safest choice depends on the failure mode, not the badge on the hood.

When you can keep driving

If the issue is a dead clutch, a bad relay, or low cooling with no strange noise, the vehicle may still be drivable while you arrange repair. That said, the A/C should not be run if the system is suspected to be contaminated or the compressor is making grinding or squealing noises.

When continued operation risks more damage

A seized compressor can stall the belt drive and may leave the vehicle stranded. A failing bearing can also damage the belt, tensioner, or pulley assembly. If the compressor is locking and releasing, or if the belt smells hot after A/C engagement, stop using the system and get it inspected.

Signs you should stop using the A/C

  1. The compressor makes grinding, scraping, or metal-on-metal noise.
  2. The belt shudders or chirps when the A/C turns on.
  3. The clutch chatters or the pulley drags badly.
  4. Metal debris shows up in the oil, ports, or old parts.
  5. The compressor has already seized once or twice.

Follow the vehicle and product manual. Never work under a vehicle supported only by a jack; use jack stands on level ground.

Fuel, coolant, and electrical work need ventilation, no sparks, and the battery disconnected.

Keep reading

Frequently asked questions

Can a car AC compressor be repaired or does it need replacement?

It may be repairable if the fault is external, such as a clutch, coil, connector, or some seal leaks. If the compressor has seized, worn internally, or spread metal through the system, replacement is often the right call. Diagnosis comes first because the wrong fix is expensive.

What should be checked before replacing a car AC compressor?

Check refrigerant charge, oil condition, high-side and low-side pressures, clutch operation, electrical power and ground, and restriction points such as the expansion valve or orifice tube. A leak test and vacuum hold test should also be part of the plan, because a bad seal or leak can mimic compressor failure.

Can low refrigerant damage a car AC compressor?

Low refrigerant can reduce oil circulation and lubrication, which may accelerate wear and overheat the compressor. Low charge can also make the system cool poorly, so it should never be treated as proof that the compressor itself has failed. Fix the leak and recharge to the correct specification.

Can a worn clutch, seal, or valve on an AC compressor be fixed separately?

Often, yes. A worn clutch or a control-valve issue may be serviced without replacing the full compressor, and some shaft seal leaks are repairable if the design allows it. The key is to confirm that the compressor body is still healthy and that no internal damage has started.

Do I need to replace the whole AC system if the compressor fails?

No, not automatically. The need depends on contamination and the parts involved. A failed compressor may require a receiver-drier or accumulator, possible condenser replacement, and cleanup of debris, but the entire system is not always replaced. The right scope comes from inspection, not guesswork.
