How Do I Fix Code P0316 on My Ford? Causes & TSB Fix
To fix the code P0316 on your Ford, you need to check and potentially replace the spark plugs and ignition coils. This error code indicates a misfire in one or more cylinders that could be causing performance issues or potential damage to the engine.
When your Ford displays the code P0316, it is crucial to address it promptly to prevent further complications. Ignoring this code can lead to reduced fuel efficiency, rough idling, and potential damage to the catalytic converter. By inspecting and replacing the spark plugs and ignition coils if necessary, you can ensure optimal engine performance and prevent further damage.
Following these steps will help you fix the code P0316 on your Ford and restore its smooth operation.
Quick Answer
To fix P0316 on a Ford, start by checking the spark plugs and ignition coils — the most common causes — then test the crankshaft position sensor and check for vacuum leaks if those are fine. On a 2021 F-150 with the 3.5L PowerBoost engine, the cause is often a PCM software issue fixed by Ford TSB 22-2151, not a worn part at all.
Understanding Code P0316
When your Ford vehicle triggers a diagnostic trouble code (DTC), it can be quite frustrating. One common code that Ford owners may encounter is Code P0316. If you’ve come across this code, it indicates a misfire has been detected during the first 1,000 revolutions of the engine. In this section, we will dive into the specifics of Code P0316, including its definition, possible causes, and how to fix it. Let’s get started!
What Is Code P0316?
Code P0316 is a generic powertrain code that specifically applies to Ford vehicles. It is known as the “Misfire Detected in the First 1,000 Revolutions” code. When this code is triggered, it means that the powertrain control module (PCM) has detected a misfire occurring during the initial rotations of the engine.
A misfire is when one or more cylinders in your engine fail to ignite properly, causing a disruption in the combustion process. This can lead to various issues, including decreased engine performance, rough idling, and increased fuel consumption. Resolving Code P0316 is crucial to ensure your Ford vehicle is running efficiently and smoothly.
Causes Of Code P0316
Understanding the underlying causes of Code P0316 can help you effectively diagnose and fix the issue. Here are some potential factors that may trigger this code: If your symptoms point more toward general rough running than a stored P0316 code, see our guide on how to tell if a car engine is blown to rule out more serious damage.
- Worn or faulty spark plugs
- Defective ignition coils
- Malfunctioning fuel injector
- Fuel delivery issues
- Incorrect ignition timing
- Faulty camshaft or crankshaft position sensors
- Vacuum leaks in the intake manifold
- Engine overheating
It’s important to note that these causes are not exhaustive, and additional factors may contribute to Code P0316. Therefore, a thorough inspection of the vehicle’s ignition, fuel, and engine systems is recommended to pinpoint the exact cause of the misfire.
If you’re experiencing a misfire and have received Code P0316, it’s crucial to address the issue promptly. Ignoring or postponing repairs can potentially lead to further damage to your vehicle’s engine and costly repairs down the line. In the next section, we will explore the steps you can take to fix Code P0316 on your Ford.
Diagnosing And Fixing Code P0316
When your Ford vehicle displays the code P0316, it is an indication that there is a misfire detected on startup. This code specifically refers to the engine’s misfire that occurs within the first 1,000 revolutions per minute (RPM) after starting the engine. It’s important to diagnose and fix this issue promptly to ensure optimal engine performance and prevent further damage.
Step 1: Check For Ignition Misfire
To begin diagnosing code P0316, it’s essential to check for any ignition misfire. An ignition misfire occurs when one or more cylinders in the engine fail to fire correctly. This can lead to a rough running engine, reduced power, and decreased fuel efficiency. When checking for ignition misfire, follow these steps:
- Start the engine and allow it to idle.
- Listen for any abnormal engine noises or a rough idle.
- Observe the Check Engine Light on the dashboard.
Related Tools & Parts
- Best for: Replacing worn spark plugs and weak coils — the most common real cause of P0316
- Why we picked it: Includes genuine Motorcraft-spec spark plugs and matches the coil-and-plug set this guide recommends checking first
- Main drawback: Fitment is engine-specific — confirm your exact Ford engine (4.6L/5.4L V8) before ordering
 |
ANCEL AD310 OBD II Scanner Best for: Confirming P0316 and scanning for companion codes before replacing any parts |
Check on Amazon |
 |
ANCEL AD410 Enhanced OBD2 Scanner Best for: A slightly more advanced alternative with enhanced check-engine-light diagnostics |
Check on Amazon |
 |
AstroAI Digital Multimeter Best for: Testing ignition coil resistance against the manufacturer spec, as covered in Step 3 |
Check on Amazon |
As an Amazon Associate we earn from qualifying purchases.

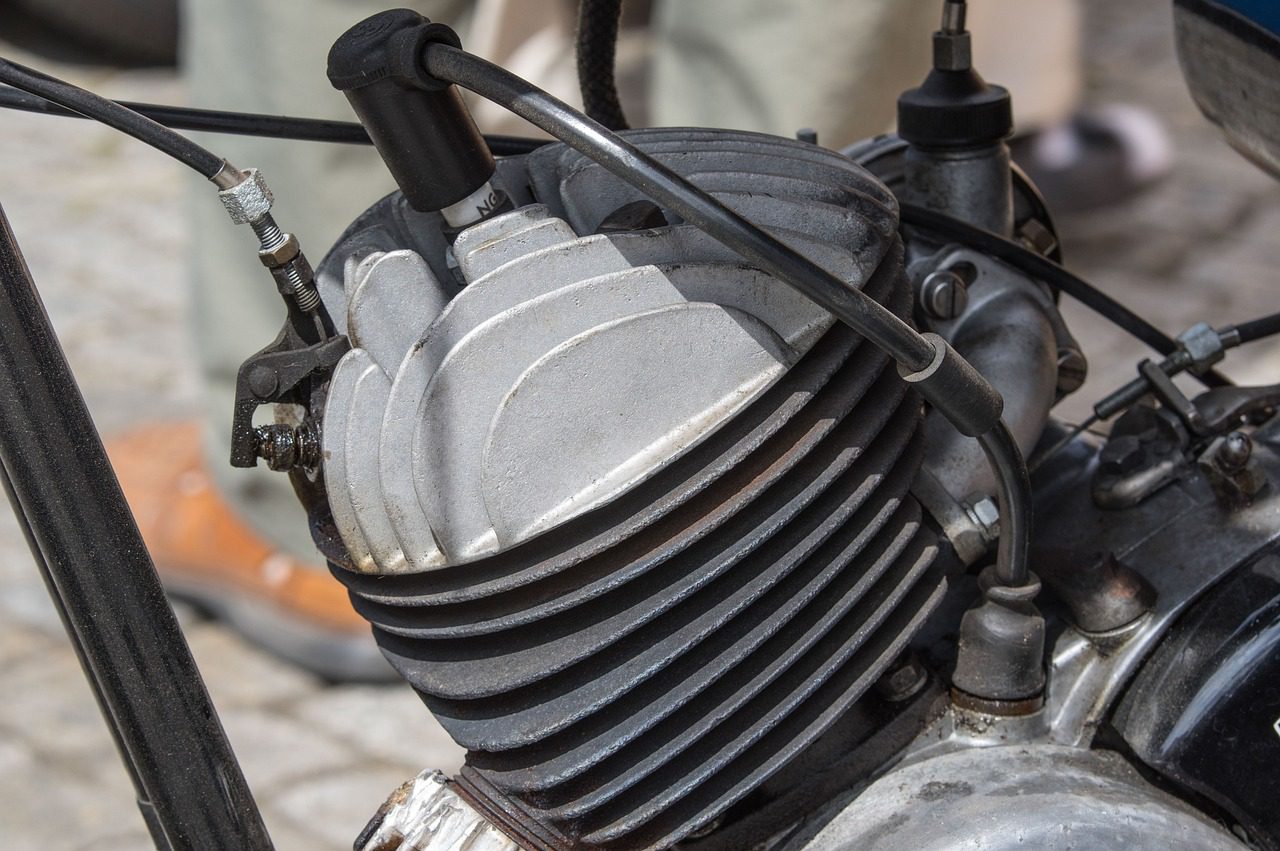

Step 2: Inspect Spark Plugs And Wires
The next step in diagnosing and fixing code P0316 is to inspect the spark plugs and wires. Faulty spark plugs or damaged spark plug wires can cause ignition misfires. Follow these steps when inspecting spark plugs and wires:
- Locate the spark plugs and wires in the engine bay. Consult the owner’s manual if needed.
- Check the condition of each spark plug for signs of wear, fouling, or damage. Replace any faulty spark plugs.
- Inspect the spark plug wires for any cracks, burns, or other damage. Replace any damaged wires.
Step 3: Test Ignition Coils
If the ignition misfire persists, it may be necessary to test the ignition coils. Faulty ignition coils can cause misfires in the engine. Follow these steps to test the ignition coils:
- Locate the ignition coils in the engine bay. Refer to the owner’s manual for assistance.
- Disconnect the electrical connector from each ignition coil.
- Using a multimeter, measure the resistance across the terminals of each ignition coil. Compare the readings to the manufacturer’s specifications.
- If any ignition coil falls outside the specified range, it may be defective and require replacement.
Step 4: Examine The Crankshaft Position Sensor
The crankshaft position sensor is responsible for detecting the position of the crankshaft and sending this information to the vehicle’s engine control module (ECM). A faulty crankshaft position sensor can cause misfires and trigger code P0316. Follow these steps to examine the crankshaft position sensor:
- Locate the crankshaft position sensor in the engine bay. Refer to the owner’s manual to find its exact location.
- Inspect the sensor for any signs of damage or loose connections.
- If any issues are detected, replace the crankshaft position sensor with a new one.
Step 5: Check For Vacuum Leaks
Vacuum leaks can also contribute to code P0316 and ignition misfires. A vacuum leak occurs when there is an unintended gap or hole in the intake manifold or vacuum lines, causing the engine to run lean. Follow these steps to check for vacuum leaks:
- Inspect the intake manifold and vacuum lines for any signs of damage, cracks, or loose connections.
- Use a can of carburetor or intake cleaner to spray around suspected areas while the engine is running.
- If the engine idle changes or smooths out when sprayed, there may be a vacuum leak in that area.
- Replace or repair any damaged or faulty components contributing to the vacuum leak.
Step 6: Scan For Additional Trouble Codes
While diagnosing code P0316, it’s important to perform a comprehensive scan of the vehicle’s computer for any additional trouble codes. Additional codes may provide further insight into underlying issues contributing to the misfire. Follow these steps to scan for additional trouble codes:
- Connect an OBD-II scanner to the vehicle’s diagnostic port, usually located under the dashboard.
- Follow the scanner’s instructions to retrieve the trouble codes stored in the vehicle’s computer.
- Take note of any additional codes and research their meanings to address all potential issues.
Step 7: Resetting The Check Engine Light
After diagnosing and fixing the underlying issues causing code P0316, it’s important to reset the Check Engine Light to ensure it doesn’t reappear unnecessarily. Follow these steps to reset the Check Engine Light:
- Ensure all underlying issues have been properly addressed and fixed.
- Disconnect the negative terminal of the vehicle’s battery for a few minutes to drain the power from the system.
- Reconnect the negative terminal and start the vehicle to see if the Check Engine Light remains off.
2021 Ford F-150 PowerBoost: A Known Software Cause (TSB 22-2151)
If you’re working on a 2021 F-150 with the 3.5L PowerBoost hybrid engine built on or before April 23, 2021, the most common cause of P0316 isn’t a worn part at all — it’s a documented PCM software issue covered by Ford Technical Service Bulletin 22-2151. That TSB covers vehicles that store P0316 alongside other related codes (P0300, P0301-P0306, P050E, P1674, P0454, and/or P2451) due to software parameters in the powertrain control module. The fix is a PCM reprogram at a dealership using Ford’s diagnostic system — not a part replacement — and it’s often covered under the emissions warranty. A dealer or independent shop with access to Ford’s FDRS system can check your VIN against this and other TSBs before you spend money on spark plugs or coils that aren’t the actual problem.
📊 Diagnosing P0316 typically costs $50-$500 depending on the shop, with most independent shops charging $80-$150/hour for labor — getting the diagnosis right first (including checking for a PCM software TSB on newer trucks) avoids paying for parts that were never the real problem.
Seeking Expert Assistance
When it comes to dealing with the code P0316 on your Ford vehicle, seeking expert assistance is crucial. While it’s tempting to try and fix the problem yourself, consulting a mechanic who specializes in Ford cars can save you time, money, and stress in the long run. In this section, we will discuss when to consult a mechanic, how to choose a reliable one, and the benefits of professional assistance.
When To Consult A Mechanic?
Knowing when to consult a mechanic for the code P0316 is essential to ensure the problem is addressed promptly. If you are experiencing any of the following symptoms, it is strongly recommended to seek professional help: If you’ve had recurring Ford dashboard issues before, our guides on Ford F-150 intermittent starting problems and Ford engine coolant over-temperature warnings cover other common Ford-specific trouble codes.
- Check Engine Light (CEL) is constantly illuminated
- The engine is running rough or misfiring
- Decreased fuel efficiency
- Difficulty starting the engine
- Loud noises or vibrations
Choosing A Reliable Mechanic
Choosing a reliable mechanic is crucial to ensure that your vehicle receives the best care possible. Here are some important factors to consider when selecting a mechanic:
- Experience and Expertise: Look for a mechanic who has ample experience and expertise in dealing with Ford vehicles. They should be familiar with the code P0316 and know the most effective solutions.
- Reputation: Research online reviews and ask for recommendations from friends, family, or fellow Ford owners. A mechanic with a good reputation signifies their reliability and quality of service.
- Certifications and Training: Check if the mechanic possesses the necessary certifications and has undergone training specific to Ford vehicles. This ensures that they are up-to-date with the latest diagnostic and repair techniques.
- Transparent Communication: Choose a mechanic who communicates clearly and honestly about the issue, the required repairs, and the associated costs. Transparent communication helps you make informed decisions.
- Warranty and Guarantees: Inquire about the mechanic’s warranty and guarantees on the repairs performed. A reputable mechanic will stand behind their work and offer warranties to ensure customer satisfaction.
Benefits Of Professional Assistance
Opting for professional assistance when dealing with the code P0316 offers numerous benefits:
- Accurate Diagnosis: An experienced mechanic has the expertise to accurately diagnose the root cause of the code P0316. This avoids unnecessary repairs and saves you from wasting money.
- Correct Repairs: A professional mechanic will have access to specialized diagnostic tools and genuine Ford parts, ensuring that repairs are done correctly and efficiently.
- Time and Convenience: By seeking professional assistance, you can save valuable time and effort. Mechanics have the necessary resources and knowledge to handle the repair process swiftly.
- Prevention of Further Damage: Ignoring the code P0316 or attempting amateur repairs can lead to further damage to your vehicle. Professional assistance not only fixes the current issue but also prevents potential damage.
- Peace of Mind: Knowing that your vehicle is in the hands of a skilled professional brings peace of mind. You can trust that the problem will be resolved effectively and that your vehicle will be safe to drive.
Remember, when dealing with the code P0316 on your Ford, seeking expert assistance is the best approach. By consulting a reliable mechanic, you can ensure accurate diagnosis, correct repairs, and enjoy the convenience and peace of mind that professional assistance brings.
Frequently Asked Questions
Is It Safe to Drive With Code P0316?
Short trips at low speed are usually okay, but a persistent misfire lets unburnt fuel reach the catalytic converter, which can cause expensive converter damage over time. Get it diagnosed as soon as reasonably possible rather than driving on it long-term.
Can I Fix P0316 Myself?
Yes, if you’re comfortable with basic engine work — checking and replacing spark plugs, testing ignition coils, and scanning for codes with an OBD-II scanner are all doable at home. A crankshaft position sensor replacement or PCM software update is better left to a shop with proper diagnostic equipment.
How Much Does It Cost to Fix P0316?
Diagnosis alone typically runs $50-$500 depending on the shop, and most independent shops charge $80-$150 per hour for labor. A spark plug and coil job is usually the cheapest fix; a PCM software reflash (as with TSB 22-2151) is often covered under emissions warranty.
Will Code P0316 Clear Itself?
No — clearing the code with a scanner only resets the check engine light. If the underlying cause (worn plugs, a bad coil, a sensor fault, or a PCM software issue) isn’t actually fixed, the code will return.
Conclusion
P0316 means the PCM detected a misfire within the first 1,000 engine revolutions after startup — the fix depends on the actual cause, so start with the cheapest, most common culprits first: worn spark plugs and weak ignition coils. If those check out, move on to the crankshaft position sensor, fuel delivery, and vacuum leaks covered above, and always scan for companion codes before replacing parts. Clear the code with an OBD-II scanner only after the real cause is fixed.
By addressing this issue promptly, you can ensure optimal performance and prevent further complications with your vehicle.
