Ford F150 Anti-Theft (PATS) Reset: Fix a No-Start Security Light

If your Ford F150’s PATS (Passive Anti-Theft System) security light is flashing and the truck won’t start, the fix is usually the security-light relearn procedure: turn the key to ON and wait for the flashing to stop, then cycle it off and on again. You need at least two working keys for this to fully clear — with only one key, the system stays in theft mode until a second key is programmed.

However, there may be situations where you need to bypass this system for legitimate reasons, such as a faulty system or a lost key. In such cases, disconnecting the battery for a few minutes can help reset the system and allow you to restart the vehicle without triggering the anti-theft system.

This simple solution is worth trying before seeking professional assistance or contacting the manufacturer. Keep in mind that tampering with the anti-theft system may have legal and safety implications, so proceed with caution and only bypass it if necessary.

Understanding The Ford F150 Anti Theft System

The Ford F150 Anti Theft System is a crucial security feature designed to protect your vehicle from theft. This system is equipped with advanced technology that makes it extremely difficult for unauthorized individuals to start and drive your Ford F150. In this article, we will explore what the Ford F150 Anti Theft System entails, how it works, and the reasons why you might need to bypass it.

What Is The Ford F150 Anti Theft System?

The Ford F150 Anti Theft System, also known as the Passive Anti-Theft System (PATS), is an electronic security system installed in Ford F150 trucks to prevent theft. It relies on a specially coded key that communicates with the vehicle’s engine control module (ECM) to allow or deny access to start the engine. This unique coding makes it nearly impossible for someone without the correct key to start and drive the vehicle.

Curious about Ford Automotive Insights? We've got more info in this linked article. Best Ford Maverick Accessories: 6 Top Picks for Bed and FLEXBED

How Does The Anti Theft System Work?

The Ford F150 Anti Theft System operates through a complex process involving the key, the ignition system, and the ECM. When you insert the coded key into the ignition cylinder and turn it, the system sends a signal to the ECM to verify the key’s authenticity. If the ECM recognizes the key as authorized, it sends a signal back to the ignition system, allowing the engine to start. If the key is not recognized or is incorrect, the system immobilizes the vehicle, preventing the engine from starting.

The PATS system uses encryption technology to ensure that the codes transmitted between the key and the ECM are secure and cannot be easily duplicated or tampered with. This high level of security provides peace of mind to Ford F150 owners by deterring theft attempts and protecting their valuable assets.

Why Would You Bypass The Anti Theft System?

In certain cases, you may need to bypass the Ford F150 Anti Theft System. Here are a few reasons why you might consider doing so:

1. If your Ford F150’s PATS system malfunctions and prevents you from starting your vehicle, bypassing the system can allow you to regain access and get back on the road quickly. It is important to note that bypassing the system should only be done temporarily while you address the underlying issue.
2. If you have lost or misplaced your coded key and do not have a spare, bypassing the Anti Theft System may become necessary to start your Ford F150. However, this should be done with caution and only as a temporary solution until you can obtain a new coded key from a Ford dealership.
3. In certain scenarios, such as when performing repairs or modifications that involve disconnecting the battery or ECM, you may need to bypass the Anti Theft System temporarily to prevent it from triggering and immobilizing the vehicle.

It is important to understand that bypassing the Ford F150 Anti Theft System should be approached with caution and only done under specific circumstances. Tampering with the system or attempting to permanently bypass it can compromise the security of your vehicle and may be illegal. Therefore, it is recommended to consult with a professional mechanic or contact your local Ford dealership for guidance on how to bypass the system safely and effectively.

Expand your knowledge about Ford Automotive Insights with this article. Ford 460 Carburetor Upgrades: Boost Your Engine’s Power!

Methods To Bypass The Ford F150 Anti Theft System

The Ford F150 is a reliable and popular truck model, known for its tough exterior and powerful performance. However, like many modern vehicles, it comes equipped with an anti-theft system to protect it from unauthorized access.

While the Ford F150 anti-theft system is designed to provide security, there may be situations where you find yourself needing to bypass it. Whether you’ve lost your keys, the system is malfunctioning, or you need to disable it temporarily for maintenance purposes, there are several methods you can try — from reading the real diagnostic blink code to a documented relearn procedure and, when the hardware itself has failed, a professional repair.

Method 1: Using The Correct Key

One of the simplest and most straightforward ways to bypass the Ford F150 anti-theft system is by using the correct key. This method assumes that you have a functioning key and the issue lies elsewhere. Here’s how you can do it:

1. Insert the key into the ignition.
2. Turn the key to the “On” position, without starting the engine.
3. Wait for the security light on the dashboard to turn off.
4. Once the security light is off, you can now start the engine as usual.

By following these steps, the anti-theft system should recognize the correct key and allow you to start the Ford F150 without any issues.

Method 2: Reading the Blink Code (Real Diagnosis, Not Guesswork)

Before disconnecting anything, let the security light actually tell you what’s wrong. Turn the key to ON (don’t crank it) and leave it there. The light will flash rapidly for 60-90 seconds, then settle into a slower pattern — count those slow flashes. Six flashes means fault code 16, for example; if there’s more than one issue, the pattern repeats for each code. This takes two minutes and tells you whether the problem is the key, the antenna ring, or the module itself, instead of guessing.

Most PATS no-start events trace back to one of four things: a weak battery, a damaged or worn transponder chip in the key, a failed antenna ring around the ignition cylinder, or a programming mismatch after a key or module was replaced — if the truck starts sometimes and not others, see our guide on Ford F150 intermittent starting problems for causes beyond PATS.

Find out more about Ford Automotive Insights by exploring this related topic. 2011 Ford Edge Oil Capacity: Essential Guide for Owners

Method 3: The Security Light Relearn Procedure

If the blink code points to a programming issue rather than a hardware failure, a relearn often clears it without a scan tool — but the exact steps depend on your F150’s model year, and Ford’s own architecture requires at least two working keys to complete it:

1. Locate the vehicle’s battery.
2. Using a wrench or pliers, loosen the negative terminal connector and disconnect it from the battery for at least 15 minutes — this clears stored codes. If you want to confirm the battery itself isn’t the underlying cause, check the battery voltage first.
3. Reconnect the negative terminal connector to the battery.
4. Insert your key and turn the ignition to the ON (not start) position. The security light will flash for up to 15 minutes before turning solid or going out.
5. Turn the ignition OFF, then back to ON. The light will repeat the flashing cycle for up to another 15 minutes.
6. Once the light stays off, try starting the engine.

If you only have one key, this procedure will not fully complete — the truck stays in theft mode (a “Code 21” style fault) until a second working key is cut and introduced to the system. Newer PATS generations (CAN-based systems on later F150s) may also require a scan tool like FORScan or Ford’s IDS to finish the key relearn, since the process can’t always be done manually on those models.

Method 4: When the Hardware Itself Has Failed

Sometimes the light and key are both fine, but the PATS antenna ring around the ignition cylinder has physically worn out or corroded — a common failure point on older F150s. In that case, resets and relearns won’t help because the vehicle can never read the key’s signal in the first place. This is a repair job, not a DIY reset:

1. Have a locksmith or dealer confirm the antenna ring (not the key or module) is the actual point of failure — this usually shows up as a specific blink code rather than a generic “no start.”
2. A qualified technician replaces the antenna ring or, in some cases, installs a PATS bypass/repair module designed for that specific failure — this is professional-installed equipment, not a DIY plug-in kit.
3. The technician programs the replacement hardware to the vehicle’s existing keys.
4. Test that the truck starts reliably with your normal key before considering the repair complete.

This is the one method in this guide that’s genuinely a professional repair rather than something to attempt yourself — getting it wrong can leave the truck stuck in theft mode entirely. If you’re starting from a lost or worn-out key, how to connect a key fob to your car covers the general pairing process for reference.

Whether you have a functioning key, need a relearn, or the antenna ring itself has failed, one of these methods should get your F150 running again. Remember to always be cautious and mindful of the legality and consequences of tampering with a vehicle’s anti-theft system.

Dive deeper into Ford Automotive Insights by checking out this article. Ford F150 Intermittent Starting Problem: Causes & Fixes

Tips And Precautions To Consider

When it comes to bypassing the anti-theft system on your Ford F150, there are a few tips and precautions that you should keep in mind. While it may be tempting to try and do it yourself, it’s important to approach this process with caution to avoid causing any damage to your vehicle. Here are some essential tips and precautions to consider:

Tip 1: Contacting A Professional

Before attempting to bypass the anti-theft system on your Ford F150, it’s always a good idea to contact a professional. An experienced locksmith or auto technician will have the necessary expertise and tools to safely and effectively bypass the system without causing any harm to your vehicle. By entrusting the job to a professional, you can have peace of mind knowing that it will be done correctly.

Tip 2: Understand The Risks

It’s crucial to understand that bypassing the anti-theft system may have some risks involved. While a professional can reduce the chances of any negative consequences, it’s important to be aware that tampering with the security system of your vehicle can potentially affect other functionalities. Additionally, attempting to bypass the system yourself without proper knowledge and expertise can result in permanent damage to your vehicle, voiding any warranties you may have. Knowing and accepting the risks associated with bypassing the anti-theft system is essential.

Tip 3: Ensure Legality

Before proceeding with bypassing the anti-theft system on your Ford F150, it’s crucial to ensure the legality of such actions in your specific jurisdiction. Some regions may have laws and regulations that prohibit tampering with vehicle security systems. Violating these laws can lead to legal consequences and fines. Therefore, it is best to consult with a professional or familiarize yourself with the local laws to ensure that you are on the right side of the law.

By following these tips and precautions, you can approach bypassing the anti-theft system on your Ford F150 with the necessary caution and avoid any potential pitfalls or legal troubles. Remember, it’s always best to consult a professional to ensure a safe and successful bypassing process.

Explore more about Ford Automotive Insights with this related post. P0012 Ford Escape: Quick Fixes for Common Issues

Frequently Asked Questions

Why won’t my Ford F150 start even with the right key?

This usually means PATS isn’t recognizing the key’s transponder signal. Read the security light’s blink code first — it will point to a weak key battery, a worn transponder chip, a failed antenna ring, or a programming mismatch, each of which has a different fix.

Can I reset Ford F150 PATS with only one key?

You can start the relearn procedure with one key, but it won’t fully complete. Ford’s PATS architecture requires two working keys to close the programming loop — with only one, the truck stays in a locked theft-mode fault until a second key is cut and introduced.

Do I need a scan tool to relearn my F150’s PATS keys?

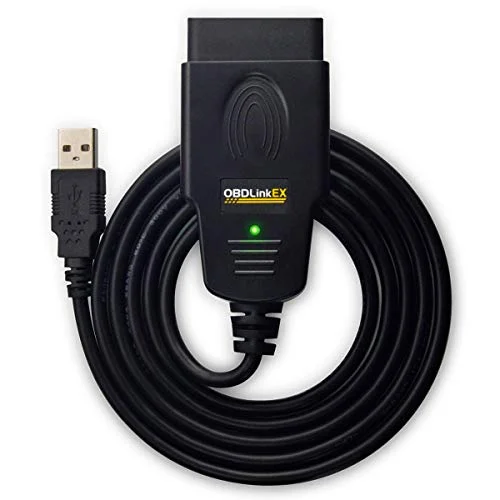

Older F150s can often be relearned manually with just the ignition key. Newer, CAN-based PATS systems on later model years may require a scan tool like FORScan or Ford’s IDS to complete the key relearn.

Is it legal to bypass my own F150’s anti-theft system?

Resetting or relearning your own vehicle’s PATS as the owner, for a legitimate reason like a malfunction or lost key, is normal maintenance. Permanently disabling the system or bypassing it to defeat its security function can carry legal and insurance implications and should be discussed with a professional.

Conclusion

To sum up, bypassing the anti-theft system on your Ford F150 requires careful consideration and adherence to legal and ethical guidelines. Remember to always prioritize safety and consult a professional if you’re unsure about any procedure. By following the steps outlined in this blog post, you’ll be equipped with the knowledge and understanding to overcome any issues related to your vehicle’s anti-theft system.

Drive safely!
