2026 BMW 325i Oil Type: The Mechanic’s Cheat Sheet for the M54 Engine

You just bought a 2026 BMW 325i with 120,000 miles, or maybe you’ve owned it for years. Either way, you’re standing in an auto parts store staring at a wall of oil bottles, and the guy next to you says ‘just use 5W-30, it’s fine.’ He’s not wrong, but he’s not right either. The M54 engine in your 325i has a specific oil specification that BMW engineers actually designed around, and getting it wrong can cost you thousands in timing chain wear or sludge buildup.

This guide gives you the exact oil type, capacity, torque specs, OEM part numbers, and a step-by-step DIY procedure. I’ve done this oil change on my own E46 more times than I can count, and I’ll tell you where to save money and where not to skimp. By the end, you’ll know precisely what to buy, how to do the job in under an hour, and how to diagnose the common oil consumption issues that plague this engine.

One thing that makes this job easier: the Mann Filter HU 925/4 oil filter is the same unit BMW dealers sell under their own part number. It comes with the drain plug gasket, so you don’t need to track down a separate crush washer. Mann is one of the original equipment suppliers for BMW, so you’re getting the exact filter the engine was designed around, without paying the dealership markup.

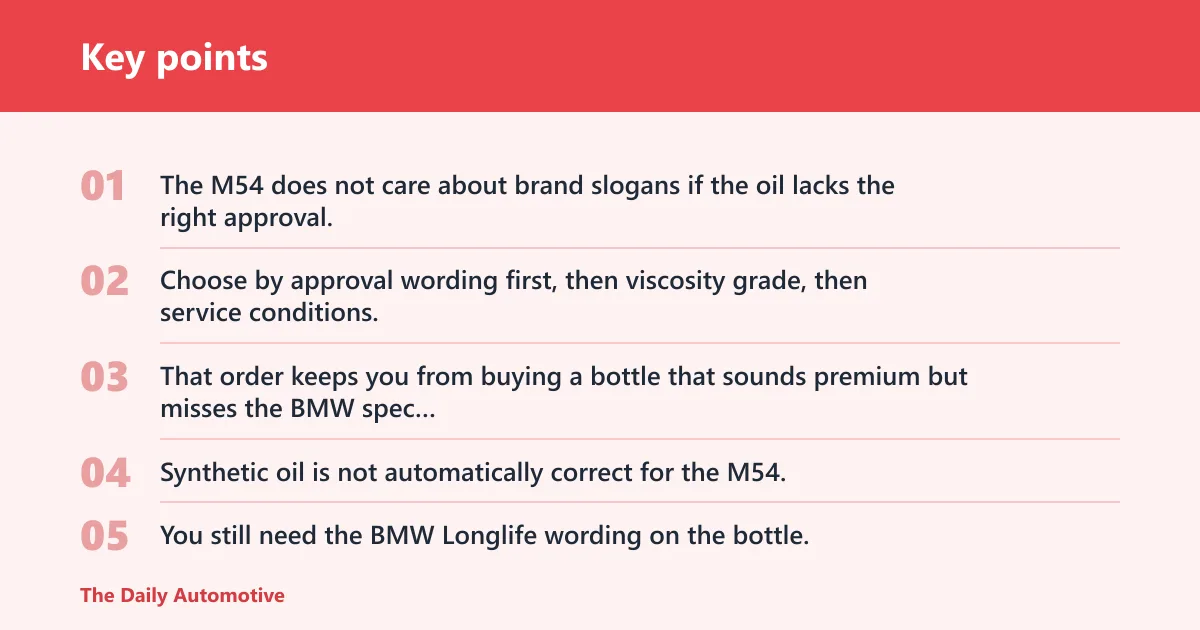

The Only Oil Spec That Matters for the 2026 BMW 325i (M54 Engine)

BMW’s Long Life-01 (LL-01) approval is the gatekeeper. If an oil doesn’t carry this certification, don’t put it in your M54. LL-01 is not a marketing gimmick; it’s a specific set of tests that ensure the oil can handle extended drain intervals, resist shearing at high temperatures, and protect the VANOS variable valve timing system. The M54’s hydraulic VANOS units are sensitive to oil pressure and cleanliness, and the wrong oil can cause rough idle and timing rattle.

The M54 is a 2.5-liter inline-six that was used across BMW’s lineup from 2026 to 2026. It’s a robust engine, but it’s also old enough that oil choice matters more than it did when the car was new. Modern oils with API SN or SP ratings are backward compatible, but you still need the LL-01 stamp to guarantee the right additive package.

2026 BMW 325i Oil Type: Viscosity, BMW LL-01 Certification, and Synthetic Requirement

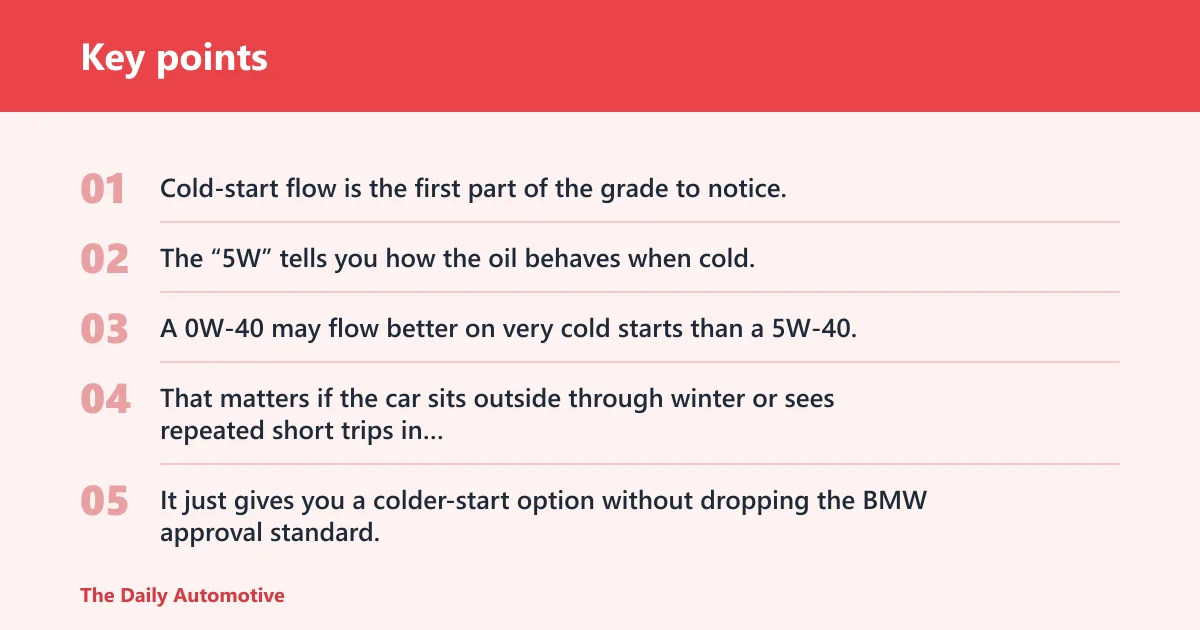

BMW specifies two viscosities for the M54: 5W-30 and 0W-40. Both must be full synthetic and carry LL-01 approval. The choice between them comes down to your climate and driving style.

• 5W-30 – The default choice for most climates. It offers good cold start flow and fuel economy. Use this if you live in a moderate climate and drive normally.
• 0W-40 – Better for extreme cold (below -20°F) because it flows faster at startup. It also has a slightly thicker high-temperature viscosity (40 vs 30), which some owners prefer for high-mileage engines or track use. It’s a good option if you live in a northern state or do frequent short trips in winter.

What about 10W-40 or 15W-50? Don’t. The M54’s hydraulic lifters and VANOS need thin oil to reach every passage quickly. Thicker oil can cause cold start rattle and increased wear until the engine warms up. Stick to the BMW spec.

If you have a high-mileage engine (150k+), you might be tempted to use a high-mileage oil. Some high-mileage oils are LL-01 certified, but many aren’t. Check the label. If it doesn’t say BMW LL-01, it’s not the right choice. The M54’s valve stem seals are a known weak point, and a thicker oil won’t fix them; it just masks the symptom.

2026 BMW 325i Oil Capacity: With and Without Filter

The M54 holds 6.9 quarts (6.5 liters) of oil including the filter. Without the filter, it’s about 6.5 quarts. When you do a drain-and-refill, you’ll typically need all 7 quarts, but the exact amount depends on how long you let it drain and whether you replace the filter.

Here’s the practical approach: add 6.5 quarts, run the engine for 30 seconds, then check the dipstick. Top off in 0.5-quart increments until the level is between the marks. The M54’s oil level sensor is notoriously finicky, so the dipstick is your friend. If you’re using the sensor only, you might get a false low reading if the car is parked on an incline.

Oil Change Interval: Mileage, Driving Conditions, and the CBS System

BMW’s Condition Based Service (CBS) system calculates oil change intervals based on driving conditions, not just mileage. The 2026 325i can go up to 15,000 miles between changes under ideal conditions, but that’s a big mistake for a car this age. The CBS system assumes you drive on highways, use quality fuel, and don’t sit in traffic. Real-world conditions are different.

My rule for the M54: change the oil every 7,500 miles or 12 months, whichever comes first. If you do mostly short trips, dusty roads, or track days, drop that to 5,000 miles. The engine is 20 years old; oil is cheap, engines are not. The LL-01 certification allows extended intervals, but it doesn’t require them. You’re not saving money by stretching an oil change; you’re risking sludge and accelerated wear.

Also, if you buy a used 325i with unknown service history, change the oil immediately. Don’t trust the previous owner’s word. A fresh oil change is cheap insurance.

Step-by-Step Oil Change with Torque Specs and OEM Part Numbers

This is a straightforward job, but there are a few gotchas. The oil filter housing cap is plastic and cracks if you over-torque it. The drain plug is aluminum and strips easily. Here’s the correct way to do it.

Tools and Parts Checklist

• 7 quarts of BMW LL-01 certified 5W-30 or 0W-40 synthetic oil
• Mann HU 925/4 oil filter (BMW OEM part number 11-42-7-832-569) – comes with drain plug gasket
• 17mm socket for the drain plug
• 36mm socket (or adjustable wrench) for the oil filter housing cap
• Torque wrench (1/2-inch drive for drain plug, 3/8-inch for filter cap)
• Oil catch pan, funnel, latex gloves, shop rags

Pro tip: The Mann filter you’ll find on Amazon is the same one BMW puts in a box with a roundel on it. Save the markup.

Draining, Filter Replacement, and Refill

1. Warm up the engine for 2-3 minutes. This thins the oil and helps it drain completely. Don’t let it get hot enough to burn you.
2. Jack up the front of the car and secure it on jack stands. The drain plug is on the driver’s side of the oil pan, behind the front axle.
3. Place the catch pan under the plug, then loosen the plug with a 17mm socket. Remove it by hand, letting the oil drain. Inspect the old crush washer – replace it with the one from the Mann filter kit.
4. While the oil drains, remove the oil filter housing cap using the 36mm socket. The cap is on the front of the engine, just above the alternator. Pull out the old filter and let the housing drain.
5. Clean the filter housing with a rag, install the new filter (rubber gasket faces up), and replace the o-ring on the cap. Torque the cap to 25 Nm (18 ft-lbs). Over-tightening cracks the plastic cap.
6. When the oil pan is empty, install the drain plug with the new gasket. Torque to 18 ft-lbs (25 Nm). Do not exceed this; the aluminum pan threads strip easily.
7. Lower the car and add 6.5 quarts of oil through the filler cap on the valve cover. Use a funnel to avoid spills.
8. Start the engine and let it run for 30 seconds. Check for leaks around the filter cap and drain plug. Then check the dipstick and top off as needed.

That’s it. The whole job takes about 45 minutes the first time, less after that.

Resetting the Oil Service Light

The 2026 325i has a service interval indicator that needs resetting after an oil change. Here’s the cluster button method:

1. Turn the ignition to position 1 (accessories on, engine off).
2. Press and hold the trip odometer reset button (the one on the left side of the cluster).
3. While holding, turn the ignition to position 2 (but don’t crank the engine). Keep holding the button.
4. After about 5 seconds, the display will show ‘Oil Service’ or ‘Inspection’. Release the button.
5. Press and hold the button again for 5 seconds until the display flashes ‘Reset?’.
6. Release, then press and hold again for 5 seconds until the display shows ‘Reset OK’.

If the display doesn’t respond, you may have a dead battery in the cluster or a different variant. There’s also a method using a paperclip on the diagnostic connector, but the cluster button works on most 2026 models. If you have a 2026 BMW 328i, the procedure is different – check our oil reset guide for that model.

Diagnosing Oil Consumption vs. Common M54 Leaks

The M54 is known for two things: smooth power and oil consumption. Some consumption is normal – BMW spec allows up to 1 quart per 1,000 miles under hard driving. But if you’re adding a quart every 500 miles, something’s wrong.

First, check for leaks. The two most common spots are the valve cover gasket and the oil filter housing gasket. The valve cover gasket sits on top of the engine and leaks oil down the sides, often onto the exhaust manifold, which burns off and smells. The oil filter housing gasket leaks from the front of the engine, and you’ll see oil pooling around the filter housing and dripping onto the alternator. Both are DIY-able, but the valve cover gasket requires removing the ignition coils and is a 2-hour job.

If there are no leaks, the oil is likely being burned. The M54’s valve stem seals harden with age, allowing oil to seep into the combustion chambers, especially on cold starts. This shows up as blue smoke from the exhaust on startup that clears after a few minutes. The other culprit is the crankcase ventilation (CCV) system. A failing CCV causes high crankcase pressure, which pushes oil past the rings and seals. Symptoms include rough idle, oil in the intake manifold, and excessive oil consumption.

To test for a bad CCV, remove the oil filler cap while the engine is idling. If you feel strong suction (vacuum) at the opening, the CCV is likely clogged or failed. A healthy M54 has very little vacuum at that point. Replacing the CCV valve and hoses is a common maintenance item on these cars, often done alongside the valve cover gasket.

If your consumption is moderate (1 quart per 1,500 miles) and there are no leaks, you can live with it. Just keep a quart of oil in the trunk. If it gets worse, address the CCV and valve stem seals.

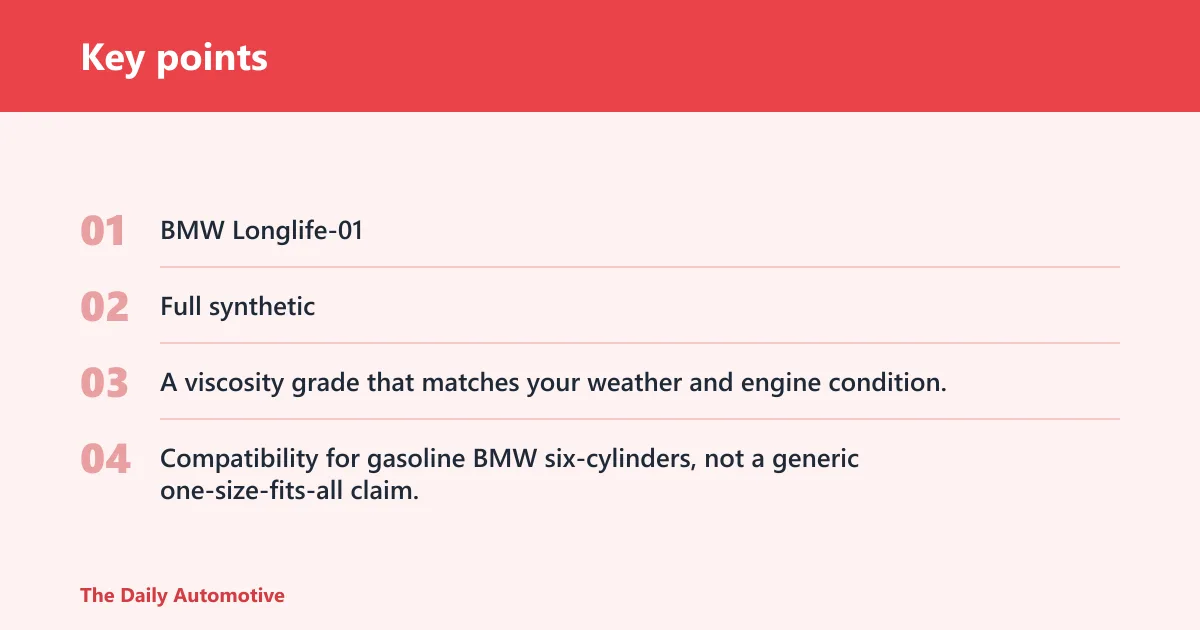

Quick Reference Spec Table

Specification	Value
Oil Type	BMW LL-01 certified full synthetic
Viscosity (standard)	5W-30
Viscosity (extreme cold / high mileage)	0W-40
Oil Capacity (with filter)	6.9 quarts (6.5 liters)
Oil Capacity (without filter)	6.5 quarts (6.1 liters)
Oil Filter	Mann HU 925/4 (BMW 11-42-7-832-569)
Drain Plug Torque	18 ft-lbs (25 Nm)
Filter Cap Torque	25 Nm (18 ft-lbs)
Oil Change Interval	7,500 miles or 12 months (5,000 if severe)
API Rating	SN or newer (backward compatible)

Cost Breakdown: DIY vs. Shop

DIY oil change on a 2026 325i costs about $60-70 for oil and filter. A shop will charge you $120-150 for the same job, plus the upsell on a cabin filter and wiper blades. The M54 is one of the easiest engines to change oil on – no underbody panels to remove, the filter is on top, and the drain plug is accessible without jacking (though I recommend it for safety).

Filter brand matters. Mann, Mahle, and Hengst are the three OEM suppliers for BMW. All three make quality filters that meet spec. The Mann HU 925/4 is what I’ve used for years. It’s well-built, the anti-drainback valve works correctly, and it comes with the drain plug gasket. You can get it on Amazon for a fair price – just check the current price. Avoid no-name filters; they often lack the proper bypass valve and can restrict oil flow.

Frequently Asked Questions

Can I use conventional oil in my 2026 BMW 325i?

No. The M54 engine was designed for synthetic oil. Conventional oil lacks the thermal stability and shear resistance needed for this engine’s high operating temperatures and extended drain intervals. Using conventional oil will lead to sludge buildup and premature engine wear. Stick with a full synthetic that meets BMW LL-01.

How do I know if my oil is BMW LL-01 certified?

Look for the BMW Long Life-01 logo or the words ‘BMW LL-01’ on the oil bottle’s label. It’s usually on the back or side. If you don’t see it, the oil is not certified. Some oils like Castrol Edge 5W-30 and Mobil 1 0W-40 are LL-01 approved, but not all formulations are. When in doubt, check the oil manufacturer’s website.

What happens if I use 5W-40 instead of 5W-30?

5W-40 is not an approved viscosity for the M54, but it won’t cause immediate damage. The thicker high-temperature viscosity can reduce fuel economy and increase wear on the VANOS system, which relies on precise oil pressure. If you’re in a pinch, it’s better than nothing, but swap it out at the next change. For a high-mileage engine, 0W-40 is a better choice than 5W-40 because it flows better at startup.

How often should I check the oil level?

Check the dipstick every other fuel fill-up, especially if your car burns oil. The M54’s oil level sensor is not always accurate, and the dipstick is the definitive source. Low oil level can cause the VANOS to rattle and, in severe cases, damage the timing chain guides. A 30-second check is worth the peace of mind.

Do I need to use BMW brand oil?

No. BMW doesn’t make oil; they license the LL-01 spec to oil companies. You just need oil that carries the LL-01 approval. Brands like Castrol, Mobil 1, Shell, and Liqui Moly all offer LL-01 certified oils. Buying BMW-branded oil just means you’re paying extra for the same thing.

What Most DIYers Get Wrong (And How to Avoid It)

Three mistakes pop up again and again in forums and my own garage. Avoid them and your M54 will run another 100,000 miles.

• Over-tightening the drain plug. The aluminum oil pan threads strip easily. Always use a torque wrench set to 18 ft-lbs. If you strip the threads, you’re looking at a new oil pan or a helicoil repair – both are painful.
• Over-tightening the filter cap. The plastic cap cracks if you gorilla it. 25 Nm is the max. If the cap is already cracked, replace it before it fails and dumps oil on the alternator.
• Using the wrong oil filter. The M54 takes a specific filter with a specific bypass valve. A cheap filter might not have the correct anti-drainback valve, causing dry starts and extra wear. Stick with Mann, Mahle, or Hengst.

If you own a 2026 BMW 540i with the V8, the oil spec is different – check our 2026 BMW 540i guide for that engine. And if you’re comparing to other BMW models, our 2026 BMW 535i oil type guide covers the N55 engine, which has its own quirks.

Now go change that oil. Your 325i will thank you.
