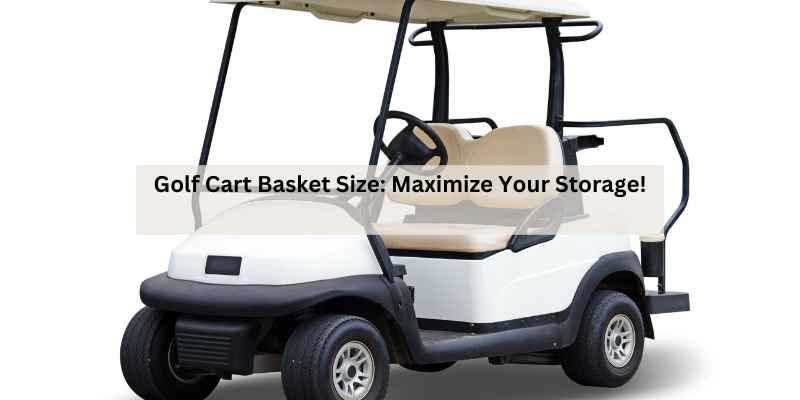

Golf Cart Basket Size: A Fitment Guide That Actually Works

You bought a basket online, it showed up in a box, and the mounting brackets don’t line up with anything on your cart. Sound familiar? It happens all the time. Most people assume a golf cart basket is a golf cart basket. It isn’t. The distance between your front bumper mounting holes, the angle of the frame, and even the year of your cart all change what fits.

This guide walks through the real measurements for the three major brands, explains how to measure your own bumper so you stop guessing, and covers the safety stuff most product listings skip. You’ll know exactly what to look for before you spend money.

If you want a solid universal option that covers most late-model carts, the JY PERFORMANCE Golf Cart Front Inner Basket is a good place to start. It mounts to the front inner area, includes five different bracket types for EZGO and Club Car models, and measures 33.6 inches wide by 5.1 inches deep by 4.1 inches tall. That depth is shallow, which we’ll talk about below.

Why Golf Cart Basket Size Matters More Than You Think

Slapping an oversized basket on the front of a cart changes how it drives. The steering gets heavier, and the front tires wear unevenly. A basket that sticks out too far forward acts like a lever. Every bump in the path gets amplified through the steering column.

There is also a real difference between a front basket and the rear bag well. The bag well is that open area behind the rear seat where golf bags sit. It is usually 15 to 18 inches wide and deeper than any front basket. People confuse the two when reading specs, then complain the basket they ordered is too small. They are different parts with different jobs.

Getting the size right matters because a basket that sits too high can block your view of the path ahead. One that sits too low scrapes on driveways and speed bumps. The width matters because a basket wider than the front cowl looks odd and can catch on trees or garage door frames.

Standard Golf Cart Basket Dimensions (Quick Reference Table)

Here are the typical measurements you will see from aftermarket brands. These are averages, not exact factory specs. Always measure your own cart before ordering.

Cart Model	Width (inches)	Depth (inches)	Height (inches)	Mounting Width (inches)
EZGO TXT (1994+)	30-34	5-7	4-6	18-20
EZGO RXV	30-33	5-7	4-6	16-18
Club Car DS (2026+)	28-32	5-7	4-6	17-19
Club Car Precedent	30-34	5-7	4-6	18-20
Yamaha Drive	30-33	5-7	4-6	17-19

Width, Depth, and Height Explained

Width is the side-to-side measurement across the front of the cart. This is what most people check first, and it is the least likely to cause problems. Most front cowls are around 34 inches wide, so a 33-inch basket fits visually.

Depth is the measurement from the front of the basket back toward the windshield. This is where the JY PERFORMANCE basket sits at 5.1 inches. That is enough for a water bottle, a phone, golf balls, and gloves. It is not enough for a cooler or a large tool bag. If you plan to haul bulkier items, look for a basket with 7 to 9 inches of depth.

Height matters for visibility. A basket that rises above the dashboard line can block your view of the ground directly in front of the cart. It also matters if you have a custom windshield. Some windshields curve down close to the dash, leaving no room for a tall basket.

EZGO Basket Dimensions (RXV vs. TXT)

The EZGO TXT and RXV look similar from a distance, but the front frames are different. The TXT has a wider front cowl and the mounting points sit further apart. Most TXT baskets use a mounting width of 18 to 20 inches. The RXV is narrower at 16 to 18 inches.

You cannot swap a TXT basket onto an RXV without using a universal bracket kit. The holes will not line up. Also note that the TXT Freedom and the T48 models have a different front body style. The JY PERFORMANCE basket lists that it does not fit those models, so check your specific trim level before ordering anything.

For the RXV, pay attention to the depth. The RXV front cowl has less vertical space, so a deeper basket can interfere with the steering column. Stick to a depth of 6 inches or less.

Club Car Basket Dimensions (DS vs. Precedent)

Club Car changed the front body design significantly when they moved from the DS to the Precedent. The DS has a flat, wide front bumper. The Precedent has a more rounded, aerodynamic nose. That changes where the mounting brackets sit.

For a DS from 2026 and newer, the mounting width is roughly 17 to 19 inches. Older DS models, from before 2026, have a different front frame. Most modern aftermarket baskets do not fit them without custom drilling. The Precedent uses a mounting width of 18 to 20 inches.

One thing to watch on the Precedent: the front inner basket area is shallower than the DS. You get less usable depth. If you need to carry tools or a lunch box, consider a basket with a deeper profile or mount it above the dash instead.

Yamaha Basket Dimensions (Drive vs. Adventurer)

Yamaha carts are less common in aftermarket fitment guides, which leads to frustration. The Yamaha Drive and Drive2 have a similar front mounting setup, using a width of about 17 to 19 inches. The Adventurer models, which are more utility-focused, have a heavier front bumper and may require a different bracket.

Many universal baskets work on Yamaha carts, but you will likely need to use the adjustable brackets included in the kit. The JY PERFORMANCE basket includes five types of mounting brackets, which gives you room to adapt. That is the kind of flexibility you need with a Yamaha.

Check the height clearance on a lifted Yamaha. A lift kit raises the body but not the steering column, so the angle between the dash and the bumper changes. That can make a basket sit at an odd tilt.

How to Measure Your Golf Cart Bumper Correctly

Grab a tape measure and write these numbers down. It takes five minutes and saves you a return shipping fee.

1. Measure the width of the front bumper from outer edge to outer edge.
2. Measure the distance between the two outermost mounting holes on the bumper.
3. Measure the distance between the two innermost mounting holes.
4. Measure the depth from the front edge of the bumper back to the nearest obstruction (like the steering column or dash).
5. Measure the vertical clearance from the top of the bumper up to the bottom of the windshield.

Compare those numbers to the mounting width in the product listing. If the listing says it fits a 2026 Club Car Precedent, but your mounting holes are 22 inches apart, it will not fit without modification.

Front Mount vs. Above Dash vs. Rear Bag Well

You have three main places to add storage. Front mount baskets attach to the bumper and sit low. They are easy to reach from the driver’s seat and do not block the windshield. The downside is they collect dirt and water from the road.

Above dash baskets sit on top of the dashboard. They are great for phones, sunglasses, and small items you want in view. They are not for heavy items. The dash is usually plastic and cannot support much weight.

The rear bag well is the biggest storage area. It is designed for golf bags, but you can put coolers, toolboxes, or camping gear back there. The size is less standardized, so measure the width and depth before buying a liner or organizer.

Weight Capacity and Safety Limits

Most front baskets hold 10 to 25 pounds. That sounds like a lot until you put a six-pack of drinks, a bag of ice, and a phone charger in there. The weight limit is not just about the basket itself. It is about the plastic bumper mounts.

An overloaded basket makes the front end bounce more on rough terrain. That translates to less steering control at speed. It also accelerates wear on the front bushings and tie rod ends. If you carry heavy items regularly, use the rear bag well instead.

Keep the heavy stuff low and close to the cart body. A basket that sticks out far forward puts more stress on the mounting points. The JY PERFORMANCE basket, at 5.1 inches deep, keeps items close to the cowl, which is a smart design for weight distribution.

Universal vs. Brand-Specific Mounting Kits

Brand-specific baskets are built for exact hole patterns. They bolt on in minutes. The downside is price and availability. Universal baskets use adjustable brackets and sliding plates to adapt to different widths.

Universal kits are more forgiving if your cart has a non-standard bumper. A replacement bumper from a third-party brand might have slightly different hole positions. The adjustable brackets let you shift the basket left or right to center it.

The trade-off is installation time. A universal kit takes longer to set up because you have to figure out which bracket goes where and how far to adjust it. The JY PERFORMANCE basket ships with five bracket types, which covers most EZGO and Club Car models from the last two decades. That is a practical approach for a universal part.

Common Mistakes When Buying a Basket (Lift Kits & Windshields)

Lifted carts change everything. A 4-inch lift kit raises the body, but the front bumper mounting points stay in the same relative position. The issue is the windshield. A lifted cart often has a taller windshield that extends down further. A basket with a height over 5 inches can hit the windshield when you turn the steering wheel.

Custom windshields are another trap. Folding windshields have hinges that sit right above the dash. A basket that sits too high will block the hinge from opening. Measure the clearance from the top of the bumper to the bottom of the windshield frame before you buy.

Another mistake is ignoring the depth. A basket that is 4 inches deep looks small but works fine for everyday items. A basket that is 8 inches deep holds more but sticks out further. On a narrow cart path, that extra depth can clip a passing branch or a fence post.

Step-by-Step Installation Guide for a Perfect Fit

Installation is straightforward if you follow this sequence. You will need a socket set, a screwdriver, and about 30 minutes.

1. Park the cart on a flat surface and turn the wheels straight.
2. Hold the basket up to the bumper and mark where the brackets need to sit.
3. Attach the mounting brackets to the basket loosely using the supplied hardware.
4. Position the basket against the bumper and align the brackets with the existing holes.
5. Tighten the bracket bolts, then tighten the bolts that secure the basket to the brackets.
6. Test the fit by turning the steering wheel fully left and right. Ensure nothing rubs against the basket.
7. Load a few items and drive around the block to check for rattles.

If the holes do not line up, do not drill into the frame immediately. Check if the brackets can be swapped from one side to the other. Some universal kits have mirrored brackets that look identical but mount differently.

Frequently Asked Questions

Will a universal basket fit my 2026 EZGO RXV?

Most universal baskets with adjustable brackets will fit an RXV. The key measurement is the mounting width, which should be between 16 and 18 inches. The JY PERFORMANCE basket includes brackets that cover this range. Check the depth too; the RXV has limited space between the bumper and the steering column.

What is the difference between a front basket and a rear bag well?

A front basket mounts to the bumper and holds light items like phones, gloves, and balls. The rear bag well is the open cargo area behind the rear seat, built to hold golf bags. The bag well is wider and deeper, and it supports much more weight. Do not use the front basket for heavy loads.

Can I put a cooler in a front golf cart basket?

A small six-pack cooler fits in a basket with at least 7 inches of depth. A standard 12-can cooler will not fit in most front baskets because they are too shallow. Use the rear bag well or a rear seat cargo box for coolers.

Do I need to drill holes to install a front basket?

Not usually. Most carts have pre-existing holes in the front bumper for the factory basket. Universal kits use these holes with adjustable brackets. If your cart is older or has a replacement bumper, you might need to drill, but that is the exception, not the rule.

How much weight can a front basket hold?

Most front baskets are rated for 10 to 25 pounds. The plastic bumper mounts are the weak point. Exceeding the limit makes the front end bounce and can crack the cowl. Keep heavy items in the rear bag well.

Final Verdict: Choosing the Right Size

Start with the measurements, not the brand name. Measure your bumper width, mounting hole distance, and depth clearance. Then compare those numbers to the product listing.

• Measure the mounting hole distance on your specific cart year, not the generic model name.
• Keep depth under 6 inches for front baskets to avoid blocking the steering column.
• Check windshield clearance on lifted carts before buying a basket taller than 5 inches.
• Use the rear bag well for anything heavier than 25 pounds.
• Universal kits with multiple bracket types, like the JY PERFORMANCE basket, offer the most flexibility for mixed fleets.
• Always test the full steering range after installation to catch interference early.
• If you drive on rough paths regularly, consider a basket with a solid steel bottom for durability.

Getting the golf cart basket size right is a 10-minute measuring job that prevents a 30-minute return headache. Do that, and you are set. If you are also thinking about safety upgrades, check out this guide on golf cart seat belts while you are at it. And if you are unsure about your cart’s power setup, this article on how many batteries is worth a read.
