Where Is Cylinder 5 on a 5.3 Chevy? Driver-Side Bank
On a Chevy 5.3 LS-family V8, cylinder 5 is typically the third cylinder back on the driver-side bank. Get the bank wrong and you can chase the wrong coil, plug, or injector, wasting time on a P0305 diagnosis. This guide shows the cylinder layout and a fast under-a-minute bank check.
Where is cylinder 5 on a 5.3 Chevy?

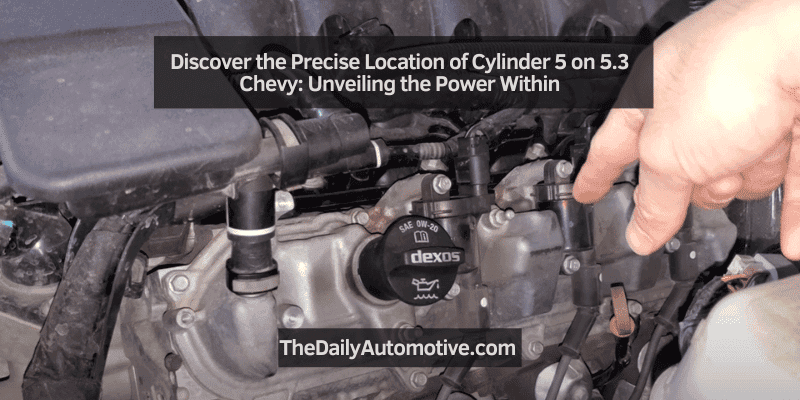

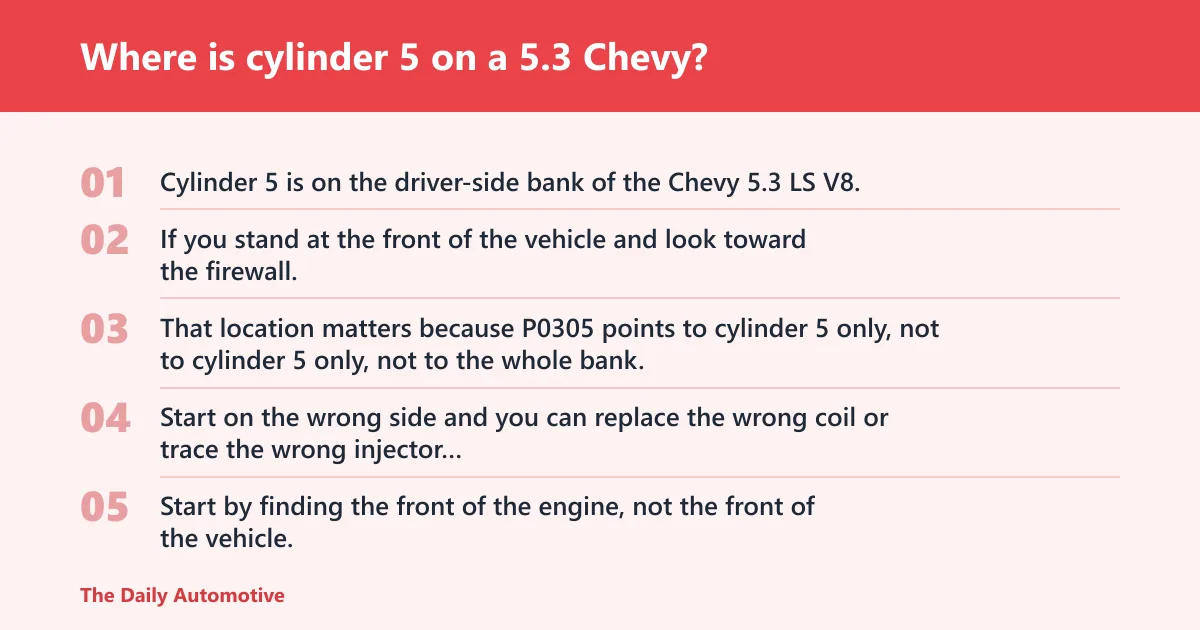

Cylinder 5 is on the driver-side bank of the Chevy 5.3 LS V8, and it is the third cylinder back from the front of the engine. If you stand at the front of the vehicle and look toward the firewall, the driver-side cylinders are counted front to rear in order.
That location matters because P0305 points to cylinder 5 only, not to the whole bank. Start on the wrong side and you can replace the wrong coil or trace the wrong injector circuit before you reach the real fault.

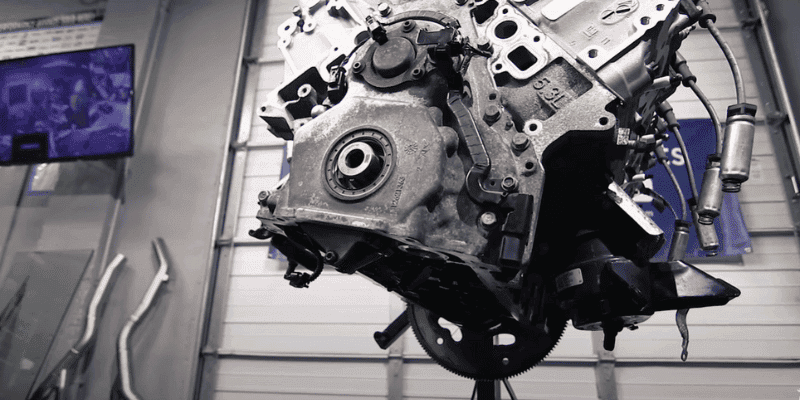

How to orient the engine before you count
Start by finding the front of the engine, not the front of the vehicle. On a longitudinal LS layout, the front is the accessory-drive side, and the cylinders count toward the firewall. That orientation keeps the numbering straight.
If the engine is still in a vehicle, the driver side is the left side as you sit in the driver’s seat. If the engine has been swapped into a different chassis, confirm which side is actually the driver side before you trust the layout.
How Chevy 5.3 cylinder numbering works
Chevrolet 5.3 V8 engines use odd-numbered cylinders on the driver’s side and even-numbered cylinders on the passenger side. On the LS-family 5.3, the odd cylinders run 1-3-5-7 on the driver side, while the even cylinders run 2-4-6-8 on the passenger side.
The numbering usually runs front to rear on each bank. You do not count across the engine bay in a zigzag pattern. You count straight back along each valve cover.
Driver-side and passenger-side cylinder numbers
| Bank | Front cylinder | Second | Third | Rear cylinder |
|---|---|---|---|---|
| Driver side | 1 | 3 | 5 | 7 |
| Passenger side | 2 | 4 | 6 | 8 |
This is the quick mental map to keep in view: odd on the driver side, even on the passenger side. That pattern is the same reference point used when a scan tool shows a cylinder-specific misfire code such as P0305.

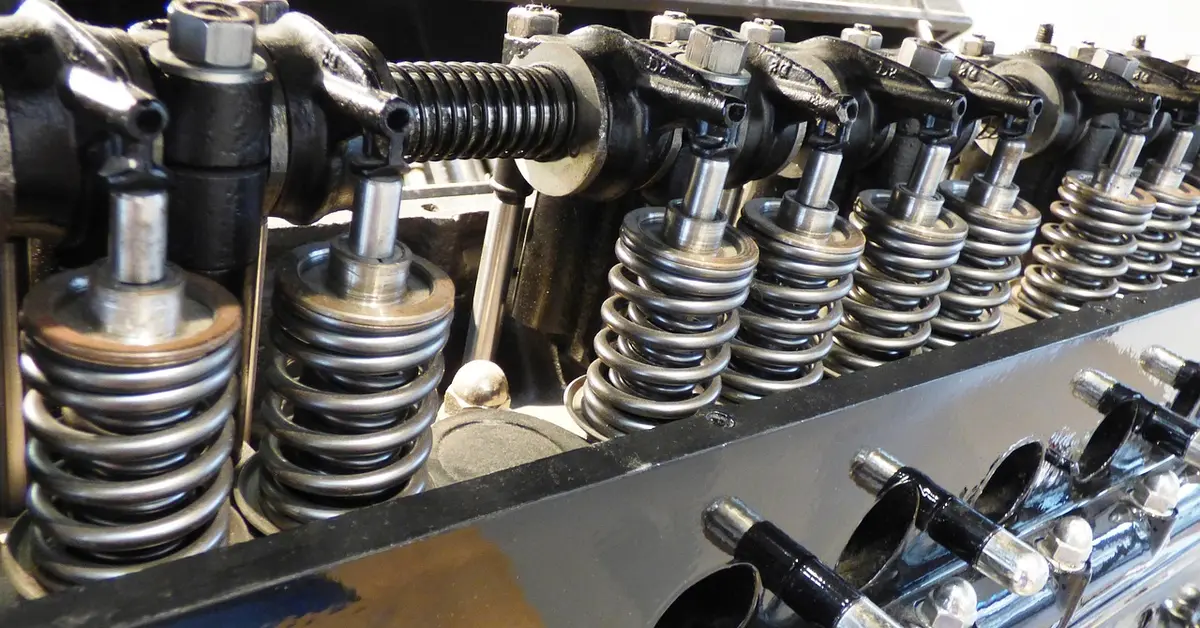

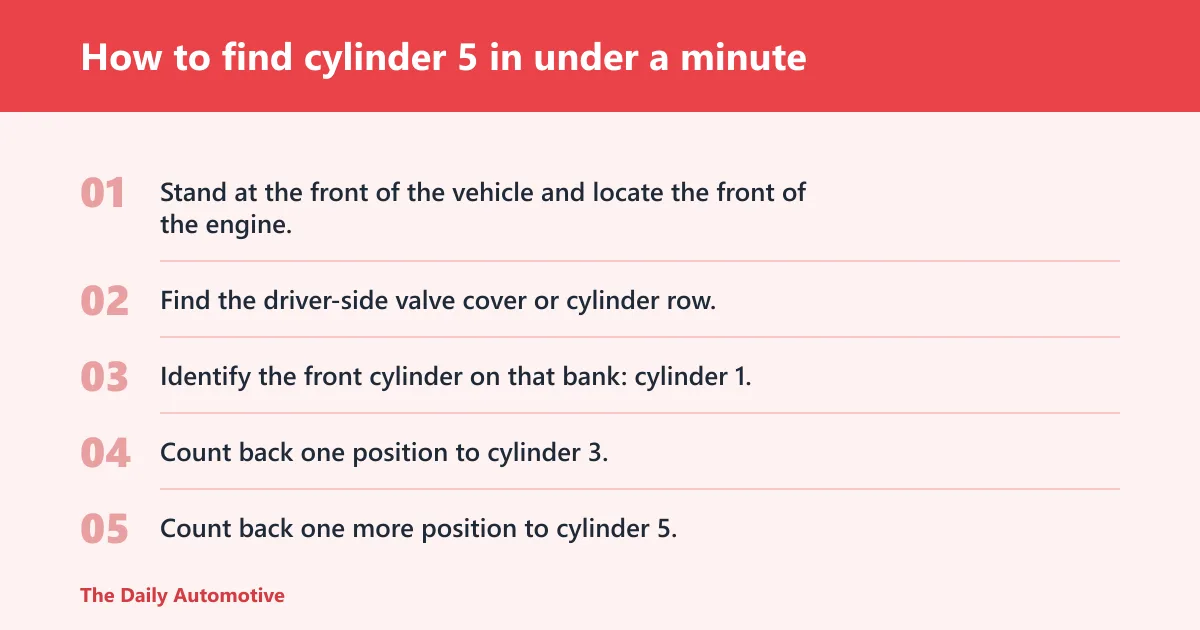

How to find cylinder 5 in under a minute
Start at cylinder 1 on the driver side and count back along the bank until you reach the third position. That is cylinder 5. A quick visual pass across the valve cover, coil pack row, or plug-wire routing can confirm the count without guesswork.
The fastest check is to identify the driver-side bank first, then count the three odd cylinders in order. If the engine layout is stock, cylinder 5 will be the middle odd cylinder on that side.
- Stand at the front of the vehicle and locate the front of the engine.
- Find the driver-side valve cover or cylinder row.
- Identify the front cylinder on that bank: cylinder 1.
- Count back one position to cylinder 3.
- Count back one more position to cylinder 5.
- Match the coil, plug wire, or injector at that third position.
Use the valve cover and plug path as visual cues
On many LS setups, the coil packs or plug-wire routing follow the same front-to-rear order as the cylinders. That gives you a second check. If the third position on the driver side lines up with the component you need, you are at cylinder 5.
Suppose a scan tool shows P0305 after a rough idle. You can walk to the driver side, count the cylinders back from the front, and confirm the correct coil or injector in less than a minute before swapping parts.
What changes on swapped or mirrored installs
A mirrored chassis or swap can flip what you expect to see from the radiator side, so do not trust memory alone. Verify which side is actually the driver side in the finished installation, then count front to rear on that bank. If the engine faces a different direction than stock, use service data or the engine tag before making parts decisions.
A common first-timer mistake is reading the engine from the wrong end after a swap. That can make cylinder 5 look like it belongs on the opposite bank even though the LS numbering itself has not changed.
Is cylinder 5 on the passenger side or driver side?
Cylinder 5 is on the driver side, not the passenger side, on LS-family 5.3 engines. Chevrolet 5.3 V8 engines use odd cylinders on the driver side and even cylinders on the passenger side, so cylinder 5 belongs with the odd-numbered group.
The most common mix-up is assuming the bank nearest the battery, air box, or brake booster is always one specific bank. That is not a reliable way to identify cylinder 5. Use the driver-side reference and the front-to-rear count instead.
Common mix-ups that send you to the wrong bank
Accessories can hide the cylinder row. Air intake tubes, intake manifolds, heat shields, and aftermarket headers can make one side look more crowded than the other. None of that changes the numbering scheme.
If the engine is sitting in an unfamiliar chassis, do not use the side with the easiest access as your guide. Use the driver-side bank and count 1-3-5-7 from front to rear.

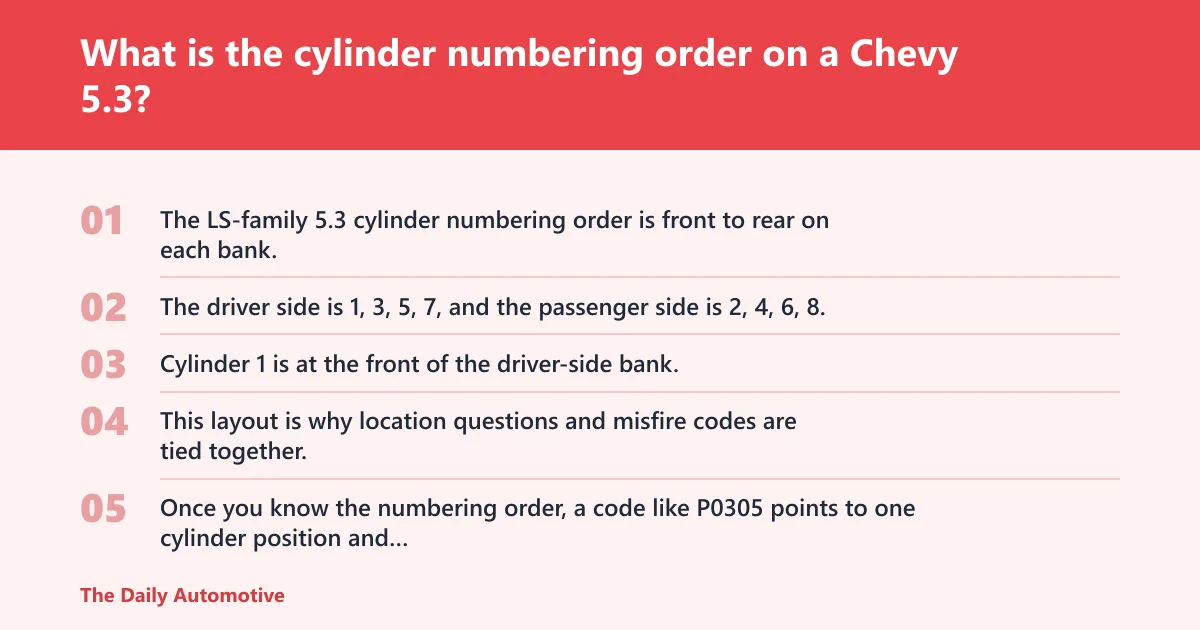

What is the cylinder numbering order on a Chevy 5.3?
The LS-family 5.3 cylinder numbering order is front to rear on each bank. The driver side is 1, 3, 5, 7, and the passenger side is 2, 4, 6, 8. Cylinder 1 is at the front of the driver-side bank, and cylinder 5 is the third position back on that same side.
This layout is why location questions and misfire codes are tied together. Once you know the numbering order, a code like P0305 points to one cylinder position and one bank, which narrows your checks fast.
Why firing order matters for diagnosis
Firing order is the sequence the spark plugs fire, and it helps you understand how a misfire can move through the engine. For a cylinder-specific fault, you still start with the numbered cylinder location first, then check the coil, plug, injector, and related wiring at that spot.
That keeps diagnosis focused. The firing order matters, but it does not replace the cylinder map. A cylinder that misfires under load can still be found by its number and bank before you look deeper into timing or control issues.
Which bank is cylinder 5 on in a 5.3 LS?
Cylinder 5 is on the driver-side bank in a 5.3 LS. In GM terms, that means it is part of the odd-numbered cylinder group on that side of the engine. If you are standing at the front of the vehicle and looking toward the firewall, it is the third cylinder back on the left side.
This is the quick bank answer you want when a scan tool sets P0305. Bank 2 is generally the driver side on this layout, so the fault search starts there.
What P0305 means during misfire diagnosis
P0305 is the cylinder-specific misfire code tied to cylinder 5. It tells you where the engine control system saw a problem, not what part failed. That means the next step is to check the ignition, fuel, and mechanical basics at cylinder 5 before replacing unrelated parts.
Start with the obvious items: coil, spark plug, injector connector, and the condition of the wiring at the third cylinder back on the driver side. If the fault follows a coil swap, that points to ignition hardware. If it stays with cylinder 5, look farther into wiring, fuel delivery, or engine condition.
What to verify before replacing parts
- Confirm the cylinder number with the bank layout.
- Check the coil connector and plug-wire routing for damage.
- Inspect the spark plug from the correct cylinder position.
- Check the injector connector and nearby wiring for fit or corrosion.
- Clear the code and see whether P0305 returns on the same cylinder.
The point is to localize the problem before buying parts. P0305 does not mean “replace everything on Bank 2.” It means cylinder 5 needs attention first.
One-page cylinder-bank locator for the 5.3 LS
This quick locator puts the LS-family 5.3 cylinder layout on one page. It shows the front-to-rear bank positions and gives you a fast visual check list for cylinder 5 without guessing.
| Position from front to rear | Driver-side bank | Passenger-side bank |
|---|---|---|
| Front | 1 | 2 |
| Second | 3 | 4 |
| Third | 5 | 6 |
| Rear | 7 | 8 |
Quick visual checklist for cylinder 5
- Confirm you are facing the front of the engine.
- Identify the driver side, not the side with the easiest access.
- Count the odd cylinders front to rear: 1, 3, 5, 7.
- Stop at the third position back on the driver side.
- Match the coil, plug wire, or injector at that location.
Which vehicles commonly use this layout
The 5.3 LS engine appears in trucks, SUVs, Suburbans, Tahoes, and vans. It is also used in Cadillac Escalade and GMC Savana vans. That makes the same cylinder map relevant across a wide spread of GM applications.
Common examples include Silverado and Sierra trucks, Tahoe and Suburban SUVs, Escalade, and Savana vans. The cylinder layout stays the same for the LS-family 5.3, even though the packaging around it can differ.
What if the engine layout does not match the truck?
If the layout does not match the truck, verify the engine orientation before you trust the cylinder count. Swaps, conversions, and unusual accessory layouts can make a standard LS engine look unfamiliar, but they do not change the numbering scheme itself.
Check the engine tag, the service information for the exact engine family, or the owner’s manual if the vehicle is stock. If the chassis has been altered, confirm which side is the driver side in the finished install before diagnosing P0305.
What to verify on swaps and conversions
Look for the engine’s physical front, then identify the valve cover on the driver side and count the cylinders in order. If the intake, accessories, or exhaust routing makes the engine bay hard to read, use service data for the exact application instead of assuming the layout by appearance.
This matters because mirrored installs can mislead even experienced DIY owners. The numbering does not move, but the visual cues around the engine bay can.
Frequently asked questions
Where is cylinder 5 on a 5.3 Chevy?
Cylinder 5 is the third cylinder back on the driver-side bank of a Chevy 5.3 LS-family V8. If you face the front of the engine and count from the front toward the firewall, the driver side reads 1, 3, 5, 7. Cylinder 5 is the middle odd cylinder on that bank.
Is cylinder 5 on the passenger side or driver side?
Cylinder 5 is on the driver side. Chevrolet 5.3 V8 engines use odd-numbered cylinders on the driver’s side and even-numbered cylinders on the passenger side. That puts cylinder 5 with the odd group, not the even group.
What is the cylinder numbering order on a Chevy 5.3?
The LS-family 5.3 uses front-to-rear numbering on each bank. The driver side is 1, 3, 5, 7, and the passenger side is 2, 4, 6, 8. Cylinder 1 is at the front of the driver-side bank, and cylinder 5 is the third position back on that same side.
Which bank is cylinder 5 on in a 5.3 LS?
Cylinder 5 is on the driver-side bank, which is the odd-cylinder bank on a 5.3 LS. If you are diagnosing P0305, start there first. Counting from the front of the engine, cylinder 5 is the third cylinder on that bank.
How do I find cylinder 5 for a misfire diagnosis?
Find the front of the engine, identify the driver-side bank, and count the cylinders front to rear until you reach the third position back. Then check the coil, spark plug, injector connector, and nearby wiring at that exact cylinder. P0305 points you there, but it does not tell you which part failed.
What vehicles use the Chevy 5.3 LS engine?
The 5.3 LS engine appears in trucks, SUVs, Suburbans, Tahoes, and vans. It is also used in Cadillac Escalade and GMC Savana vans. Because the cylinder layout stays the same across those applications, the same driver-side and passenger-side numbering guide applies.
