What Does It Mean to Gap a Car Spark Plug? A Quick Guide
To gap a spark plug means setting the distance between the center and ground electrodes to the engine maker’s spec, usually by bending the ground strap only. If the gap is too wide or too narrow, you can get misfires, hard starts, weak fuel economy, and earlier ignition-coil wear. This guide shows how to check the gap, adjust it correctly, and tell whether you need a reset, a different plug, or a full replacement.
The spark plug gap is the space the spark must jump. It is measured in thousandths of an inch or millimeters. The center electrode and the ground electrode form that space, and the spark ignites the fuel-air mixture across it.

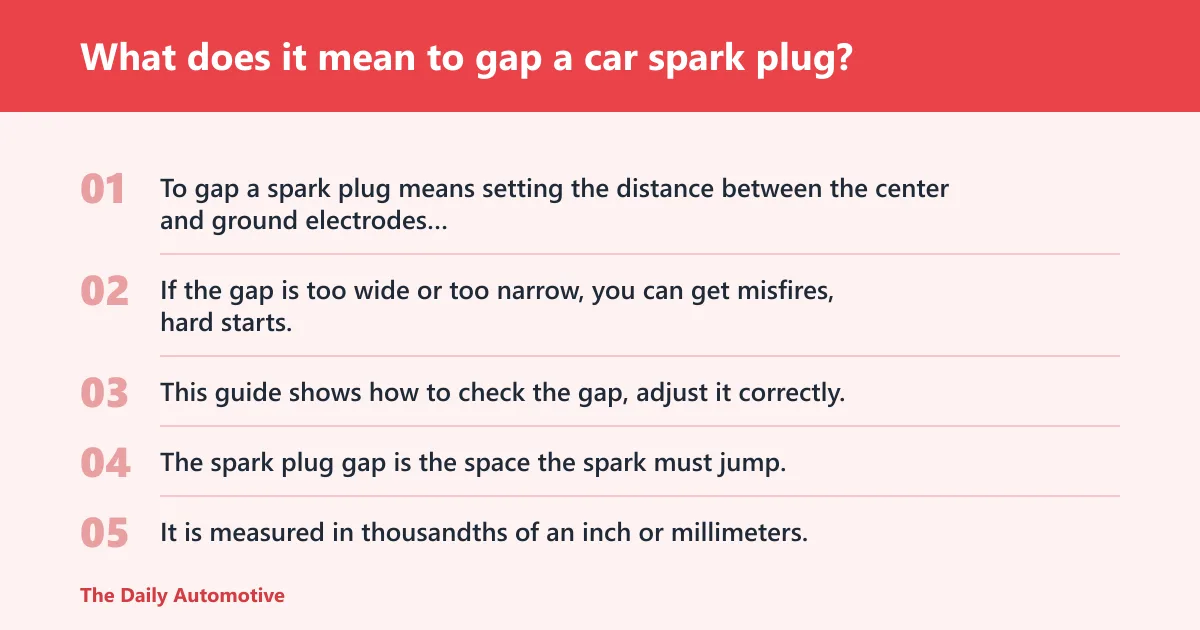

What does it mean to gap a car spark plug?
In plain language, gapping is not only measuring. It is a setup step. You check the opening, compare it with the manufacturer specification, and change it if needed.
Why the correct gap matters for ignition
The spark has to cross the gap at the right voltage for the engine. If the gap is correct, the spark can ignite the fuel-air mixture efficiently. If the gap is off, ignition becomes less reliable.
Too wide means the spark has farther to jump. Too small means the spark path is shortened, but the spark can be weaker. Both can hurt starting and idle quality.
Center electrode and ground electrode
The center electrode sits in the middle of the plug tip. The ground electrode sits across from it and is the part you adjust. On a standard plug, changing the ground electrode changes the gap. Do not pry on the center electrode or force the tip.

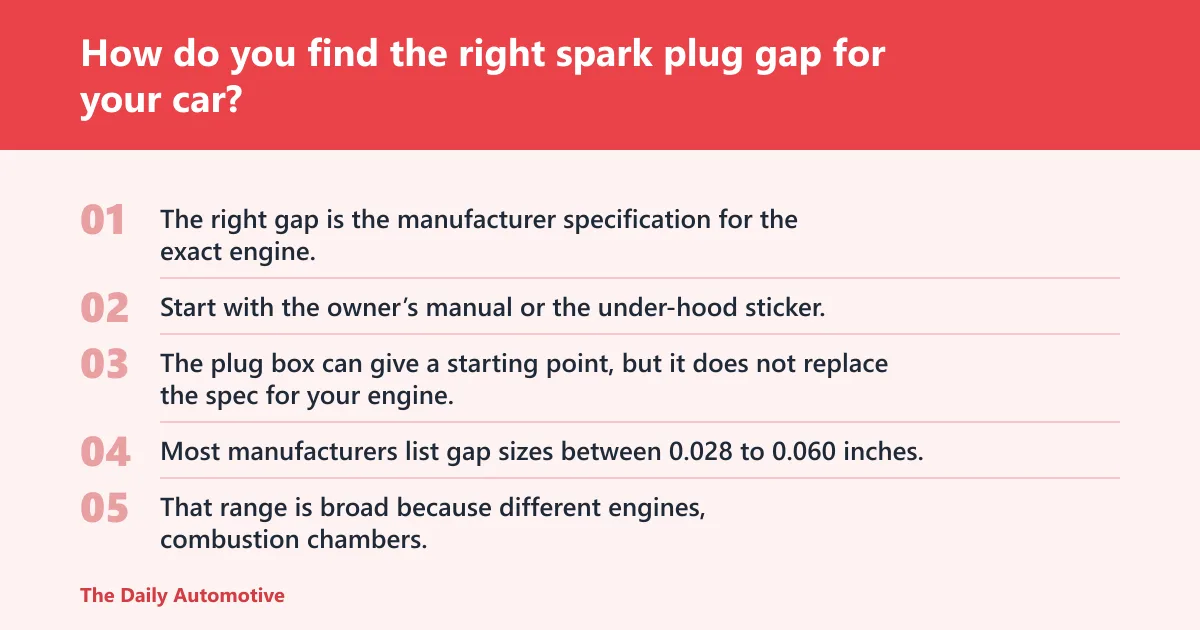

How do you find the right spark plug gap for your car?
The right gap is the manufacturer specification for the exact engine, not a guess based on the vehicle name alone. Start with the owner’s manual or the under-hood sticker. The plug box can give a starting point, but it does not replace the spec for your engine.
Most manufacturers list gap sizes between 0.028 to 0.060 inches. That range is broad because different engines, combustion chambers, and ignition systems need different settings.
Where to look for the specification
Start with the owner’s manual. If that is missing, check the under-hood label or service data for the engine code. A spark plug listed for the wrong engine family can come pre-set to a different gap.
Say your parts store hands over a plug boxed for the same model year but a different engine option. The plug may fit the threads and still have the wrong gap. That is a spec problem, not a measuring problem.
| What you find | What it usually means | What to do |
|---|---|---|
| Owner’s manual lists one value | That is the target for the engine | Set the plug to that value |
| Under-hood sticker lists a value | Often the same engine-specific spec | Use it before adjusting |
| Plug box lists a gap | Usually a starting point, not final proof | Measure and compare to spec |
| Spec cannot be found | Risk of guessing the wrong gap | Stop and verify before touching the electrode |

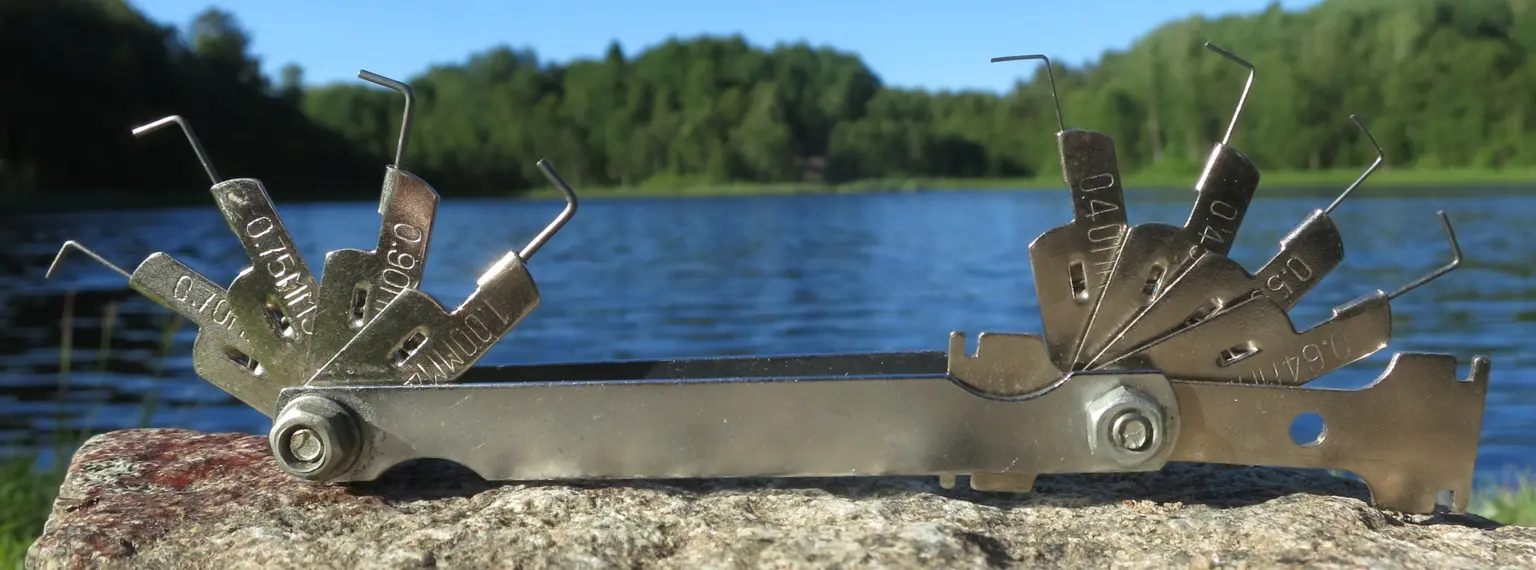

What tools do you need to measure and adjust the gap?
A spark plug gap gauge or a feeler gauge can be used to measure the gap. A dedicated gap gauge makes quick checks easier. A feeler gauge uses thin metal blades with known thicknesses. Both should pass between the center and ground electrode with slight resistance. (en.wikipedia.org)
That slight resistance matters. If the gauge falls through loosely, the gap is too large for that blade. If it will not slide in, the gap is too tight for that size.
Feeler gauge basics
A feeler gauge is useful when you want a specific thickness. Pick the blade that matches the spec, insert it between the electrodes, and feel for a light drag. Do not force the blade.
Spark plug gap gauge basics
A spark plug gap gauge is a dedicated measuring tool. Many are coin-style or wire-style. Use the marking that matches the spec, then check the gap. The goal is the same: a controlled, repeatable measurement.
How do you gap a spark plug correctly?
Gap the plug by measuring first, then adjusting the ground electrode gently, then checking again. The goal is a precise match to the manufacturer specification, not a rough bend or a guess. If the plug design is delicate, stop if the electrodes show wear, chips, or cracking.
- Confirm the exact gap specification for the engine.
- Measure the plug with a spark plug gap gauge or feeler gauge.
- Compare the reading to the spec before changing anything.
- Adjust only the ground electrode, and bend it slightly.
- Recheck the gap after each adjustment.
- Replace the plug if the tip is damaged or worn.
Adjust the ground electrode gently
Changing the ground electrode changes the gap. Move it in small steps. Do not strike it, twist it hard, or use improvised tools that can crack the ceramic or deform the tip. The center electrode should stay untouched.
Some iridium and platinum plugs have fine tips and pre-set gaps that are easy to disturb. If a plug is designed to be left alone and the spec already matches, do not force an adjustment just because the box says “pre-gapped.”
Recheck after every change
Each bend changes the reading. That is why gapping is a back-and-forth process: measure, adjust, measure again. Stop only when the gauge slides with slight resistance at the specified size.
When should you re-gap, replace, or stop and verify the spec?
Use the condition of the plug and the measured gap to decide your next move. Re-gap a healthy plug that is merely out of spec. Replace a plug with visible damage, worn electrodes, or a cracked insulator. Stop and verify the engine spec if the plug type is unclear or the numbers do not match the engine data.
Decision checklist
- Re-gap if the plug is new or lightly used, undamaged, and the only problem is a gap that is slightly off spec.
- Replace if the ground electrode is eroded, the center electrode looks worn, the insulator is cracked, or the firing tip is damaged.
- Stop and verify the spec if the engine code is unknown, the plug box conflicts with service data, or you are comparing gasoline-engine guidance to a diesel vehicle.
- Do not adjust delicate plugs that are already within spec unless the maker says they are adjustable.
- Check pre-gapped plugs before installation, because shipping, handling, and box mix-ups can leave the actual gap off target.
For example, if new plugs are marked at a larger gap than the engine spec calls for, they may need to be adjusted to match the spec. That is not a “close enough” issue. You either set them to 0.032 inch or choose the correct plug type if the design should not be bent.

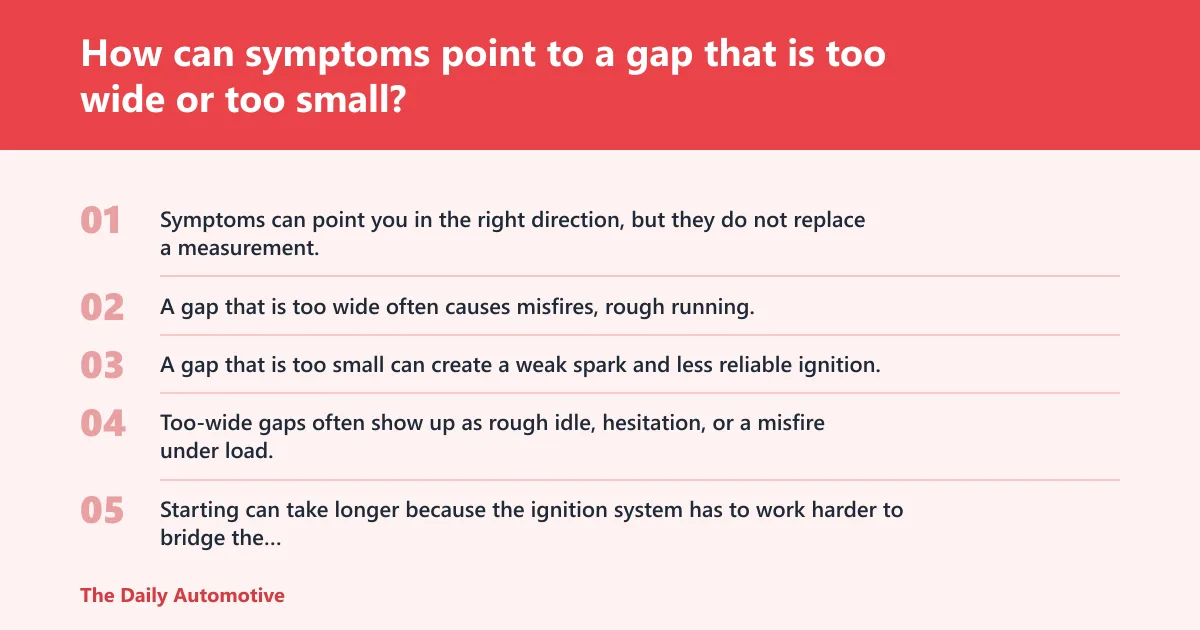

How can symptoms point to a gap that is too wide or too small?
Symptoms can point you in the right direction, but they do not replace a measurement. A gap that is too wide often causes misfires, rough running, and hard starts because the spark has farther to jump. A gap that is too small can create a weak spark and less reliable ignition.
Clues that the gap may be too wide
Too-wide gaps often show up as rough idle, hesitation, or a misfire under load. Starting can take longer because the ignition system has to work harder to bridge the larger space. If the engine starts to shake under acceleration, the plug gap is one possible cause.
Clues that the gap may be too small
Too-small gaps can reduce spark intensity. The engine may start, but combustion may be less consistent, especially under conditions that need a stronger spark. If the plug looks clean but the engine still feels lazy or uneven, recheck the measurement before assuming the plug is fine.
Why direction matters
The symptoms can overlap. That is why the measured gap matters more than guessing from the sound of the engine. A misfire can come from the wrong gap, but it can also come from worn plugs, coil problems, vacuum leaks, fuel issues, or sensor faults.
A common first-timer mistake is to see a rough idle and bend every plug the same way without checking the spec. If the engine needs 0.032 inch and the plug was already at 0.033 inch, the real fix may be elsewhere, not in the electrode position.
Will the wrong spark plug gap cause a misfire?
Yes. A gap that is too wide can cause misfires and rough engine running, and a gap that is too small can create a weak spark that also hurts ignition reliability. The wrong gap can be enough to upset the fuel-air mixture under load or during cold starts.
A misfire is one of the clearest signs that spark quality is off, but it is not proof by itself. Use the gap reading as one part of the diagnosis. If the plug is damaged or badly worn, replacement may be the correct fix instead of another adjustment.
Can I use a feeler gauge to gap spark plugs?
Yes. A feeler gauge is one of the standard tools for checking spark plug gap, and it can also help set the opening to the correct size. Insert the blade between the center and ground electrode, and look for slight resistance rather than a loose slide or a forced fit.
A spark plug gap gauge can do the same job with a purpose-built shape. Use whichever tool gives you a clear, repeatable reading. The point is accuracy, not the tool’s brand or style.
Do pre-gapped spark plugs need to be checked?
Yes. Pre-gapped plugs are still worth checking before installation, since shipping and handling can affect the setting and the printed gap may not match the engine spec exactly. A plug that was pre-set for one engine can still be wrong for another engine with the same thread size.
That matters even more with fine-wire plugs. Some are not meant for repeated bending. If the measured gap is close but the plug design is delicate, verify the spec first and decide whether a tiny correction is safe or whether a different part is the better choice.
How do I know the right spark plug gap for my car?
Use the manufacturer specification for the exact engine. Check the owner’s manual, under-hood sticker, or service data, then compare that value with the actual measured gap. Do not rely on the vehicle name alone, because trim level and engine code can change the spec.
Think of the package label as a hint, not a final answer. The plug has to match the engine’s ignition system and combustion needs, not just the car model badge.
Frequently asked questions
What does it mean to gap a car spark plug?
It means setting the distance between the center electrode and ground electrode to the engine maker’s specification. In practice, you measure the opening and adjust the ground electrode if needed. The goal is reliable ignition of the fuel-air mixture, not simply a measurement on a tool.
How do you gap a spark plug correctly?
Check the exact spec first, measure the plug with a spark plug gap gauge or feeler gauge, and then bend the ground electrode slightly if the reading is off. Recheck after each change. If the plug tip is damaged or the design is delicate, replace it instead of forcing an adjustment.
What happens if a spark plug gap is too wide?
A gap that is too wide makes the spark jump a longer distance, which can trigger misfires, rough running, and hard starts. The ignition system may struggle more under load or in cold conditions. That is why the measured gap must match the manufacturer specification, not a rough estimate.
What happens if a spark plug gap is too small?
A gap that is too small can create a weak spark. The engine may run, but ignition of the fuel-air mixture may be less reliable. That can show up as uneven running, poor starting, or a general lack of crispness. Recheck the measurement before replacing other parts.
Do pre-gapped spark plugs need to be checked?
Yes. Pre-gapped plugs can shift during handling, and the listed gap may not be correct for your exact engine. Always compare the plug to the manufacturer specification before installation. If the plug uses a delicate design, confirm that it is safe to adjust before bending anything.
Can I use a feeler gauge to gap spark plugs?
Yes. A feeler gauge is a standard way to measure spark plug gap. Insert the correct blade between the center and ground electrode and look for slight resistance. If the blade is too loose or too tight, adjust the gap gently and recheck until the reading matches spec.
