2026 BMW 328i Fuse Box Diagram: The Year-Specific LCI Guide
On a 2026 BMW 328i LCI, start with the under-dashboard fuse panel for a single dead accessory, then check the driver-side or rear/body electronics area if multiple high-load circuits fail or the fault stays active. Wrong fuse checks waste time, can blow a good circuit, and leave a wiring fault untouched. This guide maps the likely fuse locations, the symptoms they match, and the most probable circuit family.
Where to find the 2026 BMW 328i LCI fuse panels

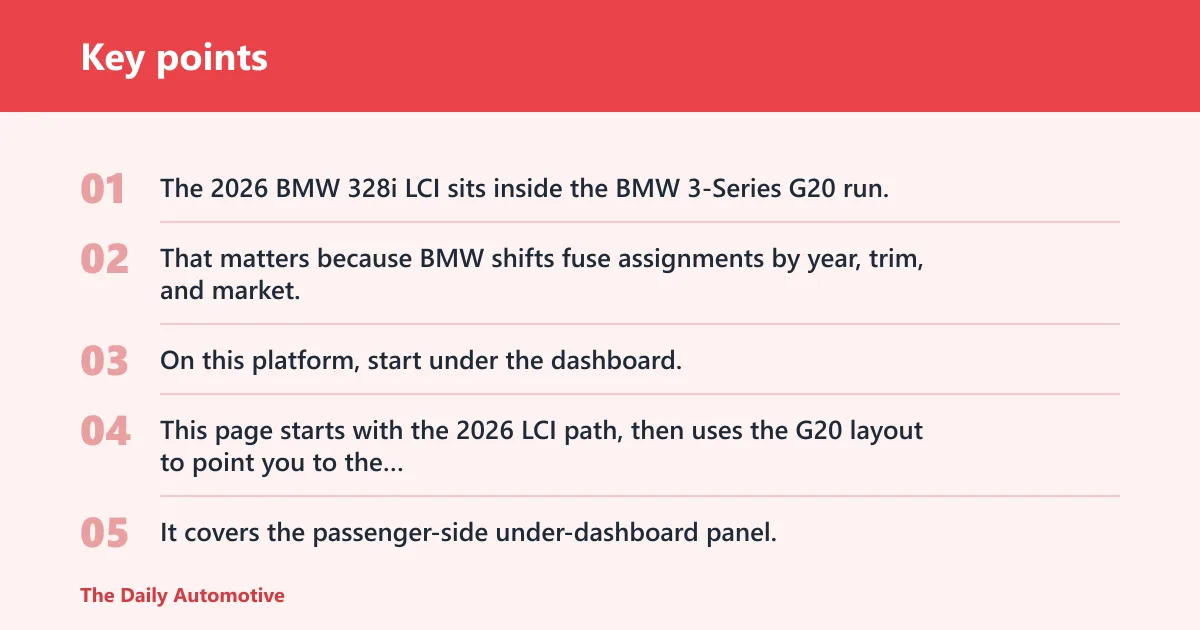

The 2026 BMW 328i LCI sits inside the BMW 3-Series G20 run, which covers roughly model years 2019 to 2026. That matters because BMW shifts fuse assignments by year, trim, and market, so a generic 3 Series chart can send you to the wrong panel. On this platform, start under the dashboard, then move to the Body Domain Controller in the passenger-side pillar, and then to the engine-bay E-box if the fault reaches beyond one accessory.
What this guide covers
This page starts with the 2026 LCI path, then uses the G20 layout to point you to the likely fuse family before you remove random trims. It covers the passenger-side under-dashboard panel, the driver-side under-dashboard panel, the Body Domain Controller, and the driver-side strut tower E-box. That is the fastest way to separate a simple fuse issue from a relay or module problem.
Why year-specific layout matters
BMW 3 Series fuse layouts change by generation, year, and market, and the G20 adds more than one under-dash fuse area plus extra fuses on the Body Domain Controller. The owner’s manual fuse card still matters, but the symptom tells you where to start. A dead USB socket is a different search than a no-crank, no-cooling-fan complaint.
When the fuse chart does not match the car
If the glove-box chart or fuse card does not match what you see, stop treating the chart as a universal map. Check the year, market, and trim first, then confirm whether the fault lives in a passenger-side cabin panel, the driver-side panel, or the BDC behind the passenger-side trim. If several unrelated features fail together, suspect the module or feed circuit before assuming multiple bad fuses.
Where is the fuse box on a BMW 3 Series?
On the G20, there is more than one fuse location. The 2026 BMW 328i LCI can have two fuse panels under the dashboard, plus additional fuses on the Body Domain Controller in the passenger-side pillar behind trim. For engine and charging-related faults, the driver-side strut tower E-box is the next place to check.
Passenger-side under-dashboard panel
This is the first panel for many cabin accessories. BMW commonly routes power windows, central locking, heated seats, radio, USB, and some driver-assist circuits here on the G20. If a single accessory quits, start here before opening anything in the trunk or engine bay.
Driver-side under-dashboard panel
The driver-side panel carries additional vehicle-specific circuits, and the exact assignments can change with options and market. On the G20, fuse 102 is listed at 7.5A for electronics motor control. That makes this panel worth checking when a function looks tied to the car as a whole, rather than one obvious cabin accessory.
Body Domain Controller panel
The Body Domain Controller sits in the passenger-side pillar behind trim and carries multiple dedicated fuses. On the G20, fuse F2 is listed at 7.5A for the diagnostic socket. If a scan tool will not communicate or several body functions act erratically, the BDC deserves attention early.
Fuse symptom matrix
This matrix is the shortest path from symptom to the right panel on a 2026 BMW 328i LCI. It starts with the most likely panel, then narrows to the circuit family and the amp range used on the G20. If the symptom does not match the first panel, move to the next likely location instead of checking everything in order.
| Symptom | First fuse panel to inspect | Likely fuse family | Likely amp range | When to suspect relay or module instead |
|---|---|---|---|---|
| Dead 12V socket or cigarette lighter | Passenger-side under-dashboard panel | Power outlet / lighter circuit | 15A to 20A | If only one outlet fails but the feed is live, or if the socket blows again after replacement |
| Radio, USB, or infotainment loss | Passenger-side under-dashboard panel | Multimedia / USB circuit | 10A to 15A | If the screen boots but audio stays dead, or multiple infotainment features fail together |
| Windows, seats, or central locking fault | Passenger-side under-dashboard panel, then BDC | Comfort / body electronics | 5A to 20A | If more than one comfort feature fails at once, or the fault repeats after a good fuse is installed |
| No communication at the diagnostic socket | Body Domain Controller | Diagnostic / body controller feed | 7.5A | If the fuse is good but the scan tool still cannot connect, suspect the BDC or power supply path |
| No cooling fan or DME-related power issue | Engine-bay E-box | Main relay / engine management feed | Larger fuses and relay-fed circuits | If the fuse tests good and the engine still will not run correctly, the relay or DME power control may be at fault |

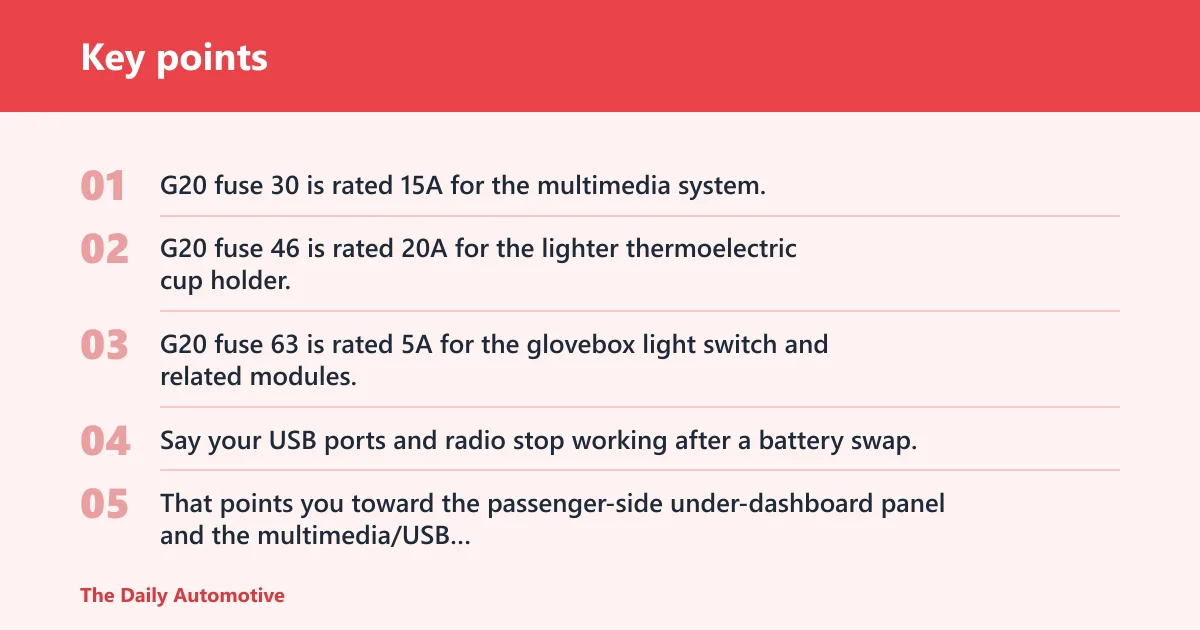

G20 fuse 30 is rated 15A for the multimedia system. G20 fuse 46 is rated 20A for the lighter thermoelectric cup holder. G20 fuse 48 is rated 20A for heated seats. G20 fuse 63 is rated 5A for the glovebox light switch and related modules. G20 fuse 74 is rated 10A for the USB socket.
Say your USB ports and radio stop working after a battery swap, but the windows still move normally. That points you toward the passenger-side under-dashboard panel and the multimedia/USB family before you tear into the trunk or engine bay.
A common first-timer mistake is replacing a fuse for a dead 12V socket when the real fault is a heat-damaged socket body or a relay-fed power feed. If the new fuse survives but the outlet stays dead, stop and test the socket power and ground path.
How do I find the right fuse diagram?
Start by matching the diagram to the exact model year and trim, then confirm the circuit family before you pull any fuse. If the chart still looks wrong, use the owner’s manual fuse card and the symptom itself to narrow the search.
Match the model year and trim
The G20 covers 2019 to 2026, so the year range is broad enough to create bad matches if you search only by “BMW 3 Series.” Trim and market can shift fuse positions and assigned loads. The same cabin symptom may land on different fuse numbers in different markets.
Check the owner’s manual fuse card
The fuse card gives the factory map for that specific car. Use it to confirm the panel location, fuse number, and amp rating before replacing anything. If the card points to the BDC or the driver-side panel, follow that instead of assuming the glovebox area must contain everything.
Confirm the circuit family before pulling fuses
Identify the family first: multimedia, USB, comfort access, lighting, diagnostic, or engine-management power. That single step keeps you from checking a 5A diagnostic fuse when the problem is a 20A comfort circuit. It also helps you decide whether a relay or module is more likely than a fuse.
- Confirm the model year as 2026 and the G20 platform.
- Read the fuse card in the owner’s manual.
- Match the failed symptom to a circuit family.
- Check the first likely panel, not every panel.
- Inspect the fuse only after the feed path makes sense.
Passenger-side fuse panel
The passenger-side under-dashboard panel is the first stop for many G20 cabin faults. On the 2026 BMW 328i LCI, it is the most likely place for radio, USB, heated seat, central locking, and power-window issues. Open the lower trim carefully, then verify the fuse card against the panel before touching anything.
Access behind the lower dash trim
Use the lower dashboard access point on the passenger side and remove only the trim required to reach the panel. Keep the ignition off before pulling any fuse. If the panel is crowded or the labels are hard to read, pause and cross-check the fuse card rather than guessing.
Common circuits assigned here
This panel commonly carries comfort and infotainment loads, which is why dead accessories often start here. On the G20, fuse 30 is rated 15A for the multimedia system, fuse 46 is 20A for the lighter thermoelectric cup holder, fuse 48 is 20A for heated seats, and fuse 74 is 10A for the USB socket. Those values make the panel a strong first stop for cabin accessory faults.
What to inspect first
If one accessory is dead, inspect the fuse linked to that exact circuit family first. If two or more unrelated cabin features fail at once, inspect the feed path, the BDC, and the nearby connectors before assuming multiple fuses failed together. If the fuse looks good but the fault remains, move to the module or relay path quickly.
What fuses are in the engine bay?
The engine-bay E-box sits near the driver-side strut tower and typically houses relays and fuses on the G20. It protects systems such as the DME, cooling fans, and the ABS module. Check this area when the fault affects engine operation, charging behavior, cooling, or other high-load systems rather than a single cabin accessory.
Driver-side strut tower E-box
This box is not the first stop for a dead USB port, but it matters for bigger faults. A no-start condition, cooling fan failure, or ABS-related power issue can point here quickly. If the cabin panels are fine and the problem is broad, the E-box moves up the list.
Main relays and larger fuses
The E-box commonly carries relay-controlled and higher-load protection. That means a good-looking fuse does not end the diagnosis if the relay or control module is not switching power correctly. A fault that returns after fuse replacement is often a clue that the fuse was not the root cause.
DME, cooling fan, and ABS circuits
These circuits are high priority because they can affect drivability and safety. If the engine cranks but will not run correctly, or if cooling fan operation is lost, check the E-box before chasing cabin accessories. If a module fault code points to power supply loss, the relay and feed circuit deserve special attention.
2026 BMW 328i fuse matrix
This matrix narrows the 2026 BMW 328i LCI search to the most likely panel, fuse family, and failure type. Use it when the glovebox chart does not seem to match the symptom. The goal is not to replace every fuse; it is to get to the correct panel fast and decide whether the circuit is fused, relay-fed, or module-controlled.
| Symptom | Panel to check first | Likely fuse family and amp range | Fuse, relay, or module? |
|---|---|---|---|
| Single dead power socket | Passenger-side under-dashboard panel | Lighter / outlet, often 15A to 20A | Start with fuse; move to socket wiring if replacement holds |
| Radio or screen dead | Passenger-side under-dashboard panel | Multimedia, 15A | Fuse first; module next if power is present |
| USB socket dead | Passenger-side under-dashboard panel | USB, 10A | Fuse first; then inspect connector and head-unit feed |
| Heated seats inoperative | Passenger-side under-dashboard panel | Heated seats, 20A | Fuse first; seat module if the fuse is good |
| Diagnostic scanner will not connect | Body Domain Controller | Diagnostic socket, 7.5A | Fuse first; BDC next if the circuit remains dead |
| No crank, no cooling fan, or ABS power fault | Engine-bay E-box | Main relays and larger fuses | Relay or module suspicion rises fast if the fuse tests good |

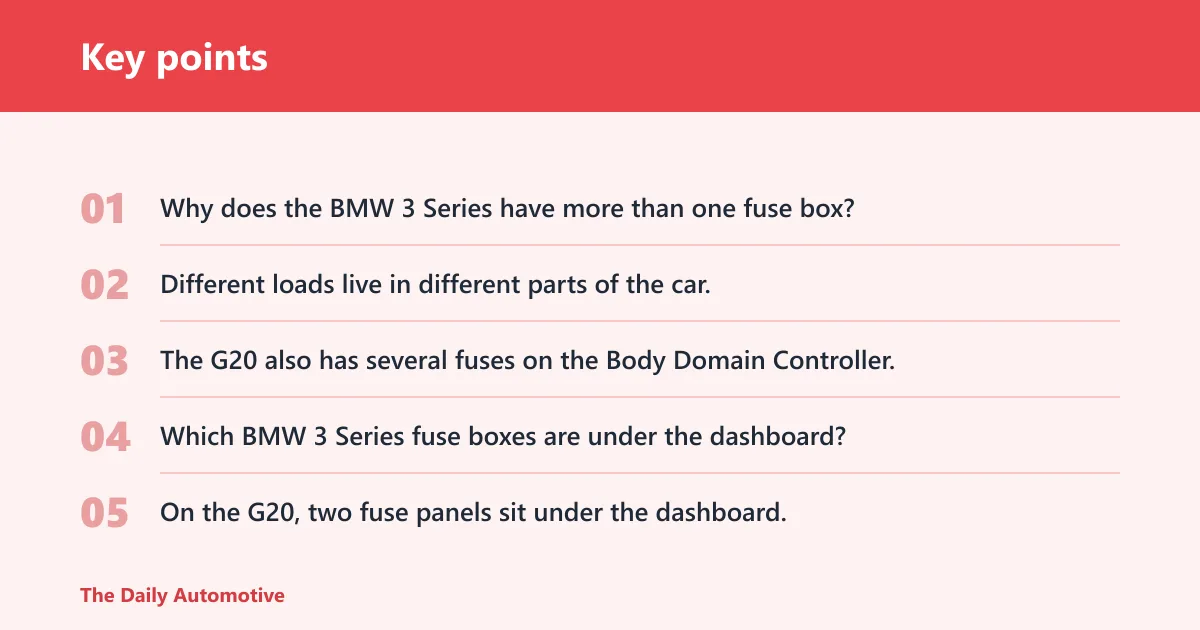

Why does the BMW 3 Series have more than one fuse box? Different loads live in different parts of the car, and BMW separates cabin comfort circuits from body electronics and engine-management power. The G20 also has several fuses on the Body Domain Controller, so the right answer depends on the symptom, not just the model badge.
Which BMW 3 Series fuse boxes are under the dashboard? On the G20, two fuse panels sit under the dashboard. One is on the passenger side and handles many comfort and infotainment circuits; the other is on the driver side and contains additional vehicle-specific assignments. That split is why one dead feature may point to a different side than another.
Where is the Body Domain Controller fuse panel on a BMW 3 Series? On the G20, it is in the passenger-side pillar behind trim. It contains multiple dedicated fuses, including F2 at 7.5A for the diagnostic socket. If a scan tool cannot connect or several body features misbehave, the BDC is a strong early suspect.
Frequently asked questions
How do I find the fuse diagram for my BMW 3 Series?
Use the owner’s manual fuse card for the exact year, trim, and market, then match it to the G20 layout if you have a 2026 LCI car. If the card does not line up with the vehicle, confirm the panel location and circuit family before removing anything. Do not use an older 3 Series chart as a substitute.
Which fuse controls the cigarette lighter in a BMW 3 Series?
On the G20, the lighter-style and outlet circuits are typically in the passenger-side under-dashboard panel. Fuse 46 is listed at 20A for the lighter thermoelectric cup holder, and the front cigar-lighter style reference appears in BMW’s E36 example at fuse 32. That comparison shows why generation matters before you pull a fuse.
Where is the fuse panel in the trunk on a BMW 3 Series?
BMW 328i-style layouts can place a rear power distribution panel near the trunk area for battery-related circuits, fuel pump power, and chassis electronics. That layout is more relevant when the fault affects rear power distribution or pump supply than when one cabin accessory is dead. Always verify the exact year and equipment before opening trim.
What fuse does the radio use on a BMW 3 Series?
On the G20, fuse 30 is rated 15A for the multimedia system, and that is the first place to look for radio or head-unit power loss. If the screen powers up but sound does not, or the fault returns after fuse replacement, the issue may be in the head unit, amplifier, or control module rather than the fuse itself.
What fuses are in the BMW 3 Series engine bay?
The engine-bay E-box at the driver-side strut tower carries main relays and larger fuses for systems such as the DME, cooling fans, and ABS module. It is the right place to look when the fault is tied to drivability, overheating, or braking electronics rather than a single cabin feature. If those circuits test good, move to relay and module diagnosis.
