How Many Knock Sensors Does a Car Have? (1 to 4, Explained)

Most cars have one or two knock sensors, but some V8 and high-performance engines use up to four. The exact count depends on how many cylinder banks the engine has and how the manufacturer chose to monitor them – not on the car’s size or price alone.

Below is a breakdown by engine layout, where these sensors sit, why some V6 and V8 engines get away with only one, and what it costs to replace one in 2026.

What Is a Knock Sensor and Why It Matters

A knock sensor is a small electronic device bolted to the engine block, cylinder head, or intake manifold that listens for abnormal vibrations known as engine knock (or detonation). Knock happens when the air-fuel mixture in a cylinder ignites at the wrong moment instead of cleanly with the spark plug, causing a mini-explosion that hammers the piston and cylinder wall.

The sensor itself does not stop the knock. It reports it. Most knock sensors are piezoelectric: the vibration physically flexes a crystal inside the sensor, which generates a small voltage signal. That signal goes to the car’s Engine Control Unit (ECU), which retards ignition timing until the knocking stops. Left undetected, engine knock can burn through pistons, damage rod bearings, and blow head gaskets over time.

How Many Knock Sensors Does a Car Have, by Engine Type?

The count tracks engine layout more than anything else. Here is what is typical for each configuration:

Engine Type	Typical Number of Knock Sensors	Common Examples
Inline-4 (4-cylinder)	1	Honda Civic, Toyota Corolla
Inline-6	1, sometimes 2	BMW 3 Series (older inline-6), Toyota Supra
V6	1 or 2	Ford Mustang V6, Nissan Altima
V8	1 or 2 (rarely more on tuned engines)	Chevrolet Silverado, Dodge Charger
High-output V8 / V10 / V12	2 to 4	BMW M5, Chevrolet Corvette Z06

A four-cylinder engine, like the one in a Civic or Corolla, generally needs just one sensor because there is only one bank of cylinders in a straight line to monitor. V6 and V8 engines split their cylinders into two banks, so manufacturers usually add a second sensor, one per bank, for more precise timing correction on each side. High-output engines sometimes go further, using individual sensors per cylinder pair so the ECU can pull timing back on only the cylinder that is actually knocking instead of retarding the whole engine.

Where Are Knock Sensors Located in a Car?

Knock sensors are bolted directly to the engine block, cylinder head, or intake manifold, wherever they can best pick up vibration from the cylinders. Exact placement varies by make and model, so the fastest way to find yours is your car’s factory service manual or a parts diagram for your specific engine code.

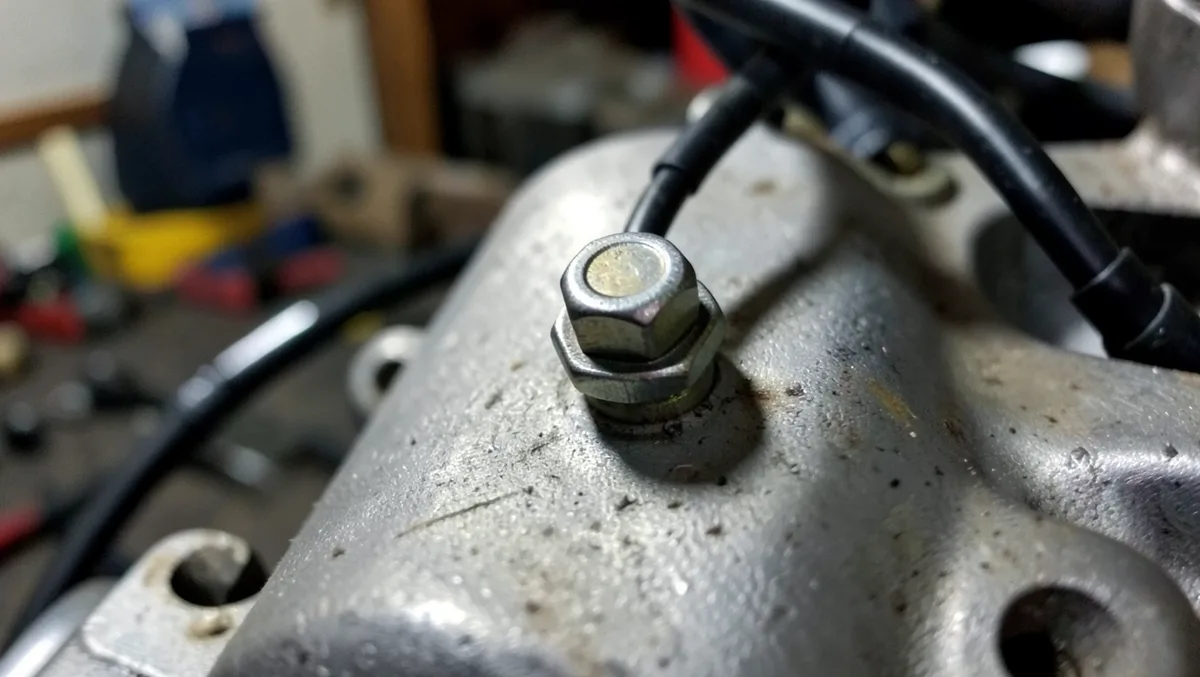

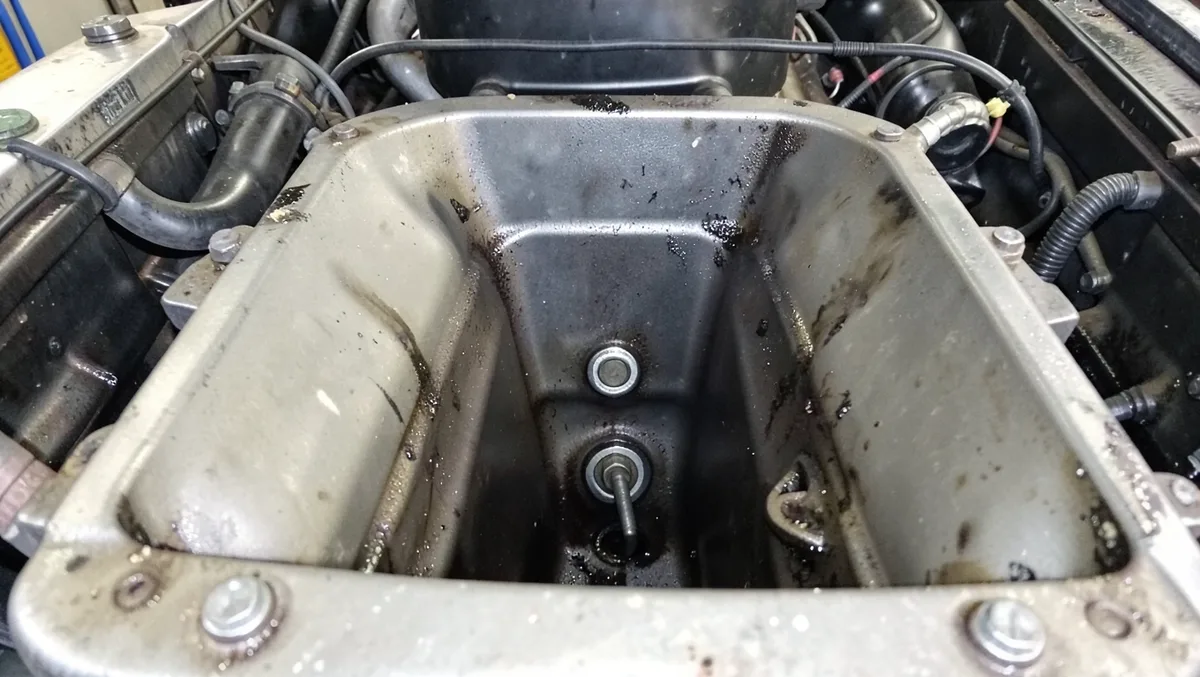

On a 4-cylinder engine, the single sensor is usually threaded into the side of the block, roughly centered under the intake manifold. On a V6 or V8, sensors are typically mounted lower in the engine valley (the V-shaped gap between the two cylinder banks) or directly into each bank near the head. They are small – roughly the size of a large coin – with a short pigtail wire connector, which is why they are easy to overlook during a visual inspection.

How Knock Sensors Work

A piezoelectric knock sensor contains a crystal that generates a tiny voltage whenever it is physically flexed. Engine knock produces a very specific vibration frequency, usually in the 5 to 15 kHz range, that is distinct from normal engine noise. The sensor’s job is simply to convert that vibration into an electrical signal and send it to the ECU.

The ECU compares the incoming signal against expected values for the current RPM and load. If it matches the knock signature, the ECU retards ignition timing, delaying the spark by a few degrees, until the knocking stops. Once the knock signal clears, timing advances back toward its normal setting. This whole loop runs continuously and adjusts within milliseconds, so a healthy system corrects for knock long before you would ever notice it while driving.

Why Some V6 and V8 Engines Have Only One Knock Sensor (Not Two)

This is where most explanations stop short. If a V6 or V8 has two banks of cylinders, why do some of them only carry one knock sensor instead of two? It comes down to where the manufacturer chooses to mount it.

A sensor mounted per-bank, on the side of each cylinder head, can only listen closely to the bank it sits on. That gives the ECU precise, bank-specific data, but it needs two sensors and two wiring runs to do it. A sensor mounted instead in the engine valley – the low point between the two banks, underneath the intake manifold – sits roughly equidistant from every cylinder in the block. One well-placed valley sensor can pick up knock vibration from both banks at once, which is why some V6 and V8 designs get by with a single sensor.

The tradeoff is precision versus simplicity. Two bank-mounted sensors let the ECU pinpoint which side of the engine is knocking and retard timing on just that bank, which is better for performance tuning. A single valley-mounted sensor is cheaper to build and wire, but the ECU has to retard timing across the whole engine any time it hears knock from either side, since it cannot tell which bank triggered it. Neither setup is wrong; it is a design choice the manufacturer makes based on cost, packaging, and how much precision the engine’s compression ratio and boost level actually demand. Note also that a valley-mounted sensor sits under the intake manifold, which is exactly why replacing it usually takes longer and costs more in labor than a bolt-on sensor you can reach from outside the engine.

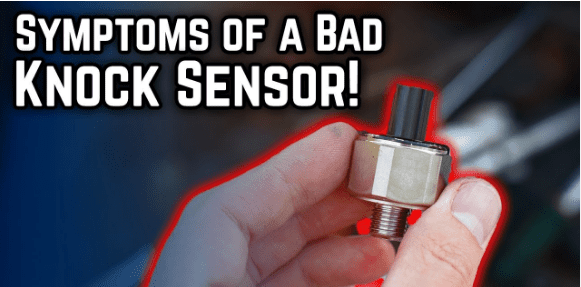

Signs of a Faulty Knock Sensor

Knock sensors are durable, but the wiring and connectors around them do fail over time from heat and vibration. Watch for these signs:

• Check Engine Light: The most common sign. The ECU flags a knock sensor circuit fault (commonly code P0325 or P0330) and turns on the light.
• Reduced power or hesitation: If the ECU cannot verify knock is under control, some vehicles enter a conservative “limp” timing mode that noticeably dulls acceleration.
• Audible pinging or knocking: If the sensor stops reporting knock accurately, real detonation can go uncorrected and become audible, especially under load or acceleration.
• Lower fuel economy: Without accurate knock feedback, the ECU may run a more conservative (retarded) timing map by default, which burns more fuel for the same output.
• Rough idle: Less common, but a shorted or disconnected sensor circuit can cause erratic ECU behavior at idle on some platforms.

A faulty knock sensor will not destroy an engine overnight, but ignoring it long enough removes the safety net that protects your engine from real detonation. If any of these symptoms show up alongside a check engine light, have the code read as soon as you reasonably can.

How to Test and Replace a Knock Sensor

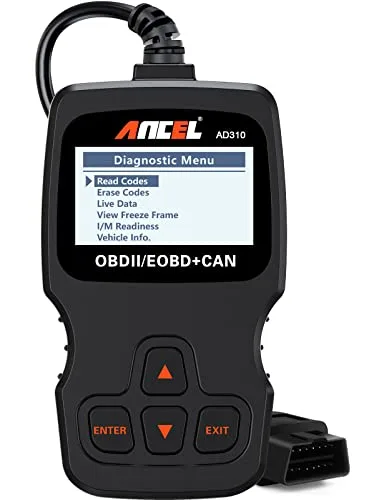

An OBD2 scan tool is the fastest way to confirm the problem: pull the stored code, and if it points to a knock sensor circuit, check live data if the tool supports it. A multimeter can also test the sensor’s resistance against the spec listed in your car’s service manual, though on a piezoelectric sensor a resistance test only rules out an open or shorted circuit, not whether the crystal itself still produces a clean signal.

Replacing a knock sensor is a manageable DIY job on most 4-cylinder engines and considerably harder on a V6 or V8 where the sensor sits under the intake manifold. General steps:

1. Locate the sensor: Confirm its exact position using your service manual or a parts diagram for your engine code.
2. Disconnect the battery: Disconnect the negative terminal first for safety before working near the wiring harness.
3. Remove obstructing parts: On a V6 or V8, this often means removing the intake manifold or other components to reach the valley-mounted sensor.
4. Unplug and unbolt the old sensor: Disconnect the wiring connector, then unscrew the sensor from the block or head.
5. Install and torque the new sensor: Knock sensors are torque-sensitive; over-tightening can crack the piezoelectric crystal and cause false readings. Torque to the spec in your manual.
6. Reconnect and clear codes: Reconnect the battery, clear any stored fault codes with a scan tool, and take a test drive to confirm the light stays off.

If you would rather have a shop handle it, a knock sensor replacement is a routine job for any general repair shop or dealership.

Maintaining Your Knock Sensors for Longevity

Knock sensors themselves need essentially no maintenance, but a few habits keep them and their wiring healthy longer. Use the octane rating your manufacturer specifies; running fuel below spec increases real knock events and puts more stress on the whole knock-detection system, not just the sensor. Keep the engine bay reasonably clean, since heavy oil or coolant leaks around the sensor’s connector can corrode the pins over time.

Routine tune-ups are a good time to have a mechanic visually check the sensor’s wiring and connector for chafing or corrosion. Catching a loose or corroded connector early is far cheaper than diagnosing an intermittent knock code down the road.

Common Causes of Engine Knock

Since the sensor exists to catch engine knock, it helps to know what actually causes it:

• Low-octane fuel: Using fuel with a lower octane rating than your car requires makes the mixture more prone to igniting early.
• Carbon buildup: Carbon deposits inside the cylinder create hot spots that can trigger pre-ignition.
• Incorrect ignition timing: Spark firing too early relative to piston position is a direct cause of knock.
• Engine overheating: Higher combustion chamber temperatures make the air-fuel mixture more likely to auto-ignite before the spark fires.
• Worn engine parts: Worn spark plugs or a failing fuel injector can disrupt combustion timing enough to cause knock.

Choosing the Right Replacement Knock Sensor

When a sensor needs replacing, an OEM part matched to your exact make, model, and engine code is the safest bet, since knock sensors are tuned for a specific vibration frequency range that varies by engine. Aftermarket sensors from established brands (Bosch, Denso, Delphi, and similar OEM suppliers) are generally reliable, but avoid unbranded budget parts, since an off-spec sensor can trigger false knock codes or fail to catch real knock at all.

The Cost of Knock Sensor Replacement (2026)

A knock sensor replacement typically runs $250 to $550 total, though it can go as low as roughly $200 on an easy-access 4-cylinder or as high as $800 on a V6 or V8 where the intake manifold has to come off. Parts alone run $30 to $90 for a quality aftermarket sensor, or $80 to $280 for an OEM dealer part. Labor is usually the bigger cost driver: independent shops charge roughly $95 to $160 per hour, dealerships $160 to $240 (up to around $290 for some European brands), and the job itself can take anywhere from 20 minutes to three or four hours depending on how buried the sensor is.

How Knock Sensors Affect Fuel Efficiency

Knock sensors protect your engine, but they also play a role in fuel economy. When the ECU detects knock, it retards ignition timing to stop it, and retarded timing is inherently less fuel-efficient than the engine’s optimal advance setting. A failing knock sensor that stops reporting accurately can force the ECU into a permanently conservative, retarded timing map (or trigger a fail-safe mode on some vehicles), which burns noticeably more fuel for the same driving than a healthy system would.

Knock Sensors in Modern vs. Older Cars

Knock sensors became standard equipment as electronic engine management matured through the 1980s and 1990s. Older carbureted engines, especially those from before the mid-1980s, typically ran fixed or mechanically-advanced ignition timing with no real-time knock feedback at all. Instead, manufacturers built in a timing margin and relied on higher-octane fuel recommendations to avoid knock, which is a much less precise approach than a modern closed-loop knock sensor system.

Modern knock sensors, paired with direct injection and variable valve timing, let engines run closer to their maximum safe compression and timing advance under normal conditions, then only back off when knock is actually detected. That is a large part of how today’s engines get more power and better fuel economy out of a given displacement than engines built decades ago.

The Role of Knock Sensors in Performance Cars

High-compression and turbocharged or supercharged performance engines run closer to the knock threshold than a typical commuter engine, since higher compression and boost both increase the odds of pre-ignition. That is why performance platforms often use two or more knock sensors: precise, bank-specific (or even cylinder-specific) knock data lets the ECU pull timing only where it is needed, instead of retarding the whole engine and giving up power everywhere just to protect one cylinder.

Common Myths About Knock Sensors

• Myth: Premium fuel means you do not need a working knock sensor. Truth: Even premium fuel can knock under the right conditions (heat, carbon buildup, worn parts), so the sensor is still doing real work.
• Myth: A bad knock sensor will wreck your engine immediately. Truth: It will not cause instant damage, but losing knock protection raises the risk of real detonation damage the longer it goes unfixed.
• Myth: Every car has the same number of knock sensors. Truth: The count depends on engine layout and where the manufacturer chose to mount the sensor, as covered above.

What’s Next for Knock Sensor Technology

Knock detection keeps getting more precise as ECUs get faster. Many current turbocharged engines already combine multiple, cylinder-specific knock sensors with adaptive timing maps that learn a given engine’s knock threshold over time rather than applying one fixed retard schedule to every car off the line. Some hybrid and plug-in hybrid platforms also use knock sensors on their gas engine even though the electric motor handles a share of the power delivery, since the combustion side still needs the same real-time protection. For now, the best way to stay ahead of any of it is simply keeping your existing sensor’s wiring intact and using the fuel your manufacturer specifies.

Conclusion

Most cars carry one or two knock sensors, with V8 and high-performance engines sometimes running up to four, depending on how many cylinder banks the engine has and whether the manufacturer chose per-bank or valley-mounted placement. Whether your car has one sensor or four, a check engine light paired with a knock-related code (commonly P0325 or P0330) is worth diagnosing promptly, since it removes a real layer of protection for your engine the longer it is ignored.

Frequently Asked Questions

What does a knock sensor do in a car?

A knock sensor detects the abnormal vibration caused by engine knock (fuel igniting at the wrong moment) and sends a signal to the ECU, which retards ignition timing until the knocking stops.

How many knock sensors are in a 4-cylinder car?

Most 4-cylinder cars have exactly one knock sensor, mounted on the engine block or cylinder head where it can monitor the single row of cylinders.

Can a car run without a knock sensor?

Yes, a car will typically still run with a failed or disconnected knock sensor, but the ECU loses its real-time knock feedback. Most vehicles fall back to a conservative, retarded timing map, which can mean less power, lower fuel economy, and reduced protection against real engine knock.

How do I know if my knock sensor is bad?

Look for a check engine light with a knock-sensor-circuit code (often P0325 or P0330), reduced power or hesitation, audible pinging under load, or a drop in fuel economy. A scan tool reading the stored code is the fastest way to confirm it.

Is replacing a knock sensor expensive?

Total cost typically runs $250 to $550, including parts and labor, though it can reach $800 on a V6 or V8 where the intake manifold has to come off to reach a valley-mounted sensor.

Do all cars have knock sensors?

Most cars built since the late 1980s have at least one knock sensor. Older carbureted vehicles often relied on fixed ignition timing and a built-in safety margin instead of real-time knock feedback.

Can bad fuel cause knock sensor issues?

Bad or low-octane fuel does not damage the sensor itself, but it does cause more real engine knock, which means the sensor and the ECU’s timing correction have to work harder and more often.
