Standard Car Cup Holder Size: Inches, mm and What Fits
Searching for a standard car cup holder size usually ends in a table of round numbers, but the makers who actually publish figures give a different picture. Kia’s owner’s manual pages for the cup holder list no diameter or depth at all, while Stanley states a base diameter of about 3.1 to 3.15 inches (roughly 79 to 80 mm) for its Quencher tumblers. This guide puts those published figures side by side, converts them to millimetres, and shows which cautions car manuals attach to cup holders.
Quick Answer
No maker publishes a universal car cup holder size. The figures that exist are drinkware base diameters: Stanley lists 3.15 inches (80.0 mm) for its 20 oz and 30 oz Quencher H2.0 tumblers and 3.1 inches (78.7 mm) for the 40 oz. Kia’s manuals say only that cups or small beverage cans fit.
What Exactly Is a Standard Car Cup Holder?
The sources read for this guide do not show one diameter and depth shared across makes and model years. Kia’s owner’s manual pages for its cup holders say that cups or small beverage cans may be placed in them, and that is the whole description of size. If a car cup holder does not take your bottle, a cup holder expander is one fix.
 |
Best Auto-Adjusting Expander Pick Automatic Car Cup Holder Expander (3 adjustable arms)
As an Amazon Associate we earn from qualifying purchases. Spec-based pick from the listing, not a hands-on test. |
The sections below use only figures that a maker states on its own page, and each one says which page it came from.
Key Measurements in a Standard Car Cup Holder Size Guide
Size searches usually ask for a diameter and a depth. The pages read for this guide publish neither for a car, so the figures below come from the drink container side.
Diameter of the Cup Holder
Drinkware makers publish the number that matters most. The Stanley 20 oz Quencher H2.0 page lists the tumbler as car cup holder compatible with a base diameter of 3.15 inches, and the Stanley 30 oz page lists the same 3.15 inches. The Stanley 40 oz Quencher H2.0 page lists 3.1 inches. That means the 40 oz tumbler has a slightly narrower base than the 20 oz and 30 oz versions, so capacity alone does not predict base width.
Depth of the Cup Holder
No depth figure appears on the Kia manual pages or on the Stanley pages, so there is no published average depth to quote. Queries such as “how deep is a car cup holder” therefore have no maker-backed answer here. Stanley states only that its 40 oz tumbler with a handle fits comfortably in a vehicle cup holder, and that sizes up to 40 oz will comfortably fit most car and truck cup holders.
Inches to Millimetres
Many searches ask for cup holder size in mm. Using 25.4 mm per inch, the published inch figures convert as follows. The millimetre column is arithmetic, not a maker figure.
| Published figure | Inches | Millimetres (arithmetic) |
|---|---|---|
| Stanley 20 oz Quencher H2.0 base diameter | 3.15 | 80.0 |
| Stanley 30 oz Quencher H2.0 base diameter | 3.15 | 80.0 |
| Stanley 40 oz Quencher H2.0 base diameter | 3.1 | 78.7 |
| Expander listing: narrowest drinkware stated | 2.56 | 65.0 |
| Expander listing: widest drinkware stated | 4.8 | 121.9 |
Common Car Cup Holder Sizes Across Vehicle Types
Many guides sort cup holders into sedans, SUVs and trucks, each with its own diameter. No maker page read for this guide supports such a split, so this section reports what car makers say instead. Kia’s owner’s manual cup holder pages, read for four editions, are the vehicle-side source used here.
| Kia manual edition | What it says about use | Size given |
|---|---|---|
| 2021 (code MQ4) | Cups or small beverage cans may be placed in the front and rear cup holders. | None |
| 2022 (code ON) | Cups or small beverage cans may be placed in the cup holders. Pages cover front, 2nd row, 2nd row center and 3rd row holders. | None |
| 2024 (code CV1) | Cups or small beverage cans may be placed in the cup holders. | None |
| 2026 (code CL4) | You may place cups or small beverage cans in the cup holders. Front and rear (if equipped) are shown. | None |
Reading across the four editions, the wording on size stays “cups or small beverage cans” and no figure is added. The same pages are where Kia puts its spill and heat cautions, covered in the safety section below.
Table: Comparing Cup Holder Sizes and Uses
| Drinkware | Published base or width figure | Maker statement on car cup holders | Source |
|---|---|---|---|
| Stanley Quencher H2.0 FlowState, 20 oz | Base diameter 3.15 in | Car cup holder compatible; the page says it fits in a cup holder | Stanley 20 oz page |
| Stanley Quencher H2.0 FlowState, 30 oz | Base diameter 3.15 in | Narrow base that will fit most cup holders | Stanley 30 oz page |
| Stanley Quencher H2.0 FlowState, 40 oz | Base diameter 3.1 in | Sizes up to 40 oz will comfortably fit most car and truck cup holders | Stanley 40 oz page |
| Stanley Quencher ProTour Flip Straw, 40 oz | No base diameter listed | Fits most car cup holders | Stanley ProTour page |
| Expander listing (box above) | Holds drinkware 2.56 to 4.8 in wide, 12 to 50 oz | For bottles and mugs too big for the built-in holder | Amazon listing |
This table is not a substitute for measuring your own car. For more size questions, see our guides on how big a cup holder is in a car and the standard car cup holder diameter; this page keeps to the maker-published figures above.
Why Large Tumblers Sometimes Don’t Fit
Stanley’s own wording is hedged: its 40 oz page says sizes up to 40 oz will comfortably fit “most” car and truck cup holders, and its ProTour page says the tumbler “fits comfortably in your car’s cupholder”. Both pages describe typical cars, so a specific car can still be an exception.
The Stanley 40 oz page adds that the larger tumbler with a handle fits comfortably in a vehicle cup holder. The base diameter is the only fit figure the pages give.
Alternatives and Accessories for Cup Holders

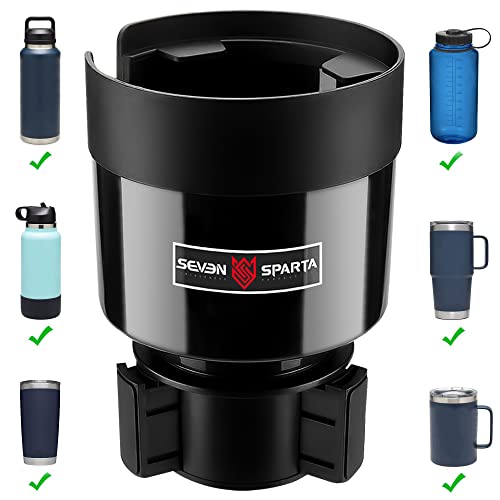

Cup Holder Expanders

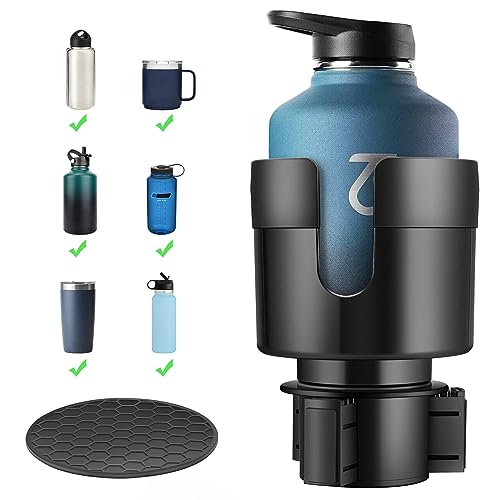

An expander sits in the built-in holder and has arms that widen to hold larger drinkware. The listing for the pick above says its three arms expand automatically to the cup size, that it installs by gripping the middle of the base and twisting, and that it is made of composite plastic. It describes the drinkware it holds as 12 to 50 ounces, 2.56 to 4.8 inches. For other expander options, see our TYKOR expander review, cup holders for large water bottles and large cup holders for cars.
Cup Holder Adapters and Inserts
Other products change the holder rather than widen it. See our guides to adjustable cup holders, rubber cup holder inserts and the best car cup holders for drinks.
Safety Cautions From Owner’s Manuals
Car makers attach safety wording to cup holders. These cautions come from the Kia manual pages read for this guide, so check your own manual for your car.
- Hot liquids: all four editions warn against placing uncovered cups of hot liquid in the cup holder while the vehicle is in motion. The manuals say a spill could burn the driver, and that a burn to the driver could lead to loss of control of the vehicle.

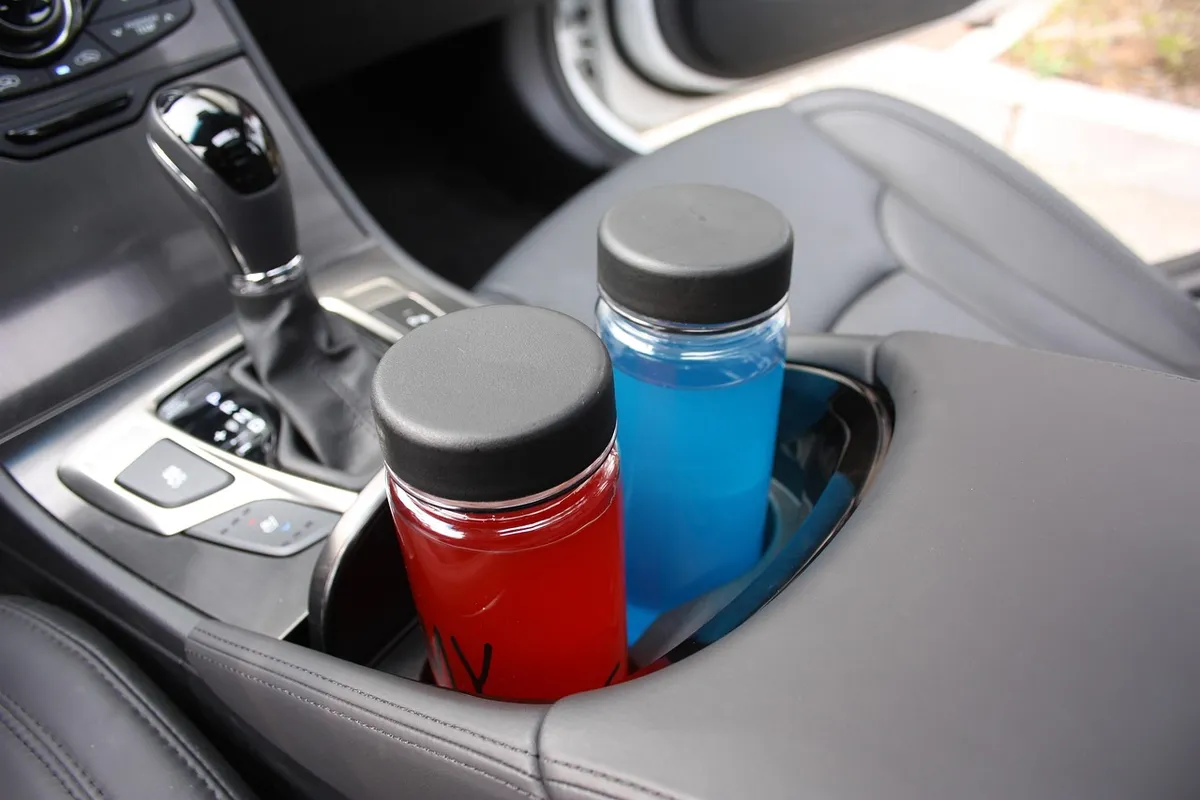

- Keep drinks sealed: the manuals say to keep drinks sealed while driving, because spilled liquid may get into the vehicle’s electrical or electronic system and damage parts.
- Sudden stops: the 2021 and 2022 editions say that, to reduce the risk of personal injury in a sudden stop or collision, you should not place uncovered or unsecured bottles, glasses or cans in the cup holder while the vehicle is in motion.
- Heavy braking: the 2022 edition says liquid from uncovered containers in the front or center cup holders may flow into the narrow openings around the holders and console and soak into the electrical system, and to always firmly cover any container holding liquid.
- Sunlight and heat: the 2021, 2022 and 2026 editions say to keep cans or bottles out of direct sunlight and not to put them in a hot vehicle, because they may explode.
- Cleaning: when cleaning spilled liquids, the manuals say not to use heat to dry the cup holders, as that may damage them (the 2021 and 2022 editions say not to dry them at high temperature).
- Spills in the holder: the 2024 edition adds that the cup holder may not work if drinks are spilled in it.
The 2026 Kia cup holder page is an example of the wording. Related reading: cup holder mats for cars.
What This Guide Does Not Cover
- Cup holder diameters and depths for specific makes, models and years; no maker figure was found for these, so check your own manual or measure the holder.
- Cup holders in vehicles from makers other than Kia; their manuals may word cautions differently.
- Hands-on testing of any expander or tumbler.
Frequently Asked Questions (FAQ)
What is the standard car cup holder size?
There is no published standard. The Kia owner’s manual pages for four editions (2021, 2022, 2024 and 2026) say only that cups or small beverage cans may be placed in the cup holders, and none gives a diameter or depth. The numbers that do exist come from drinkware makers: Stanley lists a car cup holder compatible base diameter of 3.15 inches for its 20 oz and 30 oz Quencher H2.0 FlowState tumblers and 3.1 inches for the 40 oz.
How deep is a car cup holder?
None of the pages read for this guide publishes a cup holder depth, so there is no average depth to quote. The Kia manual pages describe how to use the holders, not how deep they are, and Stanley states a base diameter rather than a depth. For an exact figure, measure the holder in your own car.
What is a car cup holder size in mm?
Converting the inch figures makers publish at 25.4 mm per inch gives 80.0 mm for a 3.15 inch base and 78.7 mm for a 3.1 inch base. The expander listing in the box above quotes 2.56 to 4.8 inches for the drinkware it holds, which is 65.0 to 121.9 mm. These are arithmetic conversions, not separate maker figures.
Will a 40 oz tumbler fit my car cup holder?
Stanley says on its 40 oz Quencher page that sizes up to 40 oz will comfortably fit most car and truck cup holders, and lists a base diameter of 3.1 inches. “Most” is the maker’s word, so a specific car can still be an exception. If it is, an expander is one fix.
Is it safe to drive with a hot drink in the cup holder?
Kia’s manuals warn against placing uncovered cups of hot liquid in the cup holder while the vehicle is in motion, because a spill could burn the driver, and a burned driver could lose control of the vehicle. Keep drinks sealed, per the same manuals.
Where can I find the dimensions for my car’s cup holders?
Start with the cup holder page of your owner’s manual. In the Kia manuals read for this guide that page covers use and cautions but gives no dimensions, so a measurement of your own holder may be the only exact figure available.
Bottom line: there is no single published standard car cup holder size. Compare the base diameter a drinkware maker states with your own holder, and treat wording such as “most car cup holders” as a typical case, not a guarantee.
