3 Best Spark Plug Testers for Cars (2026): We Compared
The best spark plug tester depends on ignition layout and plug fitment, but most DIY buyers should choose one of three types: inline ignition testers, adjustable-gap testers, or bench testers for deeper diagnosis. Inline testers need accessible plug-wire connections, so they are not a fit for many coil-on-plug systems without separate spark plug wires. Match the tool to the fault. A poor fit can waste time, hide weak ignition faults, or send you toward the wrong repair. This guide compares three top picks by failure case, fitment, and how much diagnostic detail each one gives.
Quick comparison
| Product | Badge | Best for | Price | ||
|---|---|---|---|---|---|
 |
Autool SPT360 Car Spark Plug Tester 110V Auto Spark PlugAUTOOL | Our pick | 110V · 5 testing holes · 200-9000RPM | $59.99
Price as of 18 Oct 2026
|
View |
 |
SINGARO Inline Spark Plug Tester, Plug-in Engine IgnitionSINGARO | Budget pick | Universal · Plug-in design · Inline tool | $6.99
Price as of 18 Oct 2026
|
View |
 |
YEYETUO 2PCS Spark Plug Tester, Ignition Coil Tester forMagic Mask | Also great | 2-pack · Inline design · Universal fit | $6.98
Price as of 18 Oct 2026
|
View |
The right tester depends on whether you need a fast spark check, a closer look at weak spark, or a tool that fits a specific boot and plug layout. The three picks below split cleanly by those jobs, so you can match the tool to the fault instead of buying a generic tester and hoping it fits.
How we chose
We reviewed the listed products against five practical filters: fitment limits, diagnostic depth, visibility of the spark signal, safety shielding, and whether the design suits cramped engine bays. We leaned most heavily on ignition layout first, then plug fit, because a tester that cannot connect is not useful no matter how cheap it is.
The comparison also separates quick no-spark checks from weak-spark diagnosis. An inline tester is fast. A dual-hole tester gives more comparison value, but it asks more of the plug size and engine setup.
Spark tester selection matrix
| Engine type | Plug fitment range | Diagnostic depth | Tight-space suitability | Best-use case |
|---|---|---|---|---|
| 12V gasoline cars, motorcycles, lawn mowers, marine engines | General-purpose inline fit; no strict plug-length spec published | Basic spark presence only | Good for simple inline access, especially where you can reach the plug wire | Fast visual confirmation of spark |
| 12V gasoline engines with straight or 90-degree boots | Boot compatibility matters more than plug dimensions | Basic spark presence only | Very good in cramped bays because the layout supports both boot angles | Checking ignition on awkward coil and wire layouts |
| 12V gasoline engines needing side-by-side comparison | Insulator diameter under 12.2 mm; plug length 33 mm to 43 mm | Higher than a simple inline tester; adjustable 0 to 6000 RPM simulation | Fair, but fitment rules matter more than cramped access | Weak-spark comparison and repeatable bench-style diagnosis |
Choose this if you need a quick yes-or-no spark check: an inline tester is the fastest path, but only if you can access the plug wire. Choose this if the engine bay is tight and the boots vary: the Lisle-style layout is the safer fit bet. Choose this if you want to compare plugs or suspect weak spark instead of a total no-spark condition: the dual-hole simulator gives more useful detail.

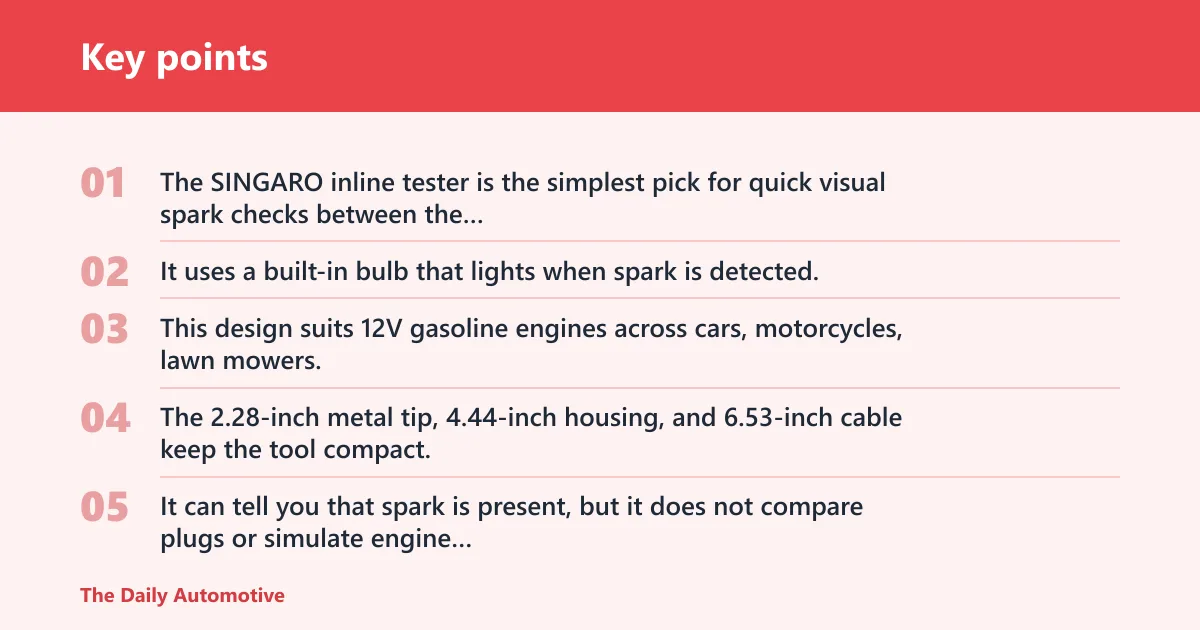

SINGARO inline spark plug tester: best for quick visual checks
The SINGARO inline tester is the simplest pick for quick visual spark checks between the plug and wire. It uses a built-in bulb that lights when spark is detected, so it is aimed at fast confirmation rather than deeper diagnosis.
This design suits 12V gasoline engines across cars, motorcycles, lawn mowers, and marine engines. The 2.28-inch metal tip, 4.44-inch housing, and 6.53-inch cable keep the tool compact, while the high-temperature wire, rubber insulation, and impact-resistant housing add the protection a small ignition tool should have.
The main drawback is diagnostic depth. It can tell you that spark is present, but it does not compare plugs or simulate engine speed the way a dual-hole tester can. If the fault is intermittent or weak, this is a first-pass tool, not the final word.
Choose this if you want a simple all-around tester for fast spark checks on mixed equipment and you do not need plug-size limits or simulation features.
Why the inline bulb indicator matters
An inline spark tester works by sitting between the spark plug and the wire, then giving you a visible spark signal while the engine cranks. That makes it useful for quick diagnosis because you do not have to guess from sound alone. A clear spark indication is enough to separate a dead ignition circuit from a live one.
That said, visible spark does not prove ideal ignition strength. A weak spark may still light the indicator, especially if the engine only fails under load or heat. So this style is best for fast screening, not for confirming coil health under every condition.
Where the high-temperature wire and rubber insulation help
Heat resistance matters because spark testing often happens near hot exhaust parts, coil packs, and plug boots. SINGARO’s high-temperature wire and rubber insulation help reduce damage risk during brief cranking checks. The impact-resistant housing also matters when the tool gets moved around a crowded bay.
That kind of protection does not turn the tester into a heavy-duty lab tool. It simply makes the basic inline layout more practical for garage use and small-engine checks.
Lisle 20610 inline spark tester: best for boot fitment
The Lisle 20610 is the best fit-first pick when boot shape matters. Its double-ended design supports both straight boot compatibility and 90-degree boot compatibility, which helps when one vehicle uses a straight lead and another hides the plug in a tighter corner. It sits inline between the plug and wire and gives a visual flash indication.
This tool is the strongest choice for cramped engine bays where the connector angle can make or break the job. Based on the listed specs, the package weight is 4.3 ounces and the package dimensions are 10.5 x 5.75 x 1 inches, so it is still compact enough for glovebox-level portability and quick garage use.
The drawback is that it is still a simple inline tester. It helps you see spark, but it does not add the comparison depth of a dual-hole simulator. If your issue is weak spark under load, you may still need more than a basic flash check.
Choose this if your ignition boots vary between straight and 90-degree styles and you need a tester that fits without forcing awkward routing.
Why the double-ended layout helps in cramped bays
A double-ended tester gives you more chance of matching the existing ignition hardware without adapters or awkward reaches. That matters when the coil, lead, and plug are packed close to a valve cover or intake runner. Fit matters as much as visibility in those spaces.
The upside is simple: less wrestling, fewer contact problems, and a cleaner spark check. The tradeoff is that this is still a yes-or-no style tool, not a deep analysis unit.
Straight and 90-degree boot compatibility
Boot angle compatibility is one of the most overlooked fit issues in spark testing. A tester that works with a straight boot may still feel wrong with a 90-degree lead in a tight bay, especially if the connector wants to twist. Lisle’s dual boot support helps avoid that mismatch.
That makes it a good pick for mixed fleets, older cars, and small engines with different wire orientations. It is less about bells and whistles than about not failing at the first connection step.

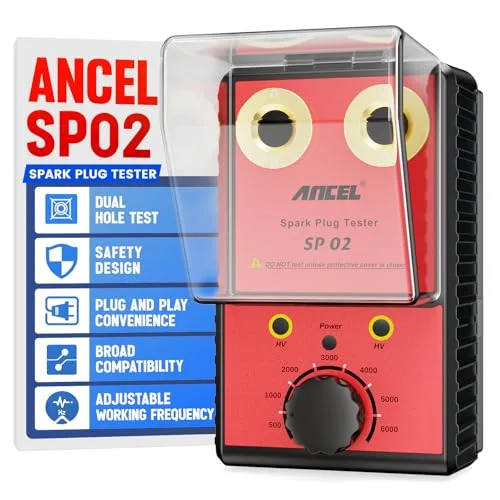

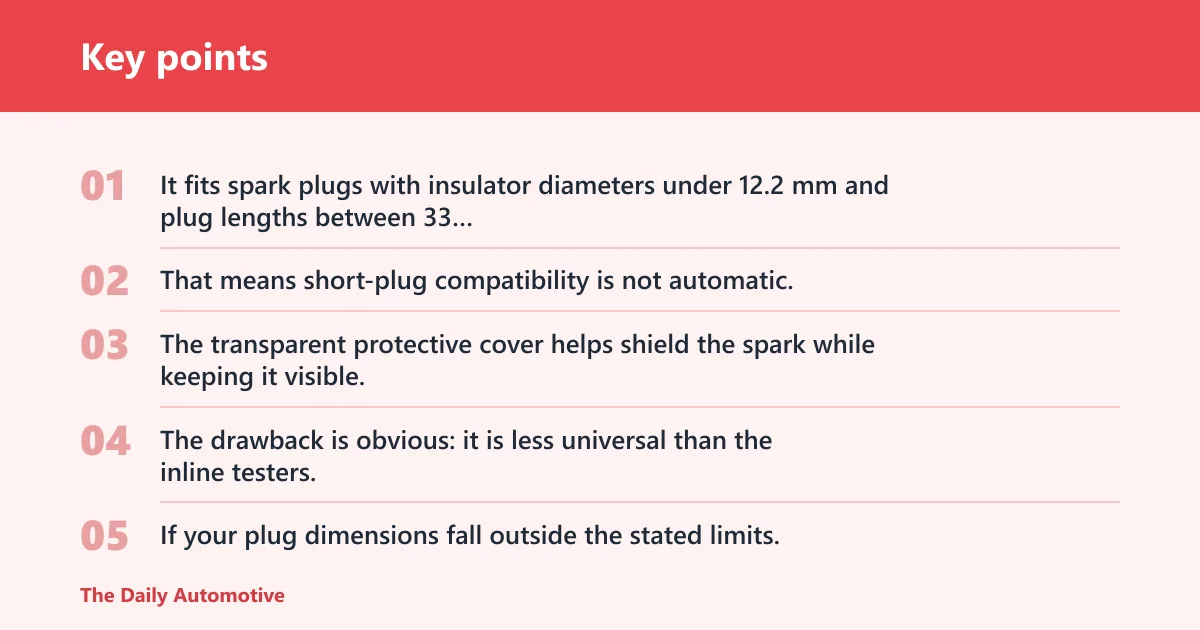

ANCEL SP02 spark plug tester: best for comparison testing
The ANCEL SP02 is the strongest choice when you want comparison testing instead of a simple spark confirmation. It uses dual-hole testing, and the adjustable simulation runs from 0 to 6000 RPM, which gives you more control over how the ignition is being exercised. ANCEL describes it as working with about 99% of 12V gasoline engines.
Its fitment limits are important. It fits spark plugs with insulator diameters under 12.2 mm and plug lengths between 33 mm and 43 mm. That means short-plug compatibility is not automatic, and oversized plugs should be ruled out before you buy. The transparent protective cover helps shield the spark while keeping it visible.
The drawback is obvious: it is less universal than the inline testers. If your plug dimensions fall outside the stated limits, or if you want a tool for casual wire-by-wire checks on mixed vehicles, the ANCEL is the wrong first pick.
Choose this if you want a stronger weak-spark check and your plugs fit the stated diameter and length limits.
What dual-hole testing adds
Dual-hole spark plug testing lets you compare plugs side by side instead of only confirming that one spark appears. That comparison is useful when one cylinder seems weaker, or when you want to see whether two plugs behave differently under the same simulated condition. It gives you more diagnostic depth than a basic inline flasher.
The adjustable working frequency also helps. A tester that can change simulated engine speed gives you a better chance of spotting weak or inconsistent spark behavior that may not show up during a single quick crank.
How the 0 to 6000 RPM simulation works
The 0 to 6000 RPM range matters because ignition behavior can change as test frequency changes. A system that fires at idle may still misbehave when the simulated frequency rises. That is why a simulator is more useful for weak-spark diagnosis than a plain spark-view tool.
For buyers, the rule is simple: if you only want proof of spark, a simulator is more tool than you need. If you need a better look at ignition quality, the extra adjustment range is worth it.
Fitment limits for insulator diameter and plug length
Do not skip the size check. ANCEL’s stated limits are under 12.2 mm for insulator diameter and 33 mm to 43 mm for plug length. If your plug is shorter than that, the fit can be poor. If it is longer, the tester may not seat correctly or may not secure the plug as intended.
That matters most on small-engine plugs and some compact ignition setups where dimensions vary more than expected. A tester with tighter fit rules can diagnose better, but only if your hardware matches it.
What is the best spark plug tester for cars?
For most cars, the best spark plug tester is the one that matches the ignition layout and the fault you are chasing. Use an inline tester for a quick spark check, a boot-flexible tester if access is awkward, and a dual-hole tester if you need more than a yes-or-no answer. The best overall value for fast car diagnosis is usually the simplest tool that fits the ignition layout.
On 12V gasoline cars with accessible plug wires, the first decision is whether the problem is likely no-spark or weak spark. If the engine will not start at all, a quick inline check makes sense. If it starts poorly, misfires under load, or acts inconsistent, a comparison-style tester is more useful.

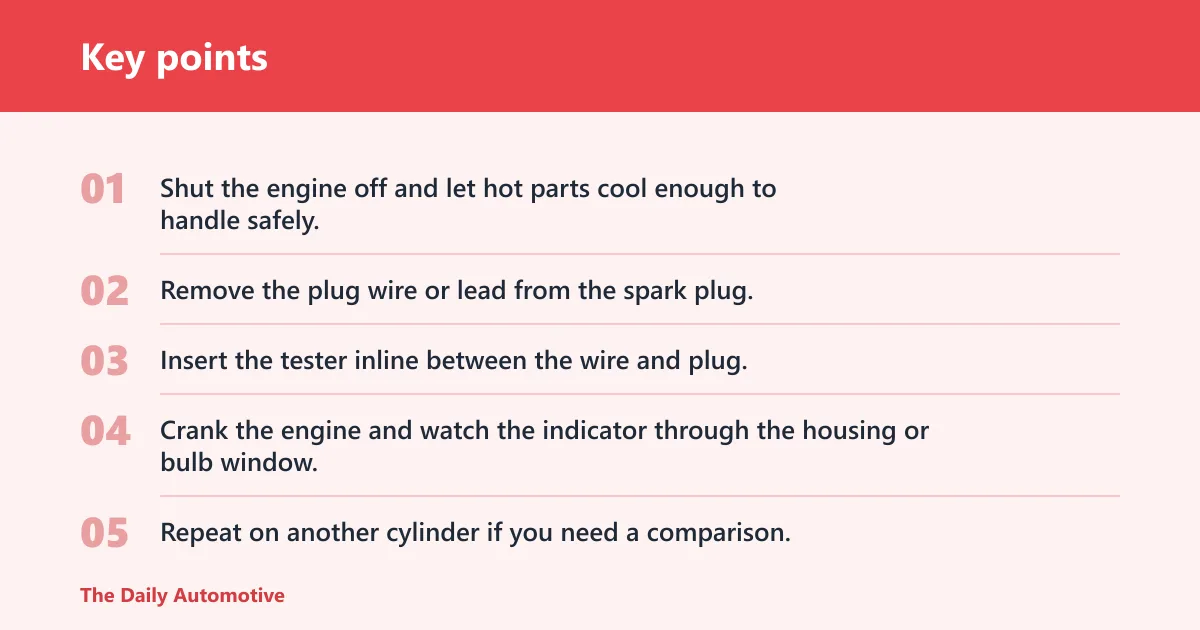

How do you use an inline spark tester?
To use an inline spark tester, disconnect the spark plug wire from the plug, insert the tester between the wire and the plug, then crank the engine while watching for the spark indicator. If the tool lights or flashes, spark is present at that point in the circuit. If it does not, work upstream through the coil, wire, and connector.
Stop and inspect the ignition parts if the spark is absent, weak, or intermittent. A visible spark means the circuit can fire, but it does not prove the plug is healthy under every condition.
- Shut the engine off and let hot parts cool enough to handle safely.
- Remove the plug wire or lead from the spark plug.
- Insert the tester inline between the wire and plug.
- Crank the engine and watch the indicator through the housing or bulb window.
- Repeat on another cylinder if you need a comparison.
Which one should you buy?
If you want the cheapest fast check, buy the SINGARO. If your engine bay is tight or the boot angle varies, buy the Lisle 20610. If you need more diagnostic depth and your plugs fit the stated dimensions, buy the ANCEL SP02.
Say your car has a no-start condition and the plug wire is easy to reach. A simple inline tester is enough to tell you whether spark is making it to the plug. Suppose the misfire only shows up under load, and the plug dimensions fit the ANCEL limits. A dual-hole simulator gives you a better chance of spotting a weak cylinder.
What should I look for when buying a spark plug tester?
Start with ignition layout. Check whether you have accessible plug wires or a coil-on-plug setup before you buy anything else. Then check the boot angle, plug length, and insulator diameter. After that, decide whether you need a quick spark check or a deeper comparison test. Safety shielding, clear visibility, and a heat-resistant housing should also be on the list.
Price matters, but only in context. A very cheap inline tester can be fine for occasional no-spark checks. A more expensive simulator makes sense only if you will use its comparison features often enough to justify the cost.
Will a spark plug tester work on 12V gasoline engines?
Yes, many spark plug testers are meant for 12V gasoline ignition systems, and that is the main use case for the three picks here. The important limit is that some testers exclude diesel and high-voltage systems. Do not assume universal ignition compatibility just because the listing sounds broad.
If the engine is gasoline and the plug fit is correct, you are in the right zone. If it is diesel or another high-voltage setup, confirm compatibility before connecting any tester.
Frequently asked questions
Can spark plug testers detect weak spark or only no-spark conditions?
Some testers mainly confirm spark presence, while others add enough control to help with weak-spark checks. Inline testers are best for no-spark screening. Dual-hole simulators are better when you need to compare spark behavior or see whether the ignition degrades under changing simulated conditions.
Are spark plug testers compatible with motorcycles and lawn mowers?
Yes, many inline testers are suitable for motorcycles and lawn mowers as long as the ignition is a compatible 12V gasoline setup and the plug fit is correct. SINGARO specifically lists cars, motorcycles, lawn mowers, and marine engines. Always confirm the connection style before buying.
What spark tester works best for tight engine bays?
A tester with flexible boot compatibility usually works best in tight engine bays. The Lisle 20610 is the better bet when a straight boot on one vehicle and a 90-degree boot on another would otherwise complicate access. Compact inline testers also help when you only need a quick spark check.
Does the tester need to fit straight and 90-degree boots?
If you work on more than one vehicle, yes, that compatibility is valuable. Straight and 90-degree boots can change how a tester seats and how easy it is to reach the plug. Lisle 20610 explicitly supports both, which lowers the chance of a fit problem in a cramped bay.
