Where To Connect The Pink Wire On A Car Stereo (Easy Fix)

The pink wire on a car stereo harness is typically the illumination wire. It connects to your vehicle’s dimmer switch or parking lights. This allows the stereo display to dim when your headlights or parking lights are turned on, making it easier to see at night.

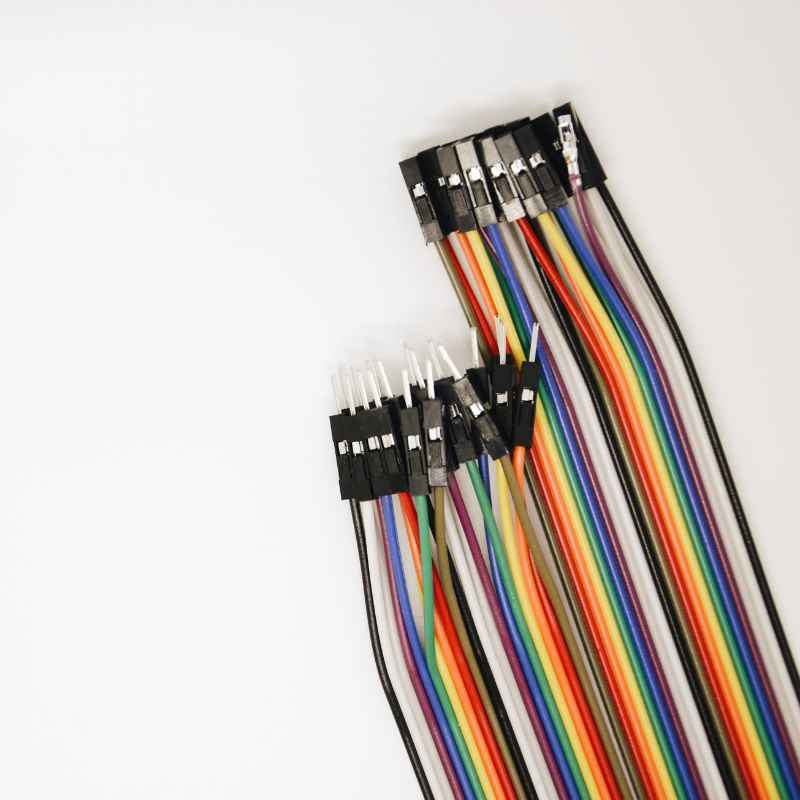

Understanding the Pink Wire: Your Stereo’s Dimmer Control

Let’s break down what that little pink wire is all about. Think of it as your stereo’s personal light switch. When you connect it correctly, it tells your car stereo when it’s dark outside.

This is super helpful. Your stereo screen might be bright and cheerful during the day. But at night, that brightness can be distracting or even make it hard to see the road.

The pink wire solves this. It works hand-in-hand with your car’s own lighting system.

When you turn on your car’s headlights or parking lights, a small voltage flows through a specific wire in your car’s wiring harness. This is usually a dim, soft light. The pink wire on your stereo is designed to pick up on this signal.

When it gets that signal, it tells the stereo’s display to lower its brightness. It’s a simple, smart way to make your stereo more user-friendly in different lighting conditions. Without it, your stereo might stay at its brightest setting all the time.

This feature is often called “dimming” or “illumination” control. It’s not about making the sound louder or quieter. It’s purely about the visual display of the stereo itself.

Many aftermarket stereos have this capability. It’s a small detail, but it makes a big difference in your nighttime driving experience. It also adds a touch of professionalism to the installation, making it look like it came straight from the factory.

It’s important to know that not every car or every stereo will have a pink wire. Some might use a different color wire for illumination. Some older cars might not have this feature at all.

However, if your new stereo has a pink wire, and your car has a matching signal, connecting it is usually a good idea.

Want to learn more about Automotive Parts and Accessories? This post could provide more insights. What Are Car Gauges And What Do They Actually Measure?

My Own Pink Wire Puzzle

I remember the first time I saw a pink wire on a stereo harness. I was working on my old pickup truck. It was late, and I was eager to get the new stereo installed before the weekend.

I had all the other wires sorted out: the power wires, the ground, the speaker wires. Then I saw it. A single pink wire, sticking out, with no obvious home.

I checked the stereo’s manual, but the diagram was a bit vague. It just said “ILL” or “DIM.”

My mind started racing. What if I connect it to the wrong thing? Would it fry the stereo?

Would it mess up my truck’s dashboard lights? A little bit of panic set in. I thought about just tucking it away, ignoring it.

But then I remembered how bright my old stereo was at night. It was like a little beacon in the dark. I knew I’d regret not connecting it.

I decided to do some digging. I pulled out my truck’s wiring diagrams, which felt like deciphering an ancient code. After a lot of searching, I found it.

A wire that carried a signal when the parking lights were on. It was a faint signal, exactly what I needed. Connecting that pink wire felt like a small victory.

When I turned on the parking lights later, my stereo display gently dimmed. It was a perfect, subtle change that made a big difference. It taught me a valuable lesson: even the smallest wires have a purpose.

Discover more interesting content on Automotive Parts and Accessories by reading this post. Do I Need A Battery Isolator For Car Audio? Honest Answer

Where to Find Your Car’s Illumination Signal

So, you’ve identified the pink wire on your stereo. Now, where does it connect in your car? This is where things can vary a bit from vehicle to vehicle.

The goal is to find a wire in your car’s harness that receives power only when your parking lights or headlights are on. Think about where this signal naturally lives in your car’s electrical system.

The most common places to find this signal are related to your car’s dashboard lights or the parking light circuit itself. Often, installers will tap into the cigarette lighter/12V accessory socket wiring. This is because these sockets typically only get power when the ignition is on, and some of them might also have a dimmer function tied to them.

Another good source is often found near the fuse box, specifically on a fuse that powers your dashboard illumination.

You might also find a suitable wire directly behind your car’s factory radio harness. Many factory radios are designed to dim with the dashboard. If you are using an adapter harness for your new stereo, it will often have a designated spot or a separate wire specifically for the illumination signal.

This adapter harness connects your new stereo’s wiring to your car’s factory wiring without cutting into the car’s original wires.

If you are unsure, consulting your car’s specific wiring diagram is the best bet. You can often find these online by searching for your car’s make, model, and year, followed by “wiring diagram.” Look for wires labeled “illumination,” “dash lights,” “panel lights,” or similar. These diagrams can be complex, but they are incredibly detailed and will show you exactly what each wire does.

Another practical approach is to use a multimeter or a test light. With the car’s ignition on and the parking lights or headlights activated, you can carefully test wires in the dashboard or behind the radio. A wire that shows 12V power only when the lights are on is likely your target.

Be very careful when testing wires. Always ensure you are not touching anything you shouldn’t be. It’s best to work with the car’s battery disconnected if you are unsure.

Common Wiring Scenarios and Solutions

Let’s look at a few typical situations you might encounter when dealing with that pink wire. These are based on common car stereo installations.

Scenario 1: Using an Adapter Harness

This is the easiest and most recommended way. Adapter harnesses are designed to plug into your car’s factory radio connector and then provide standard wires for your aftermarket stereo. If your car has an illumination wire and your stereo has a pink wire, the adapter harness will typically have a corresponding wire.

You’ll simply connect your stereo’s pink wire to the adapter harness’s illumination wire. This is usually a simple crimp or twist-and-tape connection.

Scenario 2: No Adapter Harness, Factory Radio Plug Available

If you’re not using an adapter, you’ll need to identify the correct wire directly in your car’s factory radio connector. You’ll need to carefully identify which pin on that connector carries the illumination signal. This is where a wiring diagram becomes invaluable.

Once identified, you’ll tap into that wire (using a wire tap or by soldering) and connect it to your stereo’s pink wire.

Scenario 3: No Obvious Illumination Wire in Car Harness

In some vehicles, especially older ones or base models, there might not be a dedicated illumination wire readily available at the radio harness. In this case, you’ll need to find a suitable source elsewhere in the dashboard. The accessory power outlet (cigarette lighter) is a common place.

You’ll need to tap into the wire that powers the outlet, but only when the ignition is on. Sometimes, this outlet also receives a dimmer signal. Again, testing with a multimeter or test light is key here.

Scenario 4: Stereo Doesn’t Have a Pink Wire

Conversely, some aftermarket stereos simply don’t have an illumination wire. In this situation, there’s nothing to connect to. The stereo display will operate at a fixed brightness.

This is less common with modern units but can happen.

Scenario 5: Pink Wire is Actually for Something Else

While pink is most commonly illumination, very rarely, a manufacturer might use it for another function. Always double-check your stereo’s manual. If it specifies a different use, follow that instruction.

Why Connect the Pink Wire? The Benefits

You might be wondering, “Is it really that important to connect this pink wire?” The short answer is: yes, it’s highly beneficial. Ignoring it means you’re missing out on a key feature designed for your comfort and safety while driving.

1. Reduced Nighttime Glare: This is the primary benefit. A stereo display that’s too bright at night can be a significant distraction.

It can create glare that bounces off the windshield, making it harder to see other cars, road signs, and hazards. Dimming the display makes it more comfortable for your eyes and improves your focus on the road.

2. Improved Night Vision: Your eyes adjust to the darkness when you’re driving at night. A bright screen can ruin that adaptation, making it harder to see in dimly lit areas.

By dimming the stereo, you help your eyes maintain their night vision capabilities.

3. Enhanced Driving Experience: It’s simply a more pleasant experience. You can still see your stereo’s information when you need it, but it doesn’t overpower your view of the road.

It feels more integrated with the car’s overall design and lighting.

4. Looks More Professional: A correctly wired stereo that dims with the car’s lights looks like it belongs. It gives a cleaner, more factory-installed appearance.

It shows attention to detail in the installation.

5. Prevents Unintended Light Issues: While rare, incorrectly connecting the illumination wire could potentially interfere with other dash lights. Connecting it correctly to the appropriate illumination signal prevents this risk.

Think of it like adjusting the mirror in your car. It’s a small adjustment, but it’s there for a reason. The pink wire serves a similar purpose for your stereo’s visual output.

It’s a feature that enhances your driving experience and safety.

What Happens If You Don’t Connect the Pink Wire?

If you choose not to connect the pink wire, or if you can’t find a suitable connection point in your vehicle, your car stereo will still function. It will play music, connect to your phone, and perform all its main audio tasks. The core functionality of the stereo is not dependent on this wire.

However, you will miss out on the illumination dimming feature. This means:

Your Stereo Display Will Be Constant: The brightness of your stereo’s screen will remain the same regardless of whether it’s daytime, nighttime, or twilight. It will likely be at its maximum brightness setting.

Potential for Nighttime Glare: As mentioned, this constant brightness can cause distracting glare at night. This is especially true for stereos with bright LED displays or screens with a lot of white light. You might find yourself squinting or struggling to see the road clearly when the stereo display is too prominent.

Less Integrated Look: The stereo might feel a bit out of place in the dashboard at night, standing out with its un-dimmed glow. It won’t sync with the subtle dimming of your car’s other dashboard lights.

For most people, the benefits of connecting the pink wire outweigh the minor effort required. It’s a simple adjustment that significantly improves the nighttime driving experience. If you’re installing a new stereo and your old one had this feature, you’ll likely notice the difference immediately.

It’s worth noting that some stereos have adjustable brightness settings, but these are manual adjustments. You would have to remember to change them yourself every time you transition from day to night driving. The illumination wire automates this process, making it seamless and effortless.

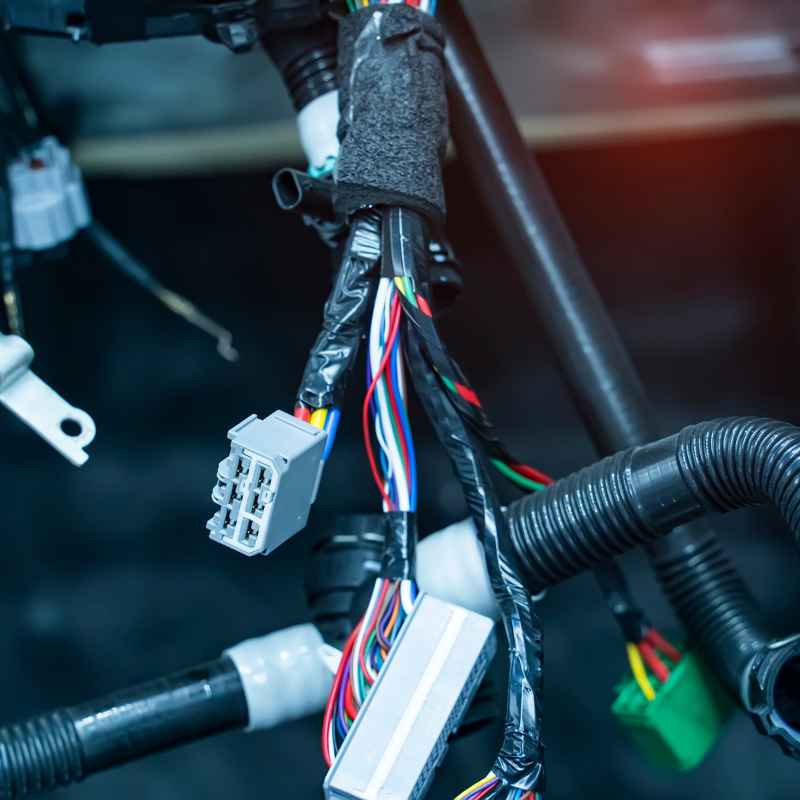

When to Seek Professional Help

While connecting a pink wire is often a straightforward DIY task, there are times when it’s best to call in a professional. If you’re feeling unsure at any point, or if you’ve encountered unexpected issues, don’t hesitate to reach out to a car audio installer.

You’re Uncomfortable with Electrical Work: If working with car wiring makes you nervous, or if you’ve had bad experiences in the past, it’s perfectly okay to let someone else handle it. Car electrical systems can be complex, and a mistake can be costly.

Your Car’s Wiring is Unclear: If you can’t find a clear wiring diagram for your vehicle, or if the wires in your car’s harness don’t match any standard colors or descriptions, it might be time for expert advice. Some European or luxury cars have highly specialized wiring that can be tricky to navigate.

You’ve Tried and Failed: If you’ve attempted the connection and something isn’t working, or if you’ve noticed strange behavior in your car’s electronics since then, a professional can diagnose and fix the problem.

You Want a Guarantee: Professional installers usually offer warranties on their work. This gives you peace of mind knowing that if something goes wrong, it will be fixed at no extra cost.

A professional car audio installation shop has the tools, knowledge, and experience to connect your stereo correctly and safely. They can ensure that all wires, including the crucial pink illumination wire, are connected to the right places without risking damage to your vehicle’s electrical system.

Frequently Asked Questions About the Pink Wire

What does the pink wire on a car stereo do?

The pink wire on a car stereo harness is typically the illumination wire. It is used to dim the stereo’s display when your car’s headlights or parking lights are turned on. This helps reduce glare at night.

Do all car stereos have a pink wire?

No, not all car stereos have a pink wire. Many aftermarket stereos do, as it’s a common feature for dimming. However, some very basic or older models might not include this functionality. Always check your stereo’s manual.

What if my car doesn’t have a pink wire on its harness?

If your car’s factory harness doesn’t have a wire for illumination (or if your new stereo doesn’t have a pink wire), you simply won’t connect that feature. Your stereo will function, but its display brightness won’t change automatically.

Can I connect the pink wire to any wire that gets power?

No, you should not connect the pink wire to just any wire that gets power. It needs to be connected to a wire that specifically receives power when the car’s parking lights or headlights are on. Connecting it to a constant 12V wire will keep it on all the time, and connecting it to the wrong wire could potentially damage your stereo or car’s electrical system.

What happens if I connect the pink wire incorrectly?

Connecting the pink wire incorrectly can lead to a few issues. The most common is that the stereo display will not dim at night. In some cases, it could cause your stereo’s display to malfunction, or it might even interfere with other dashboard lights or electrical systems if a short circuit occurs.

How do I find the correct illumination wire in my car?

The best way is to consult your car’s wiring diagram. You can also use a multimeter or test light to check wires in the dashboard area or behind the factory radio harness. Look for a wire that shows 12V power only when the car’s parking lights or headlights are activated. Adapter harnesses often simplify this by having a labeled illumination wire.

Conclusion

The pink wire on your car stereo might seem small, but it plays a significant role in your nighttime driving comfort and safety. By understanding its purpose as an illumination wire, you can ensure your stereo display dims when it should, reducing glare and making your drives more enjoyable. Whether you’re a seasoned DIYer or just starting, taking the time to connect this wire correctly makes a noticeable difference.

Don’t let a little pink wire be a source of frustration; it’s an easy fix for a better driving experience.
