Red Car with Key Symbol on Nissan Dashboard: What It Means

The red car with a key icon on a Nissan dashboard is the security indicator, and Nissan’s manual says a blinking one means the anti-theft system is working. It becomes a problem only when it stays on while the ignition is on, or when the engine will not start. Other red lights, such as brake, charge and oil pressure, mean something very different and some mean stop driving. This guide sorts them out using the Nissan manuals and pages we read, and says when to call a dealer.

The Red Car with Key Icon: Nissan’s Security Indicator

We read the 2023 Nissan Altima owner’s manual (Nissan USA, PDF) for this section. Nissan’s manuals differ by model and year, so treat it as an example and check the security section of your own manual. In that manual the security indicator light blinks whenever the ignition switch is in the OFF, LOCK or AUTO ACC position, and the manual says this function indicates the NISSAN Vehicle Immobilizer System is operational.

In plain words: a red light that blinks while the car is parked and turned off is the system telling you it is armed. Nothing is wrong. The manual also describes a separate vehicle security (alarm) system, and it says the indicator light blinks every 3 seconds once that security system is armed.

Normal blinking versus a light that stays on

Nissan’s 2023 LEAF manual (Nissan Malta site) uses different words for the same idea. It says the security indicator light blinks with the power switch in LOCK, OFF or ACC, that this shows the NATS (NISSAN Anti-Theft System) is operational, and that a malfunctioning NATS leaves the light on while the power switch is in ON. So the pattern holds across the Nissan manuals we read: blinking when off is the healthy state.

Types Of Red Car Lights

Here is a symbol-by-colour table built from the 2023 Altima manual’s red warning section and the Nissan USA dashboard warning lights page. Names are taken from those pages; the exact symbols and their wording differ by model, so match yours to your manual.

Security Light Versus the Brake, Charge, Oil and Temperature Lights

The quickest way to avoid panic is to ask one question: is the red light a car with a key, or something else? The security indicator is the only one in the table above that is normal when it blinks. Every other red light is a warning that something needs checking, and the first three below can end a trip.

Brake warning light

Nissan’s 2023 Altima manual says this light works for both the parking brake and the foot brake systems. It comes on with the ignition ON when the parking brake is applied, and it warns of a low brake fluid level otherwise. If it comes on while the engine is running with the parking brake not applied, the manual says to stop the vehicle and check the brake fluid level, adding fluid as necessary, and if the level is correct to have the warning system checked at a Nissan dealer. It warns that driving with a faulty brake system could be dangerous. If the fluid is below the MIN mark, the manual says do not drive until the brake system has been checked.

The yellow ABS lamp is a different case: the Nissan USA page says normal braking still works if ABS fails, but the anti-lock function is turned off. Our guide on whether it is safe to drive with the ABS light on covers that lamp.

Charge warning light

The manual says that if the charge light comes on while the engine is running, the charging system may not be functioning properly. Turn the engine off and check the generator belt. If the belt is loose, broken or missing, or the light stays on, have the system checked, and the manual says not to continue driving with a loose, broken or missing belt.

Engine oil pressure light

This is the one that most often means stop right now. Nissan’s page and the Altima manual use almost the same words: the light warns of low engine oil pressure, and if it flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call a Nissan dealer or other authorized repair shop. The manual adds a point many drivers miss: the light is not designed to indicate a low oil level, so you use the dipstick to check the level.

Engine temperature

The 2023 Altima manual shows engine temperature on a gauge in the instrument panel rather than in its list of red lights. It says that if the gauge is over the normal range you should stop the vehicle as soon as it is safe, and that continued operation of an overheated engine may seriously damage it. Its overheating steps warn never to remove the radiator or coolant reservoir cap while the engine is hot, because pressurized hot water can spurt out and cause serious injury. For the cooling-off wait before topping up, see our guide on how long to let a car cool before adding coolant.

Immobilizer, Key Not Recognised and No-Start

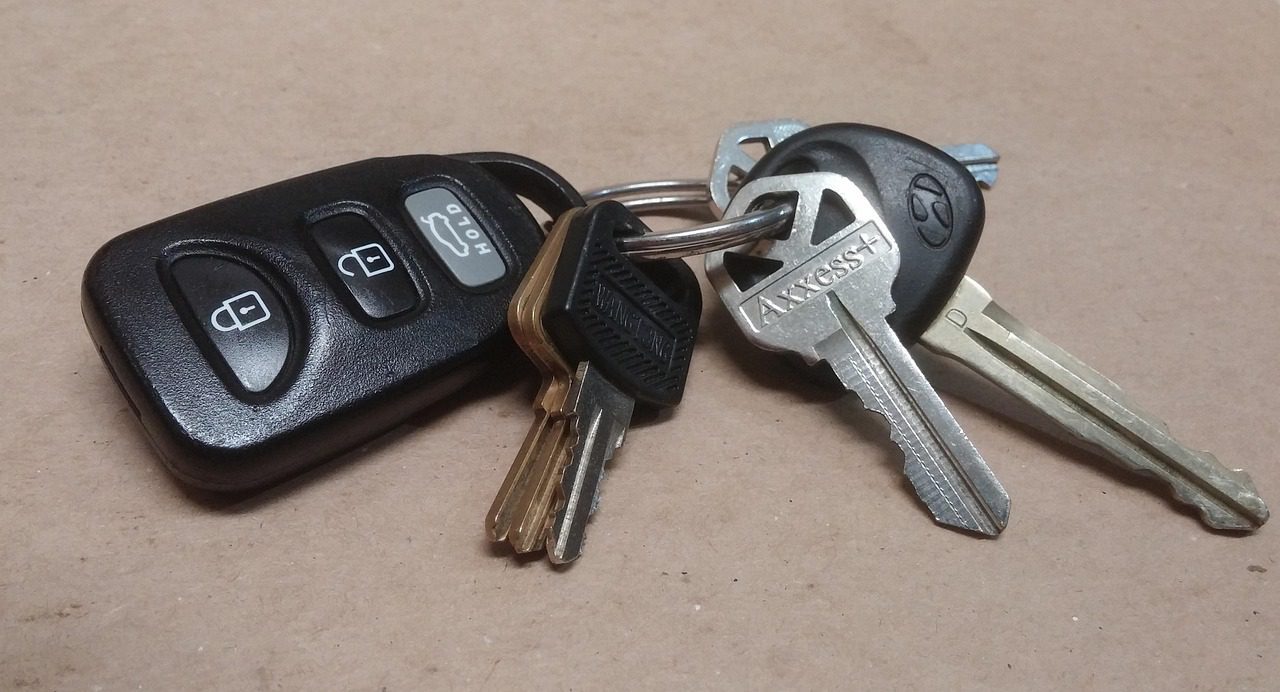

When people search for the red car light, many are really stuck with a car that will not start. In the Altima manual the NISSAN Vehicle Immobilizer System will not allow the engine to start without a registered key. Our guide on whether your car key has a chip explains why the key itself matters.

Messages you may see with the security light

If another key or device is blocking the start

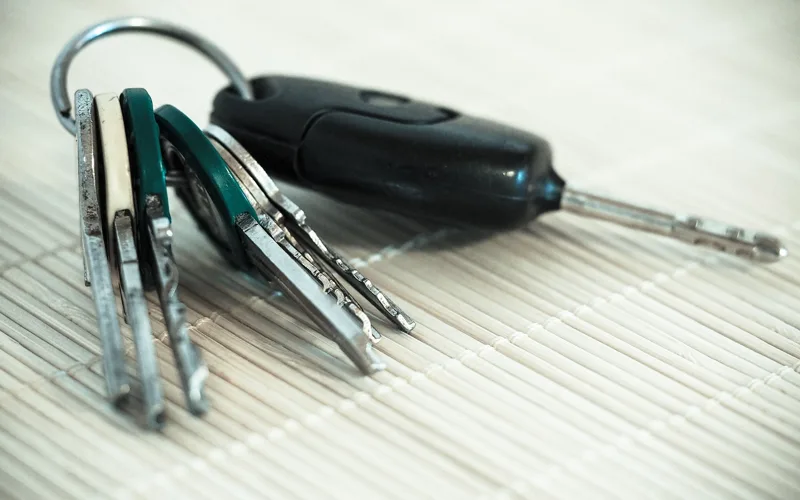

Nissan’s manual describes one specific fix. If the engine fails to start with a registered key, for example when interference is caused by another registered key, an automated toll road device or an automatic payment device on the key ring, restart the engine like this:

1. Leave the ignition switch in the ON position for approximately 5 seconds.
2. Place the ignition switch in OFF or LOCK and wait approximately 10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device that may have caused the interference separate from the registered key.

If the no-start returns, the manual recommends putting the registered key on a separate key ring. If the light still stays on or the engine will not start, the manual says to seek service for the immobilizer as soon as possible, bring all the registered keys you have, and visit a NISSAN dealer.

Weak key battery and the backup start

A weak Intelligent Key battery is a common, cheap thing to rule out before assuming a fault. The manual says to replace the battery when Key Battery Low appears. If the battery is discharged or interference stops the key working, the Altima manual gives this backup start: shift to P (Park), firmly apply the foot brake, touch the ignition switch with the Intelligent Key (a chime sounds), then push the ignition switch while pressing the brake within 10 seconds of the chime. Our step-by-step guide on how to change a car key battery covers opening the key.

There is no safe do-it-yourself way to bypass an immobilizer, and we do not describe one. Nissan’s own advice is dealer service with all registered keys. For a blinking-light walkthrough on other makes too, see what to do when the anti-theft light is blinking and the car won’t start.

Steps To Take When Red Light Appears

Use this order, which follows the manuals and Nissan pages quoted above. It is general guidance, not a diagnosis.

1. Identify the light. Is it the car with a key, a brake symbol, a battery symbol, an oil can, an air bag or a message on the display? Use your owner’s manual’s indicator section.
2. If it is the security indicator blinking with the car off, do nothing. That is the normal state.
3. If it is brake, charge or oil pressure, move to a safe place and stop. For oil pressure Nissan says stop the engine immediately. For brakes, if fluid is below MIN, do not drive.
4. If it is the security indicator staying on or the car will not start, check you are using a registered key, move other keys and toll or payment devices away, try the interference steps once, and replace a weak key battery.
5. If the light remains, stop troubleshooting and call a Nissan dealer or a tow. Bring every registered key.
6. Never assume a red light is a sensor glitch. The manuals treat these lights as warnings that need checking.

Keep reading

• What Does the Red Car Light Mean in a Nissan: Essential Guide
• Nissan March Red Warning Light Appearing? Here’S What It Means
• What Is a Red Key for Cars Used For?

Frequently Asked Questions

What Triggers The Red Car Light In A Nissan?

If it is a red car with a key or lock, it is the security indicator: it blinks when the ignition is off to show the anti-theft system is working, per Nissan’s manual, and stays on with the ignition ON if the immobilizer system is malfunctioning. Other red lights, such as brake, charge and engine oil pressure, report separate problems.

Is The Red Car Light Dangerous?

The blinking security light is not dangerous. Red brake, charge and oil pressure lights are warnings: Nissan says to stop the engine immediately for low oil pressure, to check the generator belt for the charge light, and to check the brake fluid for the brake light. Ignoring them can lead to serious damage or unsafe braking.

How To React To A Red Car Light?

First identify which light it is. If it is the blinking security indicator, do nothing. If it is a brake, charge or oil pressure light, stop in a safe place and follow your manual. If the security light stays on or the car will not start, see a Nissan dealer with all registered keys.

Can I Drive With The Red Car Light On?

Not with a red oil pressure light: Nissan says to pull off the road in a safe area and stop the engine immediately. Not with a loose, broken or missing generator belt, and not if the brake fluid is below MIN. A security light that is merely blinking with the car off needs no action. If the engine starts and the light stays on, have it checked soon.

Conclusion

The red car with a key light on a Nissan is a status light, and a blinking one is good news. The red lights to respect are brake, charge, oil pressure and air bag, and a security light that stays on or a car that will not start belongs with a Nissan dealer, not a workaround. Check your own manual, since symbols and wording differ by model and year.
