Which Fuse Is For The Radio In A Car: Essential Guide
Which fuse is for the radio in a car? It’s usually labeled “RADIO,” “AUDIO,” “ACC” (Accessory), or “CIGAR” in your car’s fuse box. Finding the right fuse is straightforward with this guide, ensuring your car’s sound system gets the power it needs.
Is your car radio on the fritz? Maybe it went out suddenly, or perhaps you’re trying to install a new one. Whatever the reason, knowing which fuse protects your radio is a lifesaver. It can seem a bit daunting with all those little fuses in the fuse box, but don’t worry! I’m here to help you navigate this, just like I do with all your car care questions. We’ll walk through this together, step by simple step, so you can get your tunes back on the road in no time. Let’s find that radio fuse!
Why Your Car Radio Needs a Fuse
Fuses are like the unsung heroes of your car’s electrical system. Think of them as tiny, sacrificial guardians for your electronic components. Your car’s radio, like any other electrical device, needs a specific amount of power to function. If something unexpected happens – like a short circuit, a power surge, or even just a faulty connection – too much electricity can flow to the radio. This excess electrical energy can fry your radio’s delicate internal components, leading to expensive repairs or a complete replacement. That’s where the fuse comes in.
A fuse contains a thin piece of metal wire designed to melt and break when the electrical current flowing through it exceeds a safe level. When this wire melts, it creates a gap in the circuit, stopping the flow of electricity before it can damage the radio. So, a blown fuse is actually a good thing – it means the fuse did its job protecting your radio!

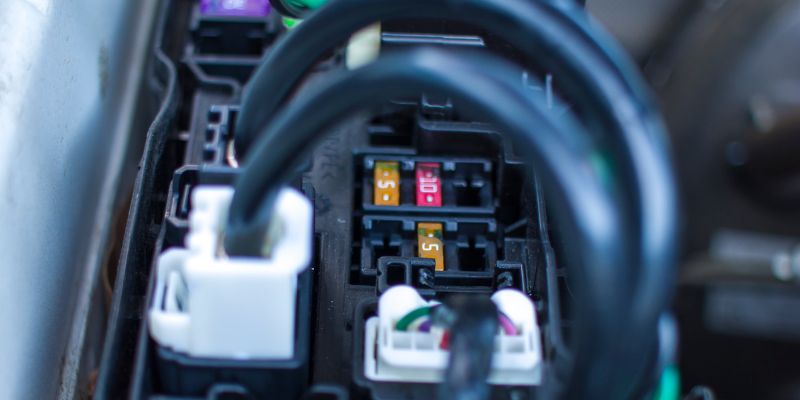

Common Fuse Box Locations: Finding the Guarded Gateway
Before we can identify the radio fuse, we need to locate the fuse box (or boxes!). Most modern cars have at least two main fuse box locations. Knowing where to look is the first step to a successful fuse check—and potentially a quick fix!
1. Under the Dashboard
This is the most common spot. You’ll usually find it on the driver’s side, tucked away near the steering column, the pedals, or the side of the dashboard. Sometimes, it’s behind a small pull-out panel or a cover that snaps off.

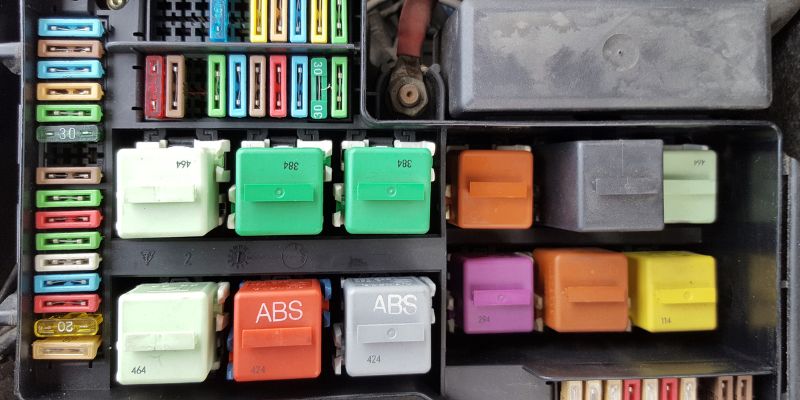

2. Under the Hood
Your car also likely has a fuse box located in the engine compartment. This box typically houses fuses and relays for larger electrical components that require more power, like the headlights, radiator fan, and the starter motor. It’s usually in a black plastic box with a lid.
3. Other Possible Locations
While less common, some vehicles might place a fuse box in the glove compartment, under the passenger seat, or in the trunk. Always consult your owner’s manual if you can’t find the primary locations.
How to Identify the Radio Fuse: Decoding the Legend
Once you’ve found your fuse box, you need to figure out which fuse is specifically for your radio. This is where your car’s owner’s manual becomes your best friend. Every fuse box has a diagram or a legend that tells you what each fuse is for.
Consulting Your Owner’s Manual
Your owner’s manual is the definitive guide for your specific vehicle. It will have a detailed map of the fuse box, showing the location and purpose of each fuse. If you’ve misplaced your manual, you can often find a digital version on the manufacturer’s website by searching for your car’s make, model, and year.
Reading the Fuse Box Diagram
The fuse box lid itself often has a diagram imprinted on the inside. This diagram is a mirror image of the fuse layout. If you can’t find the diagram on the lid, look for a sticker on the fuse box or refer to your owner’s manual.
Common Labels for the Radio Fuse
While “RADIO” is the most straightforward label, it’s not always that simple. Here are some common labels you might see that indicate the radio fuse or a circuit that powers the radio:
- RADIO: This is the most obvious – it directly refers to the car’s audio system.
- AUDIO: Similar to RADIO, this label covers the entire audio system, including the head unit and speakers.
- ACC (Accessory): This fuse often powers various accessories that run when the ignition key is in the “Accessory” position (when the engine isn’t running but accessories can be used). This can include the radio.
- CIGAR (Cigarette Lighter): In many cars, the cigarette lighter (even if you don’t smoke) is on the same circuit as the radio or other accessories. If your radio isn’t working, and the lighter is too, this fuse is often the culprit.
- INT (Interior): Sometimes, the radio is grouped with other interior lights and accessories under a general “INT” fuse.
- POWER OUTLET/12V: Similar to the cigarette lighter, this fuse can power various accessories, potentially including the radio.
- DISPLAY: In some newer vehicles, the infotainment screen powering the radio might be on a fuse labeled “DISPLAY.”
It’s important to note that the exact labeling can vary significantly between car manufacturers and even between different models of the same manufacturer. Always cross-reference with your owner’s manual for the most accurate information.
Tools You’ll Need for the Job: Simple Essentials
The good news is that checking and replacing a fuse is a simple task that requires very few tools. With these basics, you’ll be ready to go.
Here are the essentials:
- Owner’s Manual: As mentioned, this is your primary guide.
- Fuse Puller: Most fuse boxes come with a small plastic tool designed to grip and pull fuses. If yours is missing, needle-nose pliers can work, but be very careful not to touch multiple fuses or metal parts with the pliers, as this can cause a short circuit.
- Replacement Fuses: It’s crucial to have the correct amperage replacement fuses on hand. They are inexpensive and widely available at auto parts stores, gas stations, and even many supermarkets.
- Flashlight or Headlamp: Fuse boxes are often in dim locations, making a light source essential for good visibility.
Step-by-Step Guide: Replacing a Blown Fuse
Now that you know what to look for and have your tools, let’s get to the actual replacement. Follow these simple steps carefully.
- Turn Off the Engine and Ignition: Safety first! Make sure your car’s engine is completely off and the ignition key is removed or in the “Off” position. This prevents any electrical shock or further damage.
- Locate the Fuse Box: As discussed, find the relevant fuse box, usually under the dashboard or hood.
- Consult the Diagram: Open the fuse box (carefully pry off the lid if necessary) and find the diagram. Locate the fuse corresponding to your radio using the labels we discussed and your owner’s manual.
- Visually Inspect the Fuse: Gently pull out the suspected radio fuse using the fuse puller or needle-nose pliers. Hold the fuse up to the light. Look at the metal wire inside. If the wire is broken or looks melted, the fuse is blown. If the wire looks intact, the fuse is likely good, and the problem might be elsewhere.
- Use a Test Light (Optional but Recommended): For a more definitive check, you can use a non-contact voltage tester or a multimeter. Touch the probe to each metal tab of the fuse. If the light on the tester doesn’t illuminate (or the multimeter shows no continuity), the fuse is blown.
- Replace with the Correct Amperage Fuse: If you confirmed the fuse is blown, get an identical replacement fuse. The amperage (measured in amps, e.g., 10A, 15A, 20A) is printed on top of the fuse. Never use a fuse with a higher amperage rating than what was originally installed – this is a serious fire hazard. Using a lower amperage fuse will likely cause it to blow immediately.
- Insert the New Fuse: Push the new fuse firmly into its slot. Ensure it is seated correctly and flush with the other fuses.
- Close the Fuse Box: Replace the fuse box cover securely.
- Test the Radio: Turn your car’s ignition to the “Accessory” or “On” position and try to turn on your radio. If the new fuse was the problem, your radio should now be working!
Troubleshooting Common Fuse Issues
Sometimes, replacing a fuse doesn’t solve the problem, or the new fuse blows immediately. Here are some common issues and what they might mean:
The New Fuse Blows Again Instantly
If a new fuse blows the moment you turn on the radio or start the car, it means there’s a more significant electrical problem. This usually indicates a short circuit: a wire is likely frayed or damaged, and its bare metal is touching another wire or a metal part of the car. This can happen due to wear and tear, vibration, or a previous repair. You’ll likely need professional help to trace and fix the short circuit.
The Radio Still Doesn’t Work, but the Fuse Looks Good
If the fuse for your radio looks perfectly fine and you’ve even tried a new one, the issue might not be a blown fuse. Other potential causes include:
- Faulty Radio Unit: The radio itself could be damaged or have an internal failure.
- Wiring Issues: There might be a loose connection in the wiring harness going to the radio, or a break in the wire somewhere along its path.
- Blown Fuse in a Different Circuit: In some vehicles, the radio might be powered by a fuse in a secondary fuse block or on the back of the radio itself.
- Problem with the Amplifier (if applicable): If your car has an external amplifier, that component might be the issue, and it could have its own fuse.
Can I Use a Higher Amp Fuse?
Absolutely not! This is critical for safety. Using a fuse with a higher amperage rating than specified is extremely dangerous. The fuse is designed to protect the wiring and the component from overheating. A higher amp fuse will allow too much current to flow, likely causing wires to overheat, melt their insulation, and potentially start a fire. Worse, it can permanently damage the radio or other components without the fuse ever blowing.
Fuse Amperage Explained: What Those Numbers Mean

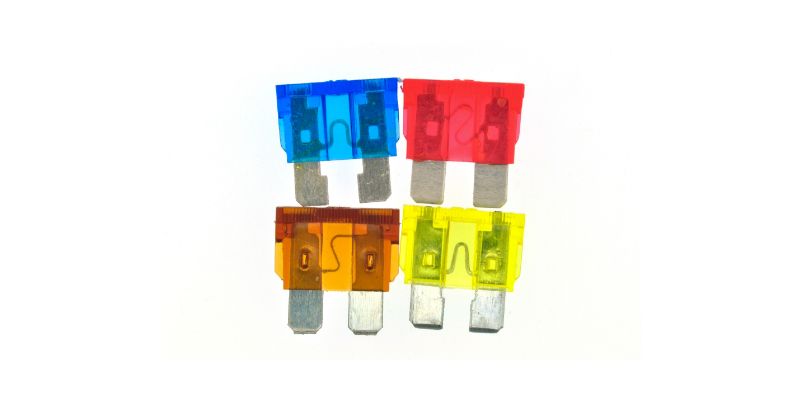

Fuses are differentiated by their amperage rating, indicated by a number and the letter “A” (e.g., 5A, 10A, 15A, 20A, 25A, 30A). This number tells you the maximum amount of electrical current (measured in amperes or amps) that can flow through the fuse before it will blow.
The amperage ratings are crucial for protecting your car’s electrical system. The manufacturer designs the circuits with specific wire gauges and fuse ratings to handle a certain load. Here’s a general idea of fuse types and their common uses:
| Fuse Type | Amperage (Amps) | Common Uses in Vehicles |
|---|---|---|
| Low Profile Mini (APM/ATM) | 2A, 3A, 4A, 5A, 7.5A, 10A | Interior lights, dashboard indicators, sensors, computer modules, small accessories. |
| Standard Mini (ATO/ATC) | 5A, 7.5A, 10A, 15A, 20A, 25A, 30A | Radios, power windows, door locks, cigarette lighters, horn, wipers, fuel pump. |
| Standard Maxi | 20A, 25A, 30A, 40A, 50A, 60A | Headlights, cooling fans, starter motors, ABS systems, high-power circuits. |
| Low Profile Maxi | 30A, 40A, 50A, 60A, 70A, 80A | Similar to standard Maxi but in a smaller physical size. |
| JCase | 20A, 30A, 40A, 50A | Modern vehicles for higher current applications like power seats, sunroofs. |
The fuse for your radio is typically a standard mini fuse, most commonly rated between 10A and 20A, but this can vary. Always check your owner’s manual for the precise rating and type.
When to Seek Professional Help
While replacing a blown fuse is a simple DIY task, there are times when it’s best to call in a professional mechanic. If any of the following apply, it’s time to put down the tools and head to a service center:
- New Fuse Blows Immediately: As discussed, this points to a short circuit or other serious electrical fault.
- Multiple Fuses Blow Continuously: If you find multiple fuses are blowing, it indicates a systemic electrical problem that needs expert diagnosis.
- You Can’t Locate the Correct Fuse: If your owner’s manual is unclear or you can’t find the fuse box, a mechanic can quickly identify it.
- The Problem Persists After Fuse Replacement: If the radio still doesn’t work after replacing the fuse, the issue lies elsewhere in the system.
- You’re Uncomfortable or Unsure: Don’t push yourself if you’re not feeling confident. Driving a car with electrical issues can be unsafe, and a professional can handle it efficiently. Many mechanics offer quick diagnostic services for electrical problems. For instance, the National Highway Traffic Safety Administration (NHTSA) provides valuable safety information for all vehicle owners.
A skilled technician has specialized diagnostic equipment and the experience to pinpoint complex electrical issues, guaranteeing a safe and correct repair.
Frequently Asked Questions (FAQs)
Q1: How do I know if my car radio fuse is blown?
A1: You’ll know the fuse is blown if your radio suddenly stops working, and all you typically see is a broken metal filament inside the fuse. If your radio was working fine and then just died, a blown fuse is a prime suspect.
Q2: Can I use a fuse from another part of my car for the radio if it’s blown?
A2: Only if it’s the exact same type and amperage rating. Pulling a fuse from a different circuit (like for the headlights or windshield wipers) could cause those systems to fail if the radio fuse blows again, or it could lead to damage if the original fuse had a different amperage. Always match the replacement fuse to the original.
Q3: My radio works, but the display screen is blank. Which fuse is it?
A3: In many cars, the display is powered by the same fuse as the radio. However, some newer vehicles might have separate fuses for the audio functions and the display. Check your owner’s manual for specific labels like “DISPLAY” or “INFOTAINMENT.”
Q4: What if my car doesn’t have a fuse labeled “RADIO”?
A4: Look for fuses labeled “AUDIO,” “ACC” (Accessory), “CIGAR,” “POWER OUTLET,” or fuses that power other accessories that turn on with the ignition key in the accessory position. Your owner’s manual is the best resource for identifying these.
Q5: How can I check a fuse without removing it?
A5: Some vehicles have a small indicator light next to each fuse in the fuse box that illuminates when the fuse is blown. Otherwise, a non-contact voltage tester can be used to quickly check if a fuse is getting power on both sides without removing it. Touch the tester to the metal prongs on top of the fuse.
Q6: Can a blown fuse affect other car functions besides the radio?
A6: Yes. Depending on how the electrical system is designed, a single fuse might protect multiple components. If you discover other accessories also aren’t working alongside the radio, it’s possible they share the same fuse or are on a related circuit.
Conclusion: Back to Your Beats!
There you have it! We’ve journeyed through understanding fuses, locating them, and identifying the one that powers your car’s radio. It’s empowering to know that with a little guidance, you can tackle what might seem like a daunting car repair. Remember, a blown fuse is simply a guardian doing its job to protect your car’s sensitive electronics.
Always prioritize safety by turning off the engine. Use your owner’s manual as your trusty map and
